£22.26
excl. VAT
£26.71 incl. VAT
£26.71
incl. VAT
£22.26 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details
| Connection 1, thread diameter | 1-1/16 Inch |
|---|---|
| Connection 1, thread type | JIC |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 31.5 mm |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 center to end distance | 43 mm |
| Connection no 1 diameter | 1/2 Inch |
| Connection no 1 threads per inch | 12 |
| Max working pressure | 280 BAR |

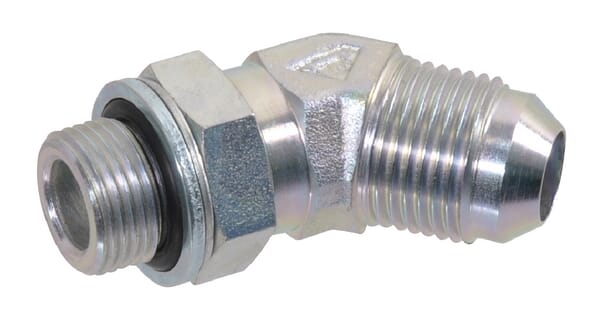

| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37° cone side is UNF in accordance with ANSI, Screw-in couplings, Adjustable, 45° |
| Series connection 1 | 10L |
| Shape | Elbow 45° |
| Unit | Each |
Logistics
| EAN | 8719607040860 |
|---|---|
| Unit of measure | EA |
| Weight | 266 g |
| Dimensions | 90 × 53 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000253156

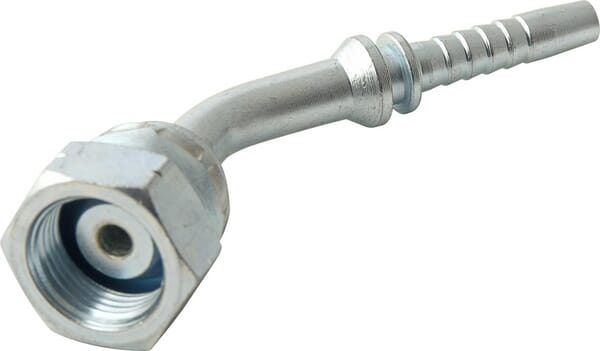

Alfagomma Insert F NS-DN32-1.1/4" BSP 45 DKRNS322045G2
£37.53 excl.
£45.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253096
Alfagomma Insert F NS-DN16-20S-M30X2 45 DKOSNS163045G2
£19.70 excl.
£23.64 incl.
In stock
Expected to ship on Thursday 17 September
BPA000343795
Alfagomma Insert DN13-1/2 BSP-45° PFN13845
£3.33 excl.
£4.00 incl.
In stock
Expected to ship on Thursday 17 September
BPA000358800

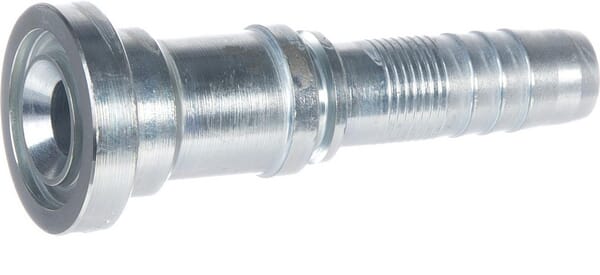

Alfagomma Insert NS-DN20-flange diameter 47,6 SFSNS2016G2
£18.00 excl.
£21.60 incl.
In stock
Expected to ship on Thursday 17 September
BPA000341415
Alfagomma Insert DN13-M22x1.5-15L PR1315
£2.02 excl.
£2.42 incl.
In stock
Expected to ship on Thursday 17 September
BPA000343935

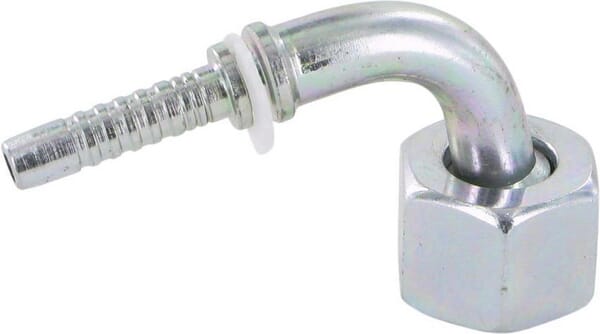

Alfagomma Insert DN06-20x1,5-gaz-90° PGF62090
£10.02 excl.
£12.02 incl.
In stock
Expected to ship on Thursday 17 September
Recently viewed
Free shipping
BPA000145957
Kuhn Set Of Oil Seals 58826300
£244.90 excl.
£293.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000022568

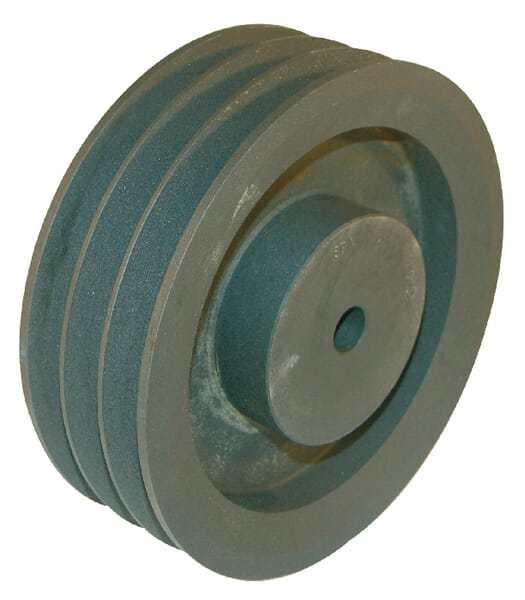

Kramp V-belt pulley 3 groove B or SPB diameter 97 mm 090B3
