£36.78
excl. VAT
£44.14 incl. VAT
£44.14
incl. VAT
£36.78 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Approval | MSHA |
|---|---|
| Bend radius | 430 mm |
| Burst pressure | 500 BAR |
| DN | 40 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 38.1 mm |
| Hose outside diameter | 50.9 mm |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 125 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Number of plies | 2 |

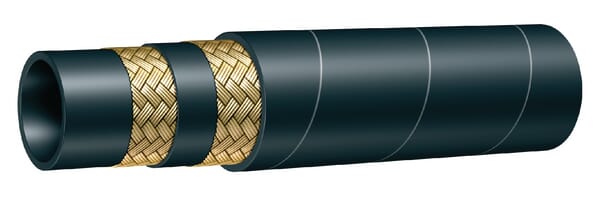

| Product details | Hydraulic rubber compact hose with 2 braided steel wire layers of high tensile strength, Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions, Available by the metre, Available on 50-metre reel, up to 1/2", Available on 25-metre reel, up to 3/4", Always consult the latest press dimensions tables, see downloads at the bottom of each web page, For longer single-piece lengths, please contact our sales department |
| Pros | High operating pressure, Small bending radius, Extremely wear-resistant outer coating (15x vs standard), Outer coating resistant to ozone and oil |
| Qty. Rounding | 0.01 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 1.97 kg/m |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 151 g |
| Dimensions | 1000 × 40 × 40 mm |
| Dangerous goods | No |
You might also like

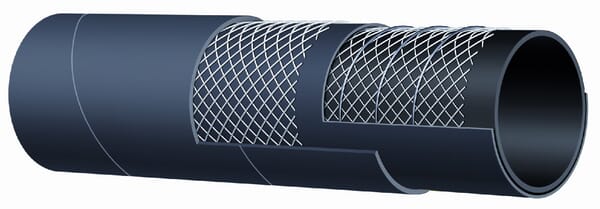

BPA000152469
Alfagomma Suction/pressure hose SAE100-R4-DN25 604AA25
£14.75 excl.
£17.70 incl.
Backorder available
Usually ships within 3–8 weeks

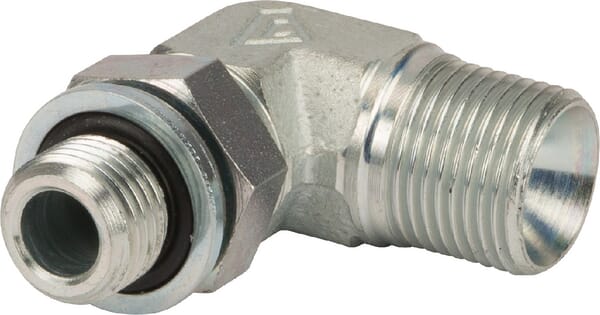

BPA000316241
Alfagomma Adaptor 90 1/4 x 3/8 BSP MMI900406K
£12.87 excl.
£15.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000342934

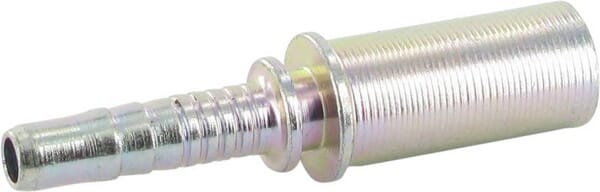

Alfagomma Insert DN6 (1/4") - diameter 12 mm standpipe PT612
£1.82 excl.
£2.18 incl.
In stock
Expected to ship on Friday 18 September

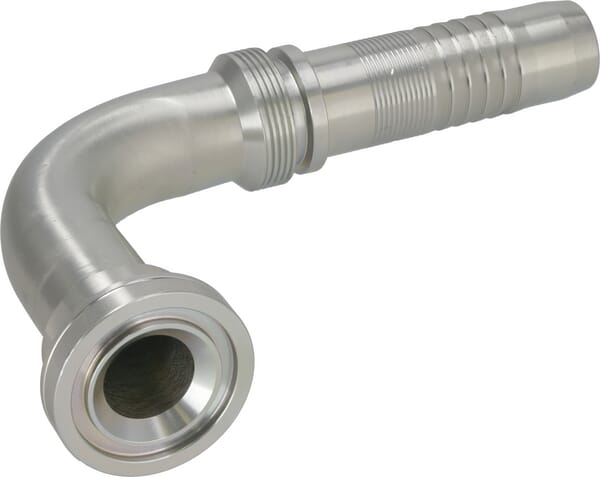

BPA000358819
Alfagomma Insert NS-DN32-flange diameter 54 90 SFSNS322090120G2
£40.14 excl.
£48.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000343360
Alfagomma Insert DN08-diameter 12mm PU812
£1.64 excl.
£1.97 incl.
In stock
Expected to ship on Friday 18 September

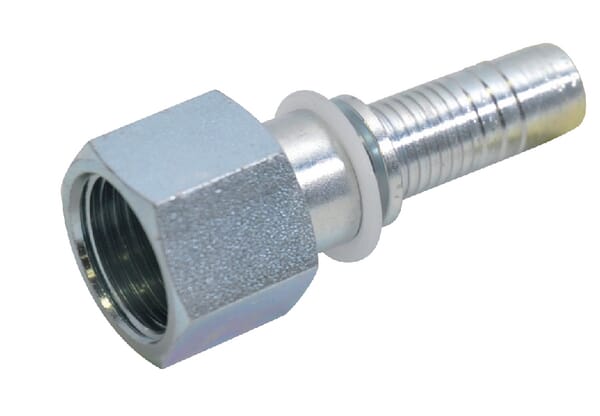

BPA000338483
Alfagomma Insert DN13-1/2 BSP Box 20 pcs PF138P020
£32.95 excl.
£39.54 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed

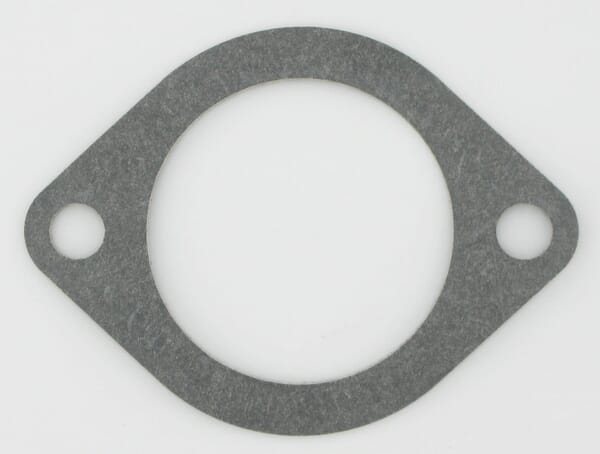

BPA000224745
Massey Ferguson (AGCO) Thermostat gasket ACX3402230
£16.75 excl.
£20.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329276
Kramp O-ring 18.5x2.5mm 70 shore 10x OR1850250P010
£1.98 excl.
£2.38 incl.
In stock
Expected to ship on Friday 18 September
BPA000237026
GLT/LHG Plain bearing bush 30x34x26mm BB30344226PTFE
£2.65 excl.
£3.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

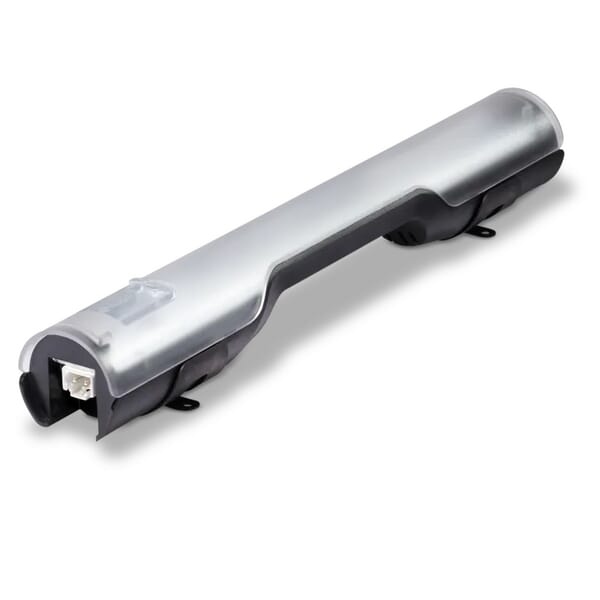

BPA000179903
Finder LED panel light 600 lumens 110-240AC/DC/6W 7L4302302200
£145.95 excl.
£175.14 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

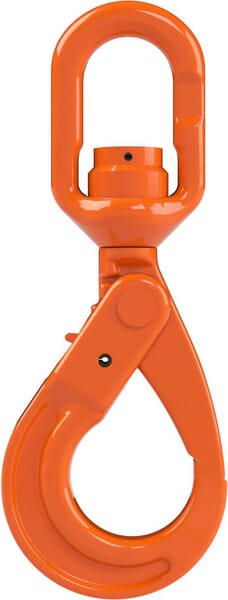

BPA000076248
Rema Swivel safety hook RSBS G10, 13mm 2646113
£184.87 excl.
£221.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000145988
Kuhn Set Of Oil Seals 58842200
£222.21 excl.
£266.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000393182
Burnett & Hillman Adaptor M/M 3/4 BSP x M26 VNBM1226
£4.60 excl.
£5.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000372426

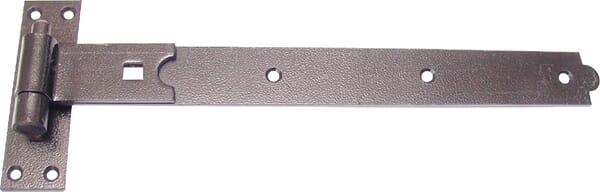

Unbranded Straight Hook and Bands 350mm 14" Black TO8296B
£8.21 excl.
£9.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000310529

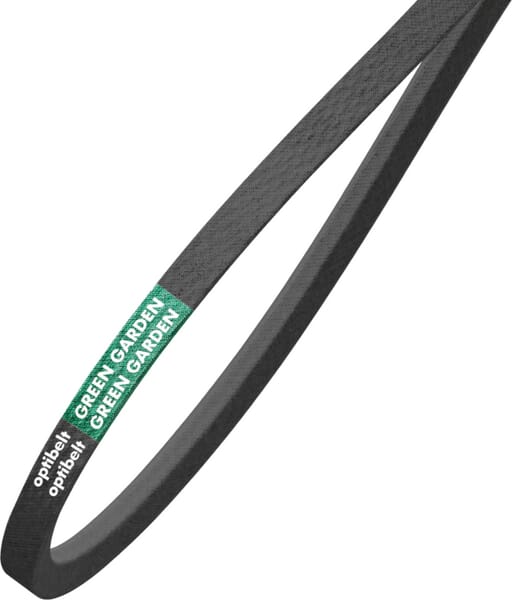

Optibelt V-belt 1/2", 13x1531mm ID LG2000058
