£23.84
excl. VAT
£28.61 incl. VAT
£28.61
incl. VAT
£23.84 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

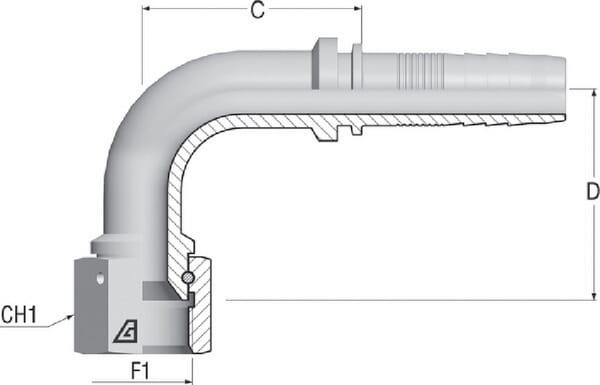

| CConnection centre to insert distance | 59.1 mm |
|---|---|
| Cone angle | 37 ° |
| Connection 1, type | Hose end |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | JIC |
| Connection 2, type | Swivel nut |
| Connection 2, type code | DKJ |
| Connection 2, type - male/female | Female |
| Connection no 1 diameter | 3/4 Inch |
| Connection no 2 wrench size | 32 mm |
| DConnection 2, centre to end distance | 57 mm |
| HConnection no 1 center to end distance | 57 mm |

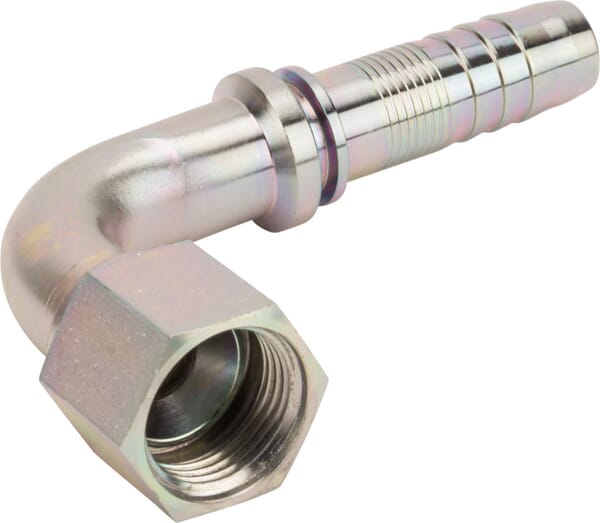

| Long description | Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses. |
| Material | Steel |
| Product details | The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses., With these press fittings, there is no need to skive the inner and outer casing. |
| Pros | Press fittings help ensure faster and easier hose assembly and help to save costs., Processing produces less dirt, smell and waste., No special tool needed to skive the hose. |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 329 g |
| Dimensions | 130 × 32 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000247709

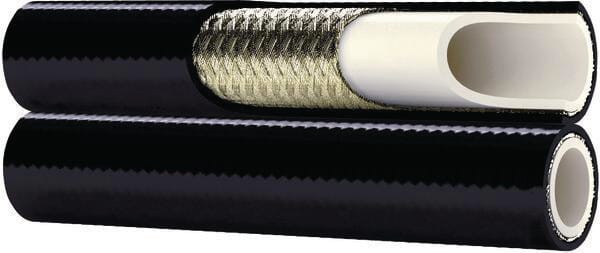

Alfagomma TWB hose twin 1/4 CR866A
£11.14 excl.
£13.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253107

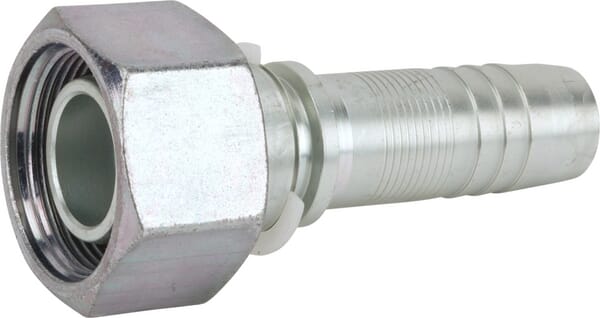

Alfagomma Insert F NS-DN25-25S-M36x2 DKOSNS2536G2
£20.85 excl.
£25.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000336414

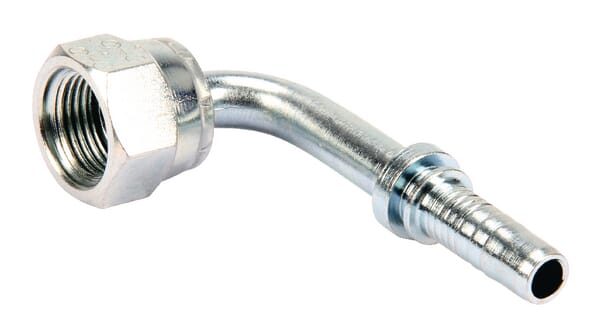

Alfagomma Swage coupling DN06-7/16-UNF-90° PA6790S
£3.48 excl.
£4.18 incl.
In stock
Expected to ship on Thursday 17 September
BPA000358600

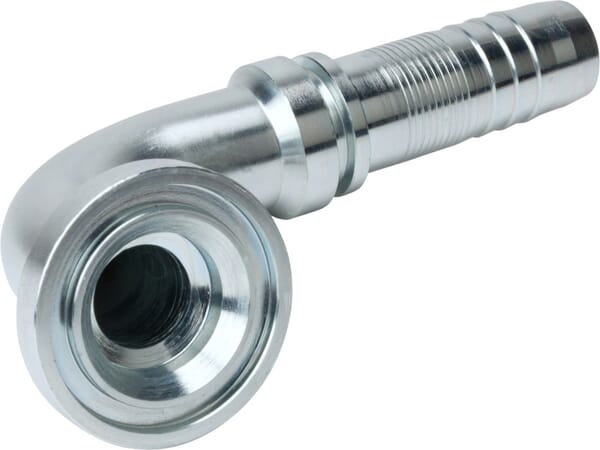

Alfagomma Insert NS-DN20-flange diameter 38.1 90 SFLNS201290G2
£19.05 excl.
£22.86 incl.
In stock
Expected to ship on Thursday 17 September
BPA000343795

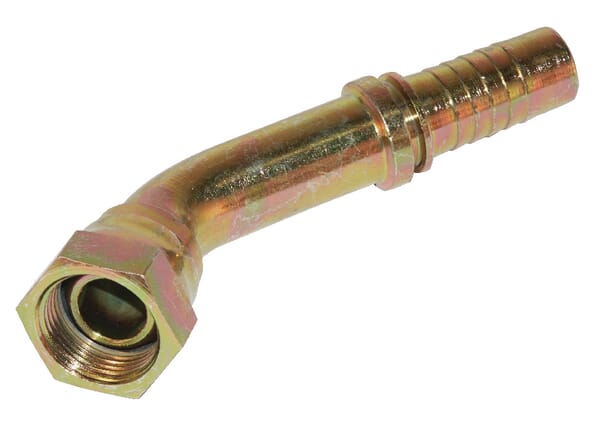

Alfagomma Insert DN13-1/2 BSP-45° PFN13845
£3.33 excl.
£4.00 incl.
In stock
Expected to ship on Thursday 17 September
BPA000338563
Alfagomma Insert DN06-1/8 BSP PF62
£2.58 excl.
£3.10 incl.
In stock
Expected to ship on Thursday 17 September
Recently viewed
BPA000048099

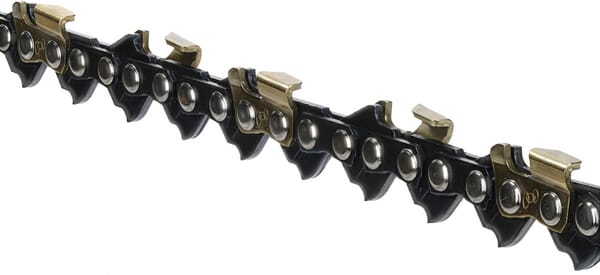

Kramp Saw chain 1/4" 1.1mm 72DL 1411SB72KR
