£47.00
excl. VAT
£56.40 incl. VAT
£56.40
incl. VAT
£47.00 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 61.2 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 3/4 Inch |
| DFlange outside diameter | 47.6 mm |
| Flange standard pressure series | 6 |
| Flange thickness | 9.53 mm |
| HConnection 2, centre to end distance | 100 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 517 g |
| Dimensions | 145 × 110 × 50 mm |
| Dangerous goods | No |
You might also like

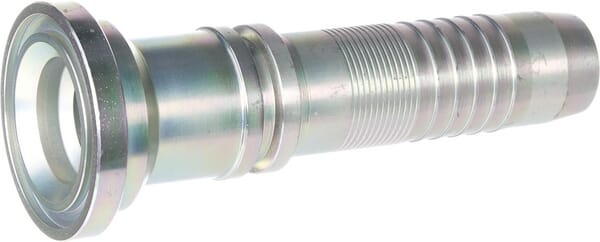

BPA000358615
Alfagomma Insert NS-DN32+flange SFLNS3224
£58.33 excl.
£70.00 incl.
Backorder available
Usually ships within 3–8 weeks

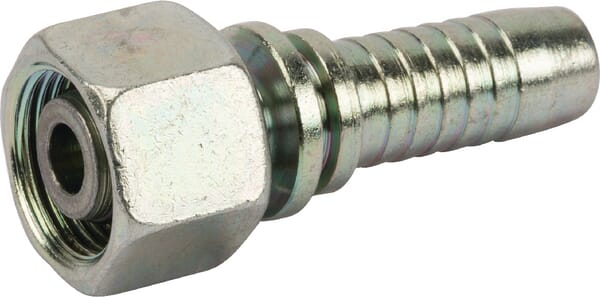

BPA000344172
Alfagomma Insert DN13-M20x1.5-12S PGSO1320
£6.62 excl.
£7.94 incl.
In stock
Expected to ship on Thursday 17 September

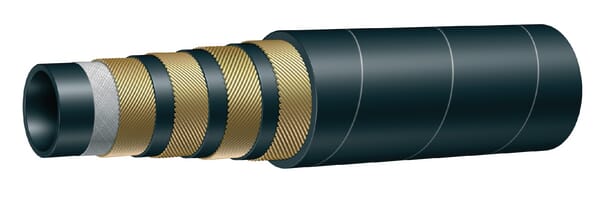

BPA000219572
Alfagomma Hose 5K-DN40 350 Bar ABTE ABTEV5KDN406S
£55.08 excl.
£66.10 incl.
In stock
Expected to ship on Friday 18 September

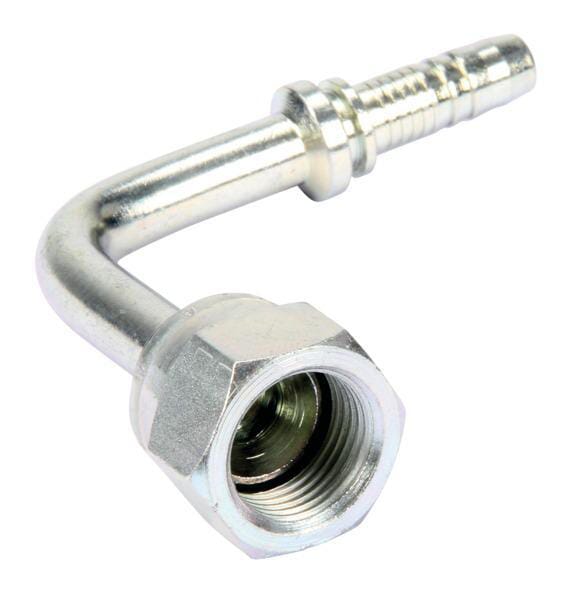

BPA000336336
Alfagomma Insert DN16-7/8-UNF-90° PA161490L
£13.27 excl.
£15.92 incl.
In stock
Expected to ship on Thursday 17 September

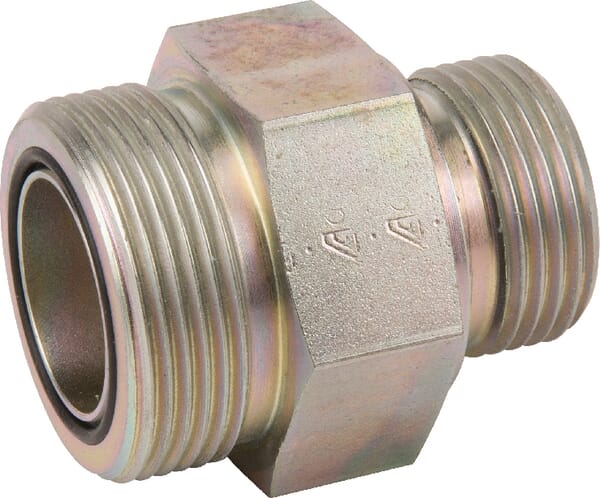

BPA000388525
Alfagomma Adaptor 1 BSPx1.11/16ORSF VNOB2716
£22.97 excl.
£27.56 incl.
Backorder available
Usually ships within 3–8 weeks

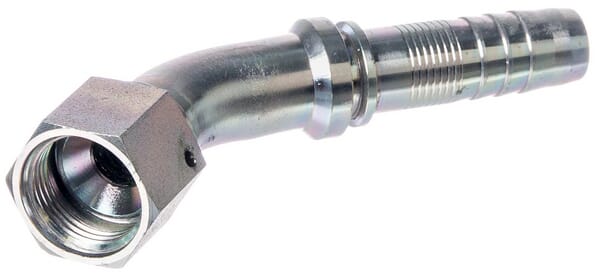

BPA000252849
