£48.18
excl. VAT
£57.82 incl. VAT
£57.82
incl. VAT
£48.18 excl. VAT
In stock
Expected to ship on Thursday 17 September

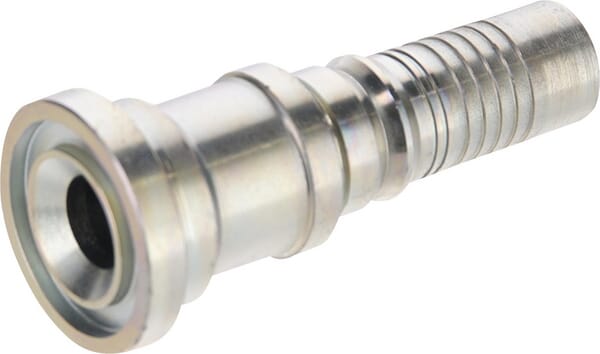

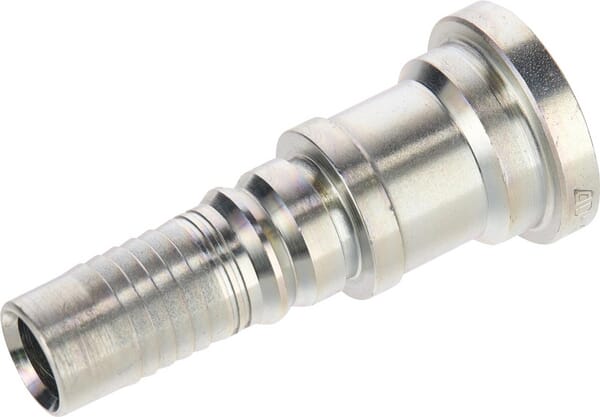

Product details
| Connection 1, type | Hose end |
|---|---|
| Connection 1, type code | SFL |
| Connection 2, diameter | 1-1/4 Inch |
| Connection 2, type | Flange |

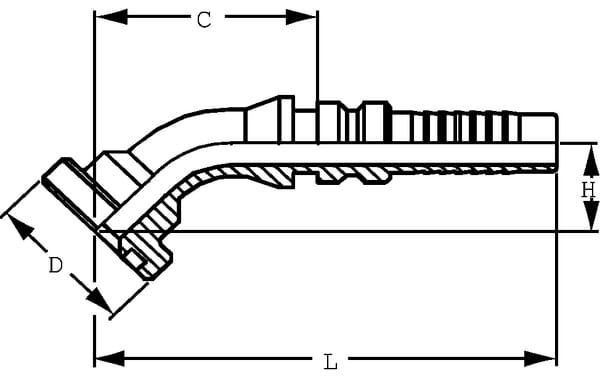

| DConnection no 1 diameter | 1 Inch |
| DFlange outside diameter | 50.8 mm |
| Flange standard pressure series | 3000 |
| Flange thickness | 8 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 95.6 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring through interlock system- OVP ring or O-ring seal- Heavy-duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFLH |
| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 573 g |
| Dimensions | 170 × 52 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000252863

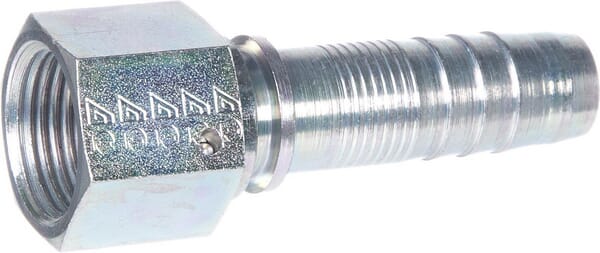

Alfagomma Insert F NS-DN40-1.7/8" UNF DKJNS4030G2
£36.44 excl.
£43.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000252988

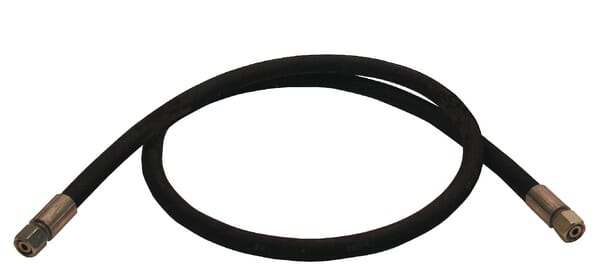

Alfagomma Hydraulic hose DN06 2200mm DKLO62200
£23.76 excl.
£28.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000343748

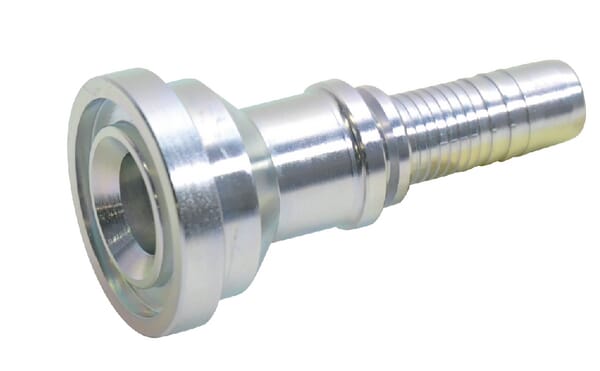

Alfagomma Insert with flange DN32-diameter 50.8mm PFL3220
£21.78 excl.
£26.14 incl.
In stock
Expected to ship on Thursday 17 September
BPA000388523

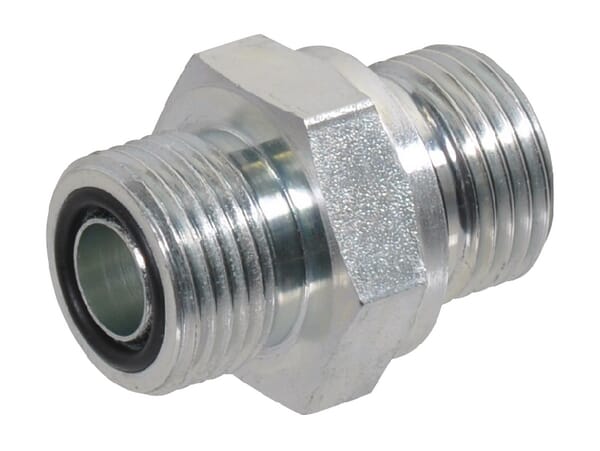

Alfagomma Adaptor 1-7/16 ORFS 1 BSP VNOB2316
£13.63 excl.
£16.36 incl.
In stock
Expected to ship on Thursday 17 September
BPA000278526

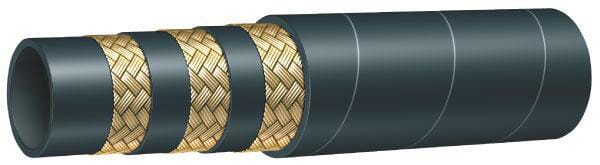

Alfagomma Hydraulic hose 1/2" 3Lg FXP313
£17.73 excl.
£21.28 incl.
In stock
Expected to ship on Thursday 17 September
BPA000336303

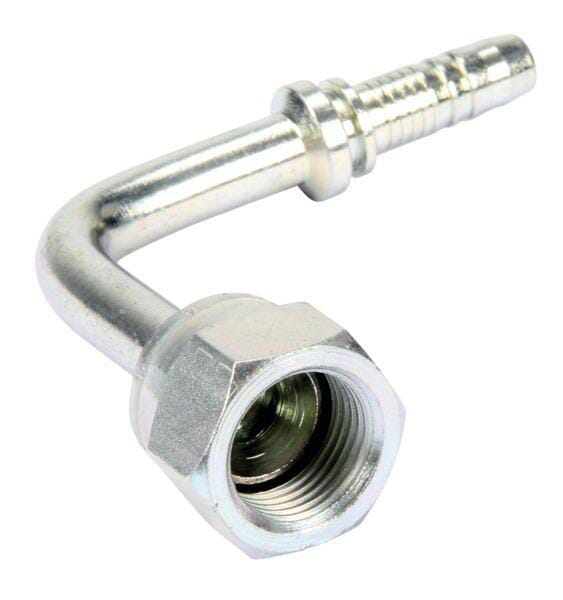

Alfagomma Insert DN13-3/4-UNF-90° PA131290L
