£86.55
excl. VAT
£103.86 incl. VAT
£103.86
incl. VAT
£86.55 excl. VAT
In stock
Expected to ship on Friday 18 September

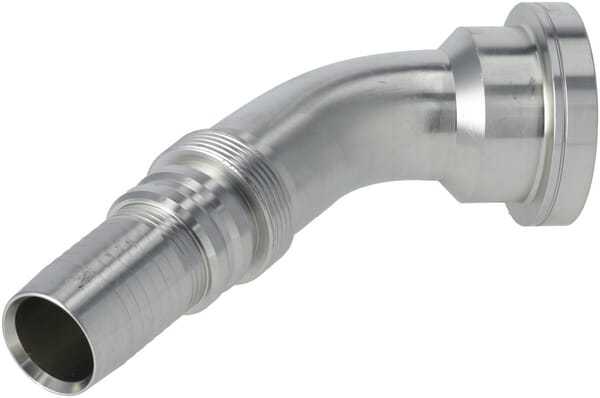

Product details
| Connection 1, type | Hose end |
|---|---|
| Connection 1, type code | SFS |
| Connection 2, diameter | 1-1/2 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1-1/4 Inch |
| DConnection no 1 diameter | 32 mm |
| DFlange outside diameter | 63.5 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 12.57 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |

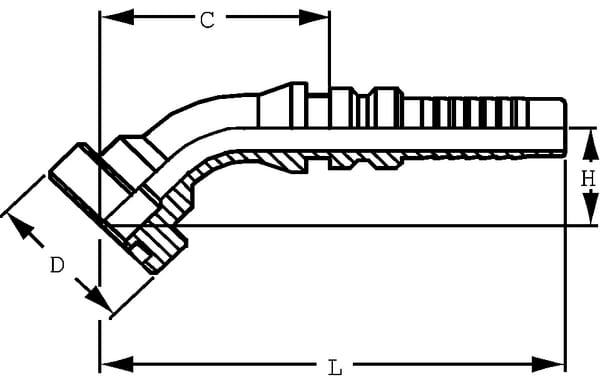

| LConnection no 1 center to end distance | 111.7 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
AFH624

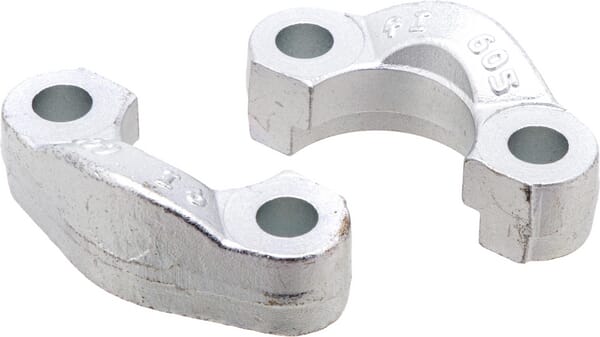

Oleo Tecnica SAE split flange 6000-1 1/2 AFH624
£27.46 excl.
£32.95 incl.
OR476335390P010
Kramp O-ring 47.63x3.53 90 shore 10x OR476335390P010
£22.59 excl.
£27.11 incl.
OVP4527

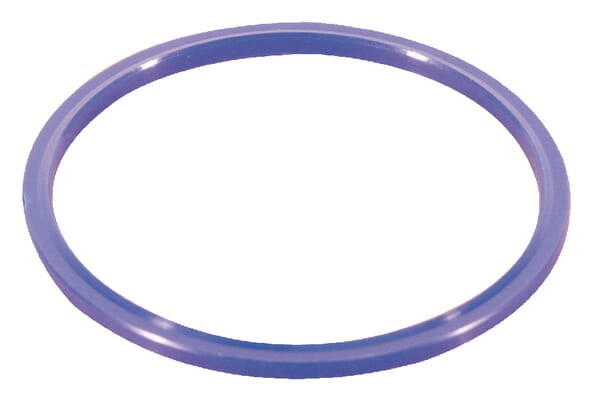

Hallite Seal ring SAE 1-1/2 OVP4527
£3.37 excl.
£4.04 incl.
SFAH432

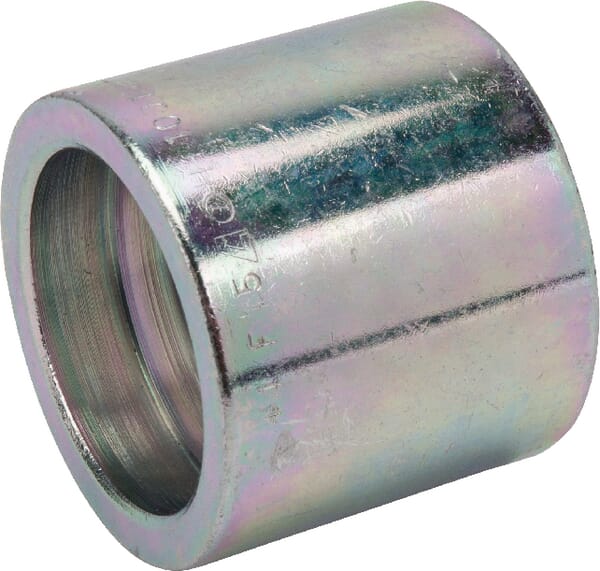

Alfagomma Ferrule DN32 Interlock SFAH432
£16.10 excl.
£19.32 incl.
SFAH4632

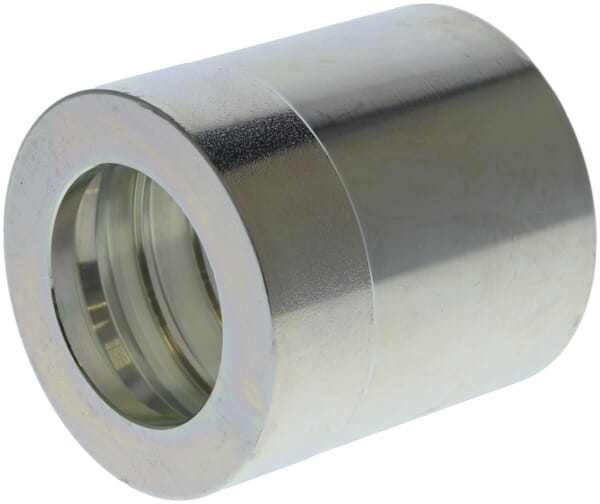

Alfagomma Ferrule DN32 Interlock SFAH4632
£26.13 excl.
£31.36 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1062 g |
| Dimensions | 200 × 65 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000336515
Alfagomma Insert DN10-13/16 ORFS-90° PAV101390
£5.89 excl.
£7.07 incl.
In stock
Expected to ship on Friday 18 September
BPA000388523
Alfagomma Adaptor 1-7/16 ORFS 1 BSP VNOB2316
£13.63 excl.
£16.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000365520
Alfagomma HSK-PQ swage coupling set SWAGEKIT2HSKPQ
£2,658.31 excl.
£3,189.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000337900
Alfagomma Insert DN16-1"1/16 UNF PC1617
£4.63 excl.
£5.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000338542

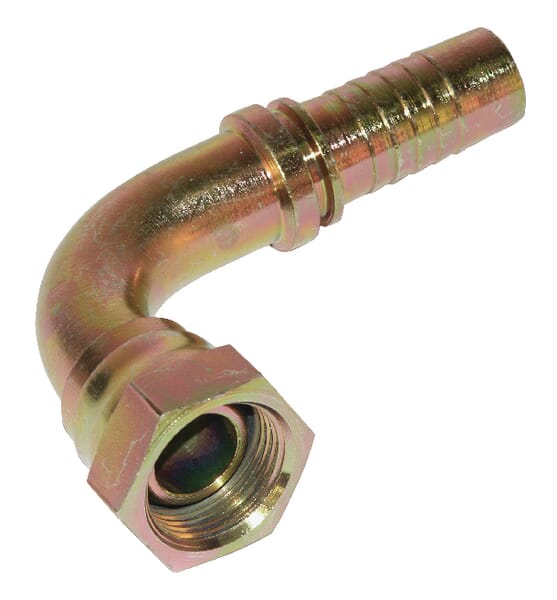

Alfagomma Insert DN32-1"1/4 BSP-90º PF322090
£31.52 excl.
£37.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000395806

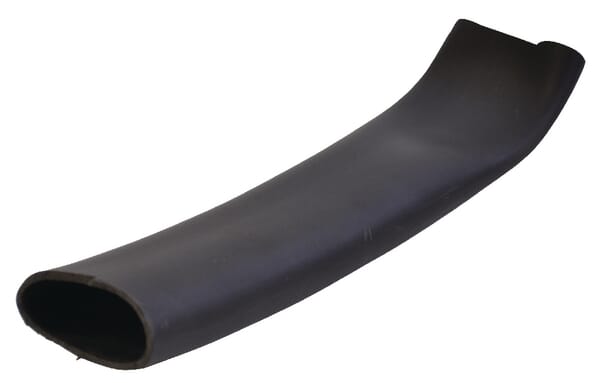

Alfagomma Vinyl Protective Sleeve DN31 VPS031
