£11.75
excl. VAT
£14.10 incl. VAT
£14.10
incl. VAT
£11.75 excl. VAT
In stock
Expected to ship on Friday 18 September

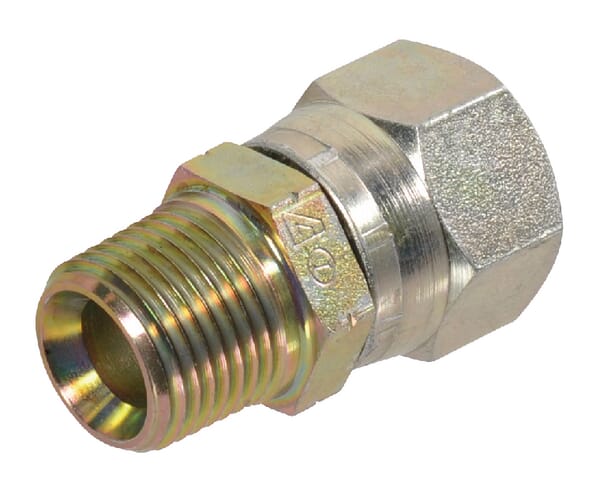

Product details
| Cone angle | 74 ° |
|---|---|
| Connection 1, thread diameter | 7/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, thread length | 14.5 mm |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 20 |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514, Cone according to UNF ANSI |
| Series connection 1 | n/a |
| Shape | Straight |
| Surface treatment | Galvanised |
| Total length | 38.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 37 g |
| Dimensions | 35 × 15 × 14 mm |
| Dangerous goods | No |
You might also like

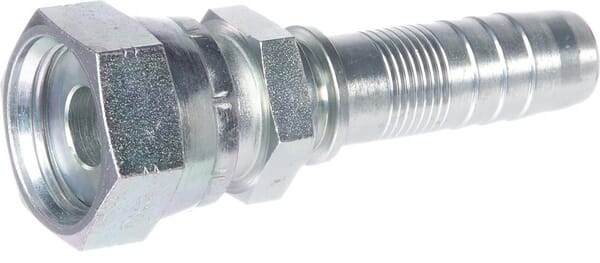

BPA000251410
Alfagomma Insert F NS-DN25-1.7/16 ORFS DAVNS2523G2
£20.10 excl.
£24.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000226214
Alfagomma Insert M NS-DN20-3/4" BSP AGRNS2012G2
£11.70 excl.
£14.04 incl.
In stock
Expected to ship on Thursday 17 September

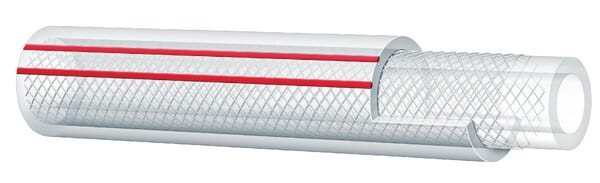

BPA000310714
Alfagomma Reinforced PVC hose 13mm LS130
£2.28 excl.
£2.74 incl.
In stock
Expected to ship on Thursday 17 September
BPA000358467
Alfagomma Ferrule diameter 30x30.5mm DN13 Steel / zinc-plated SFAD213
£1.82 excl.
£2.18 incl.
In stock
Expected to ship on Thursday 17 September

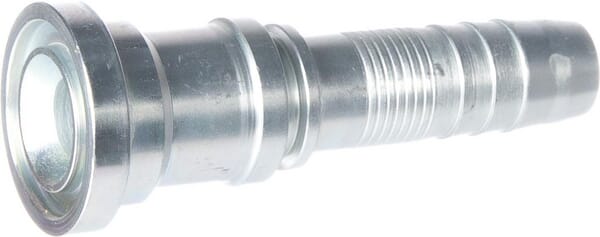

BPA000358621
Alfagomma Insert NS-DN40-flange diameter 60.3 SFLNS4024G2
£34.57 excl.
£41.48 incl.
In stock
Expected to ship on Thursday 17 September

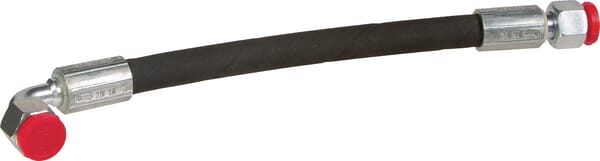

BPA000252899
Alfagomma Hydr. hose cpl DN10.300-90° DKLO1030090
£10.82 excl.
£12.98 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping

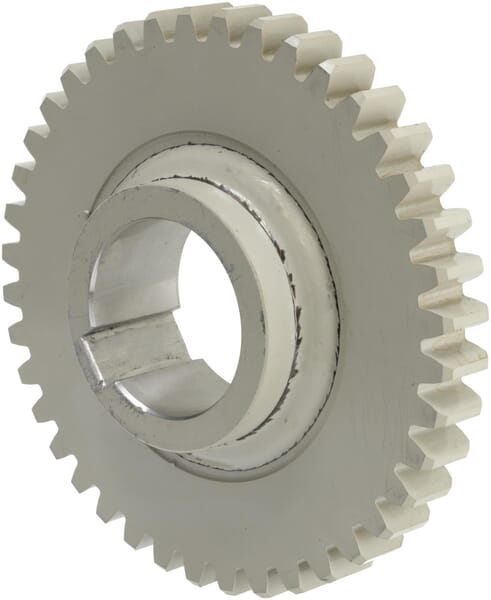

BPA000001431
