£85.94
excl. VAT
£103.13 incl. VAT
£103.13
incl. VAT
£85.94 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

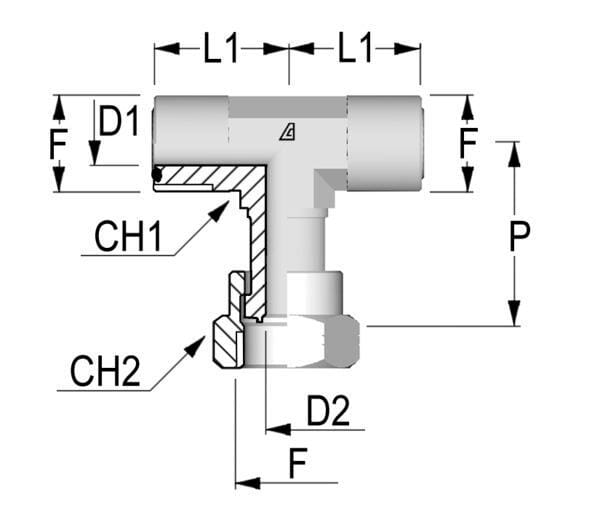

| CH2Connection no 1 wrench size | 41.0 mm |
|---|---|
| Connection 1, thread diameter | 1-7/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-7/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 3, thread diameter | 1-7/16 Inch |
| Connection 3, thread type | ORFS |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |

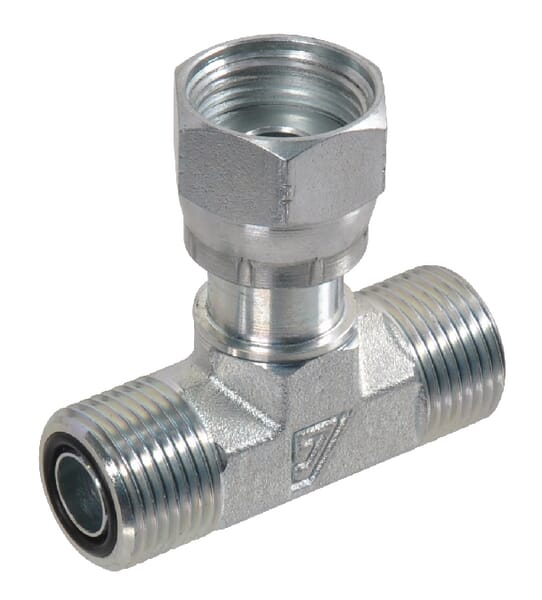

| Long description | ORFS fittings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Product details | High tightening torques, Reusable, O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment : Zinc-plated, Viton seal available on request |
| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 400 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 685 g |
| Dimensions | 90 × 90 × 41 mm |
| Dangerous goods | No |
You might also like
BPA000279035

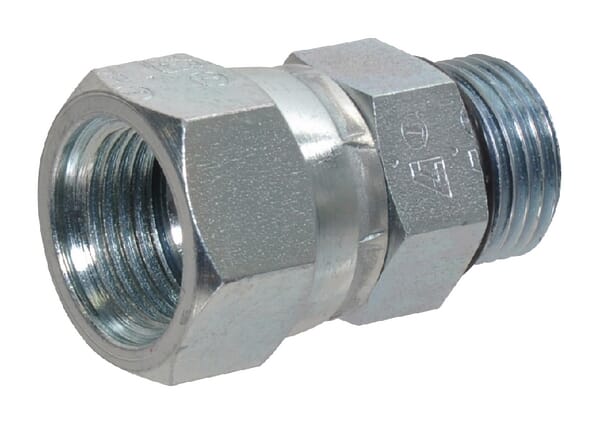

Alfagomma Stud swivel 3/4 UNF FMU12
£14.78 excl.
£17.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000358485

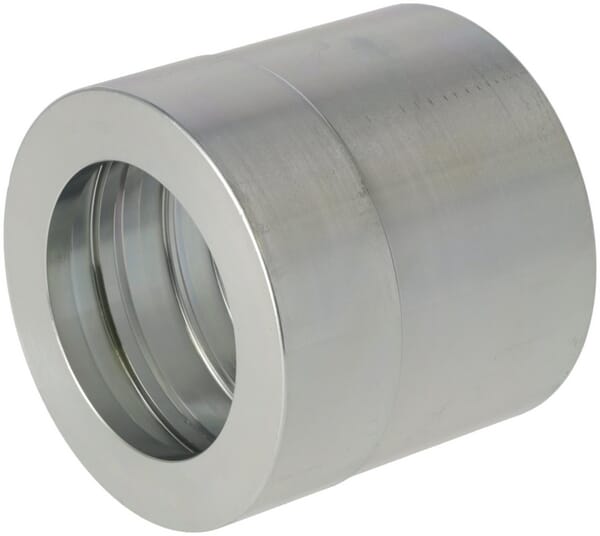

Alfagomma Ferrule DN50 Interlock SFAH4650
£65.58 excl.
£78.70 incl.
In stock
Expected to ship on Thursday 17 September
BPA000350477

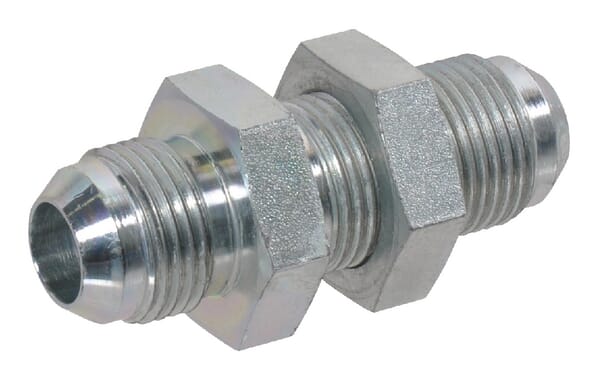

Alfagomma Bulkhead adaptor 1-5/8 JIC RS26
£27.20 excl.
£32.64 incl.
In stock
Expected to ship on Thursday 17 September
BPA000375589

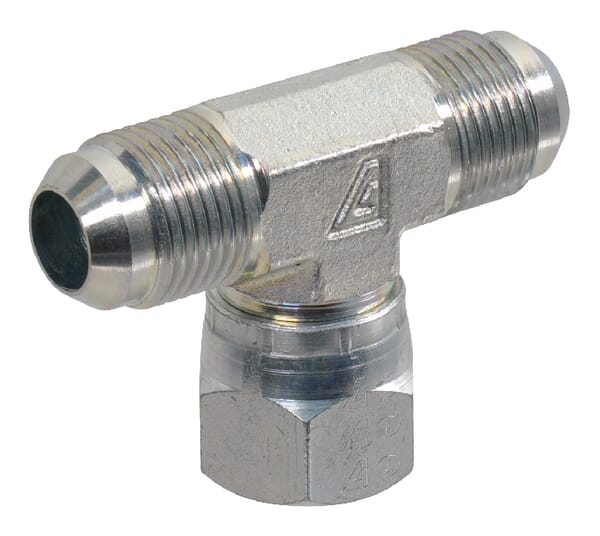

Alfagomma T piece M/M/F 1-5/16 JIC TOU21
£49.23 excl.
£59.08 incl.
In stock
Expected to ship on Thursday 17 September
BPA000253042

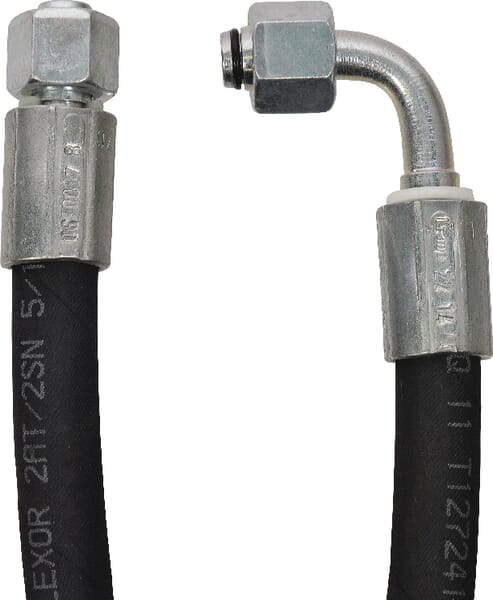

Alfagomma Hydr. hose cpl DN08.4000-90° DKLO8400090
£43.49 excl.
£52.19 incl.
In stock
Expected to ship on Friday 18 September
BPA000343761

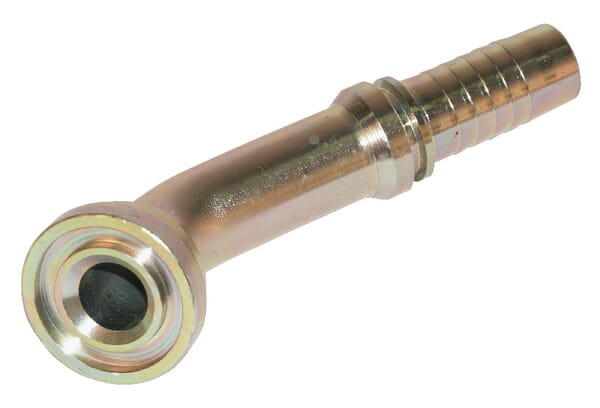

Alfagomma Insert with flange DN40-diameter 60.3mm-22° PFL402422
