£450.67
excl. VAT
£540.80 incl. VAT
£540.80
incl. VAT
£450.67 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

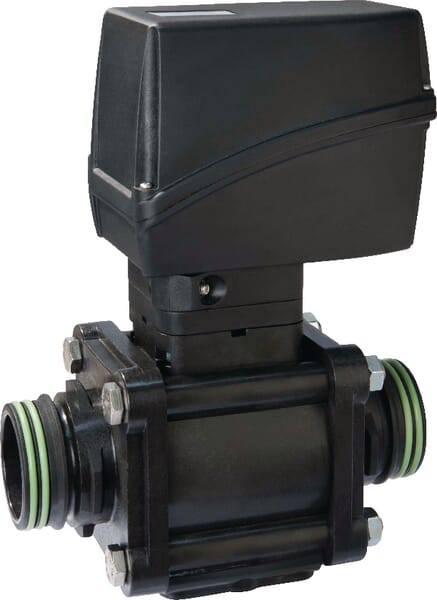

Product details
| Ball material | AISI 316 |
|---|---|
| Properties | Ball positioning seats made from Teflon, Internal O-rings made from viton, Clamping devices for flange mounting made from stainless steel, protected by the valve housing |

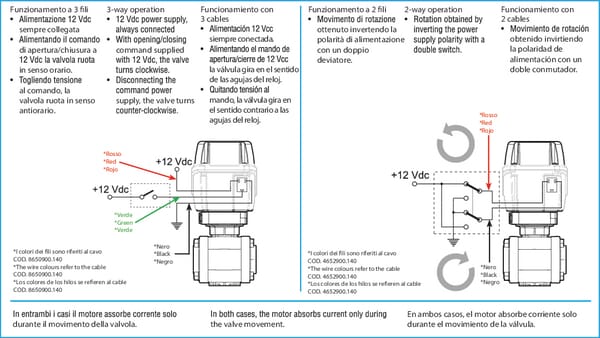

| Technical info | NO: normally open, The valves are designed for the 3-wire function (++-), a supply with 12Vdc:, As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently., If the power supply is interrupted, the gear motor brings the ball back to its original position, The valves are also compatible with the 2-wire controllers:, where the opening/closing movement by reversing the supply polarity is achieved with a double diverter |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2546 g |

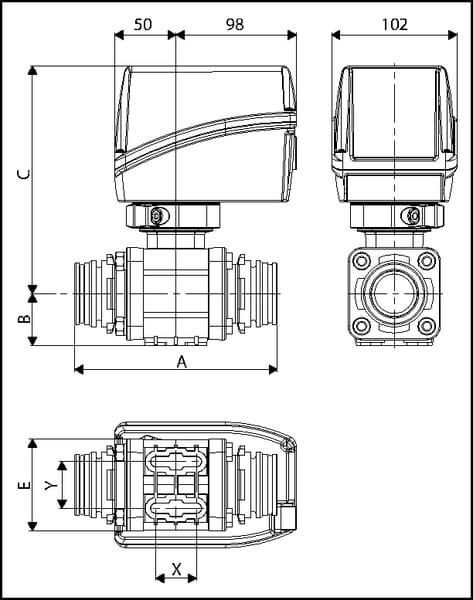

| Dimensions | 260 × 195 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000117632
Arag Orion Flow meter 0,3-6 l/min 46211AG0000
£908.69 excl.
£1,090.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101876

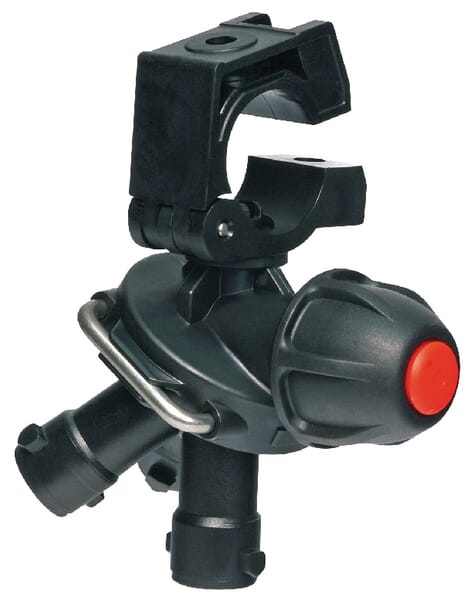

Arag Tri-Jet 3/4"F.10 retainer clip 4012757
£19.06 excl.
£22.87 incl.
In stock
Expected to ship on Thursday 17 September
BPA000077668
Arag Reducer male-female T6/T3 259263
£3.31 excl.
£3.97 incl.
In stock
Expected to ship on Thursday 17 September
BPA000057993
Arag Camlock 1 1/2" male Fork Coupling T6 18106L
£4.10 excl.
£4.92 incl.
In stock
Expected to ship on Thursday 17 September
BPA000071578

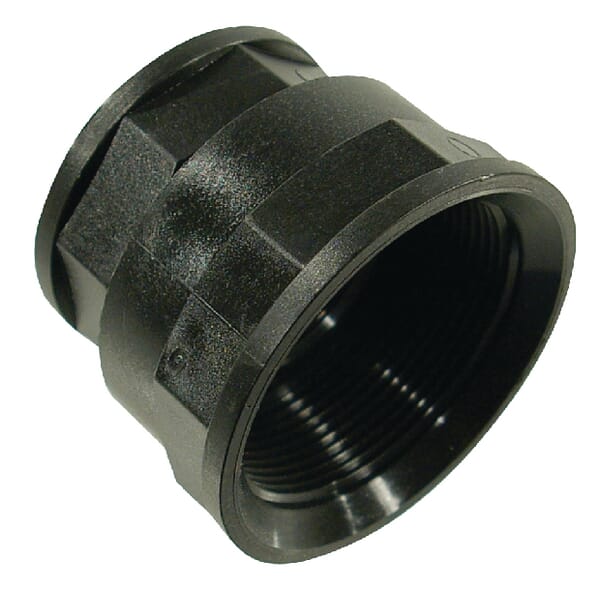

Arag Red. nipple F/F 2"x1 1/2" 2352076
