£2,468.12
excl. VAT
£2,961.74 incl. VAT
£2,961.74
incl. VAT
£2,468.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

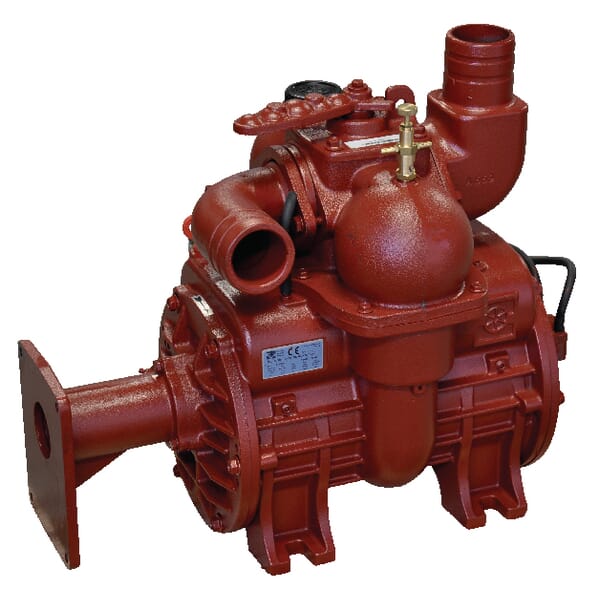

Product details

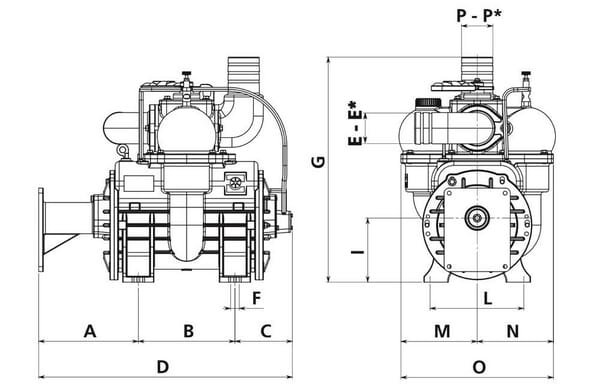

| AMounting holes to shaft end distance | 299 mm |
|---|---|
| Ballast air injection system | No |
| B,LMounting holes distance | 247 mm, 246 mm |
| CMounting holes to end distance | 192 mm |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| D,PDiameter of hose connection | 100 mm |
| Drive type | Hydraulic |
| ETotal length | 738 mm |
| FMounting holes diameter | 22 mm |
| GHeight | 575 mm |
| Hydraulic motor required capacity | 125 l/min |
| IShaft centre to bottom distance | 164 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.95 BAR |
| MShaft centre to left side end distance | 195 mm |
| Nominal volume flow rate | 13845 l/min |
| NShaft centre to right side end distance | 195 mm |
| OTotal width | 390 mm |
| Power requirement for max. pressure | 36 kW |
| Power requirement for max. vacuum | 24 kW |
| Product details | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed, These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks, These pumps can generate both positive pressure and vacuum, Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), Without hydraulic motor and key bush, The pumps are delivered without lubrication oil (item BP5070), Including hydraulic base for mounting the hydraulic motor. |
| Reservoir capacity | 3.5 l |
| Rotation direction | Clockwise (CW) |
| Safety valve connection diameter | 2 Inch |
| Technical info | Composition of the item numbers: MEC = series, 9000 = type, H = hydraulic drive, B = ballast system, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with hydraulic drive are clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) |
| Unit | Each |
| Vane type | Long life |
| Weight | 173 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 174000 g |
| Dimensions | 770 × 590 × 420 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000064268

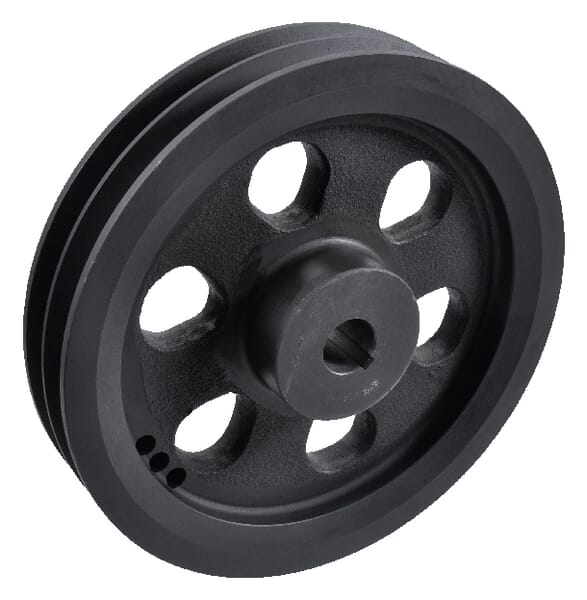

Battioni Pagani Pulley MEC 5000/8000 2009B
£444.89 excl.
£533.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235518

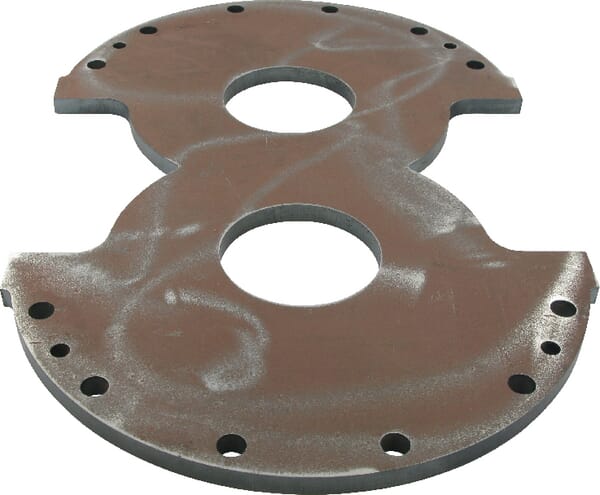

Battioni Pagani Plate BR B5
£263.27 excl.
£315.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000232365

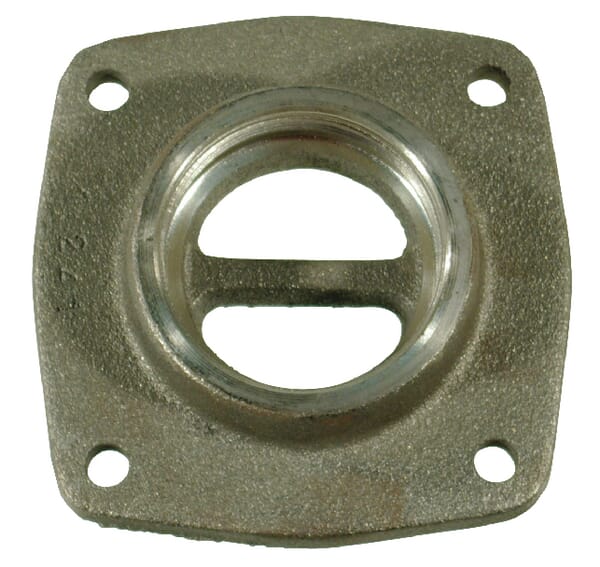

Battioni Pagani Cover AS49
£55.55 excl.
£66.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000109807

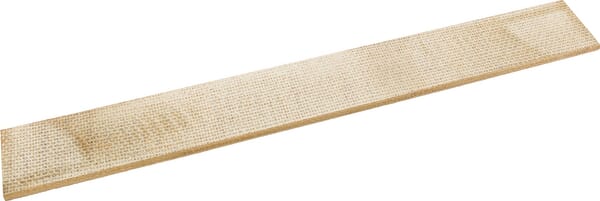

Battioni Pagani Vane 640x80x6.7mm long life 4070113107
£261.21 excl.
£313.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101775
Battioni Pagani Front Cover Revoblock 4010601152
£28.63 excl.
£34.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000231498

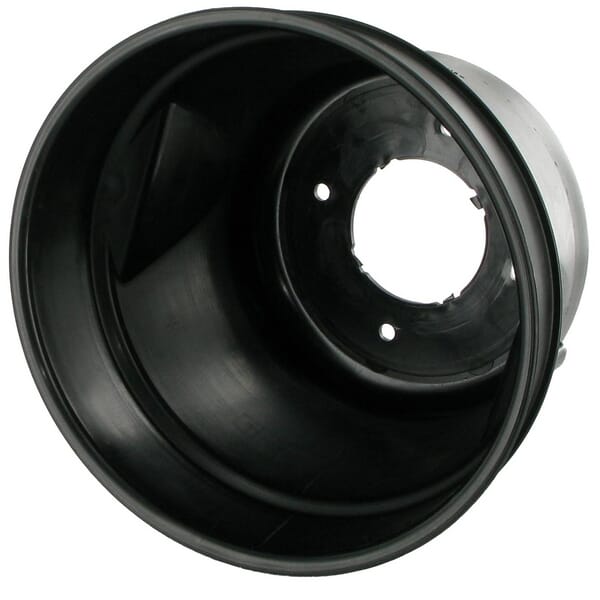

Battioni Pagani Protection cap CE AM95
