£517.22
excl. VAT
£620.66 incl. VAT
£620.66
incl. VAT
£517.22 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 30.2 mm |
| Cross length | 79.4 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |

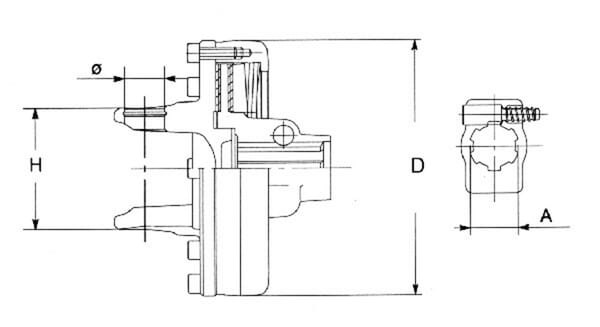

| DOutside diameter | 180 mm |
| HMounting holes distance | 91 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max static torque | 1350 N·m |
| ØMounting holes circle diameter | 30.2 mm |
| Original number equivalent | 661G51303R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | S5, S6, 105 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9528 g |
| Dimensions | 275 × 200 × 195 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000069921

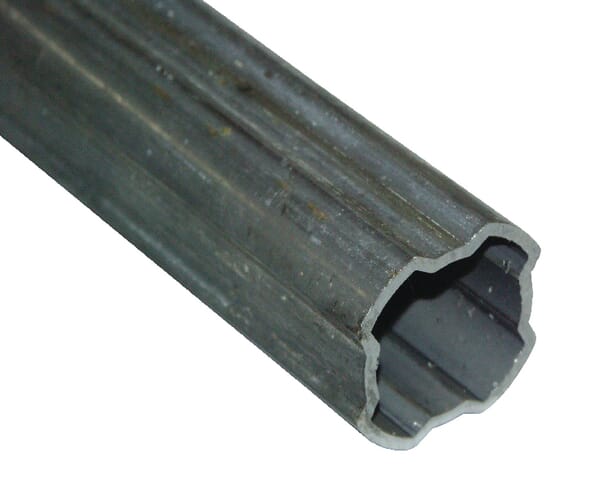

Bondioli&Pavesi Profile tube inner coated SFT S4 diameter in: 37.2 diameter out: 44.7x3.8mm L: 1m wide angle Bondioliand Pavesi 2453G1000
£183.15 excl.
£219.78 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000150920

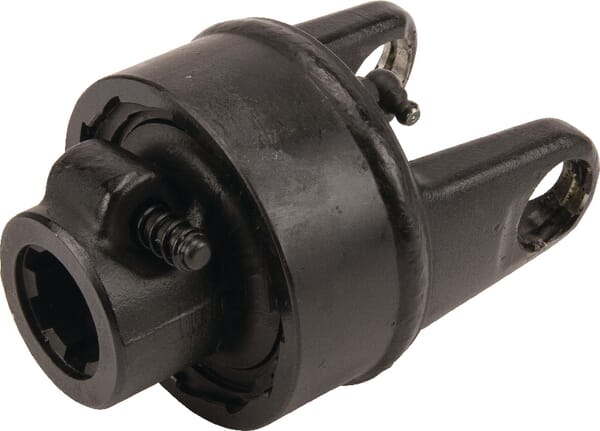

Bondioli&Pavesi RA1 BG4 left 1-3/8Z6 freewheel 602104701R
£280.08 excl.
£336.10 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000067903

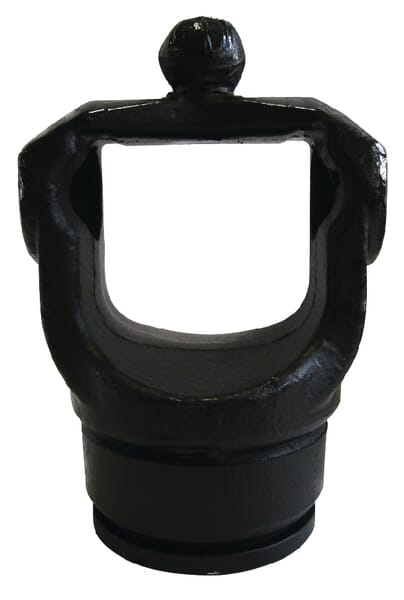

Bondioli&Pavesi Yoke, Profile tube, 44.7mm, S4 Bondioliand Pavesi 2150E6872
£212.84 excl.
£255.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150721

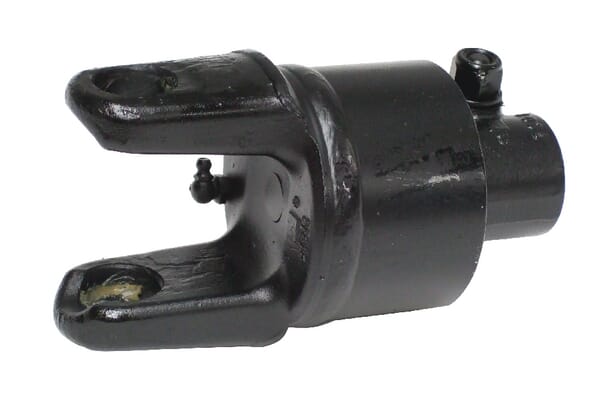

Bondioli&Pavesi Overrunning clutch RA2/S6/101dx 1-3 601205601R
£415.65 excl.
£498.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000109318

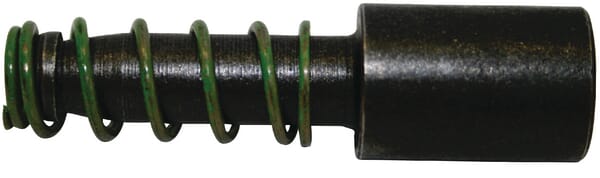

Bondioli&Pavesi Quick release pin 47.0mm 403000001R10
£5.22 excl.
£6.26 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000156972

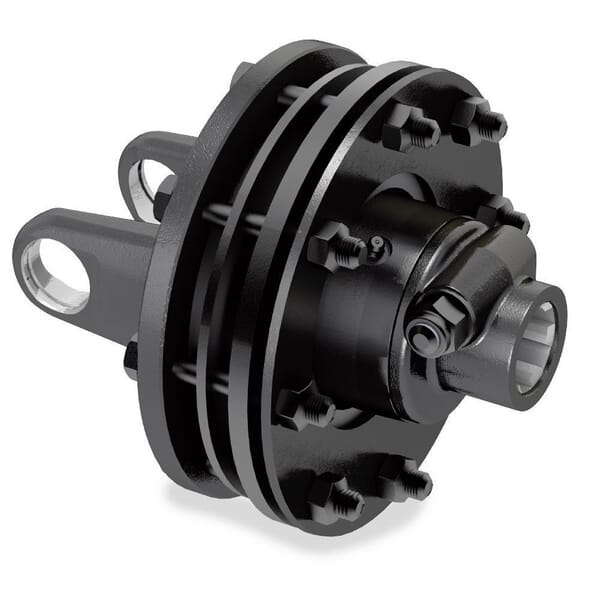

Bondioli&Pavesi Friction clutch FNV34 S5/S6/G5 1350Nm 665G51103R
