£613.21
excl. VAT
£735.85 incl. VAT
£735.85
incl. VAT
£613.21 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|
| Attachment machine side | Overrunning clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 91.4 mm |
| Cross joint length by tractor side | 91.4 mm |
| Details | PTO shaft with integrated freewheel |
| Inner tube large outside diameter | 45.6 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 3.7 mm |
| Profile tube shape | Triangular |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G7 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 21500 g |
| Dimensions | 1250 × 215 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000179853

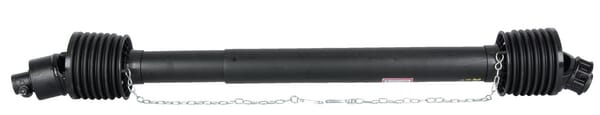

Bondioli&Pavesi Driveshaft with overrunning clutch 7G4N101CE007096
£454.54 excl.
£545.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000133347

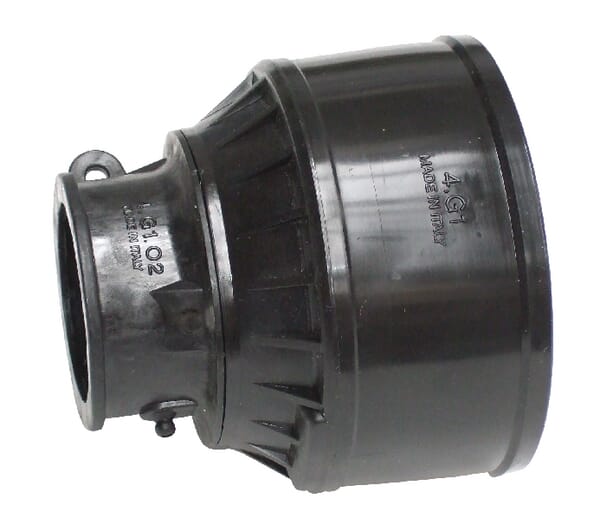

Bondioli&Pavesi Guard cone, innner size 8/9, standard 517080120
£61.53 excl.
£73.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000156842

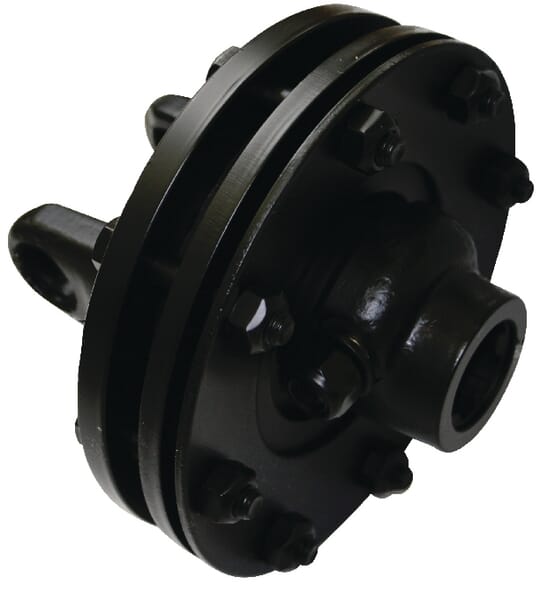

Bondioli&Pavesi Friction clutch FV34 G5/S5/S6 1200Nm 661G48303R
£494.12 excl.
£592.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150636

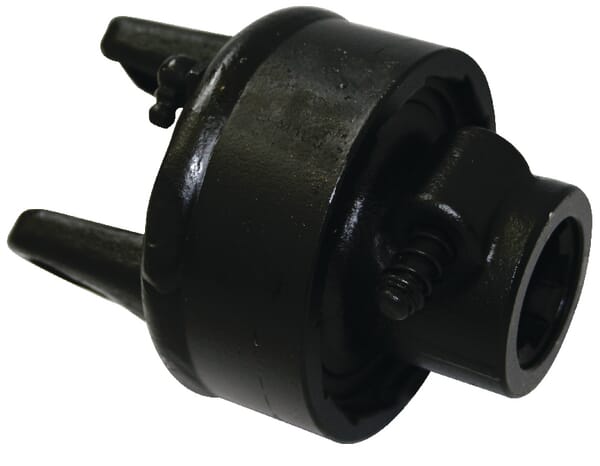

Bondioli&Pavesi Overrunning clutch Ra1/S1/101dx 1-3 601101701R
£268.74 excl.
£322.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150722

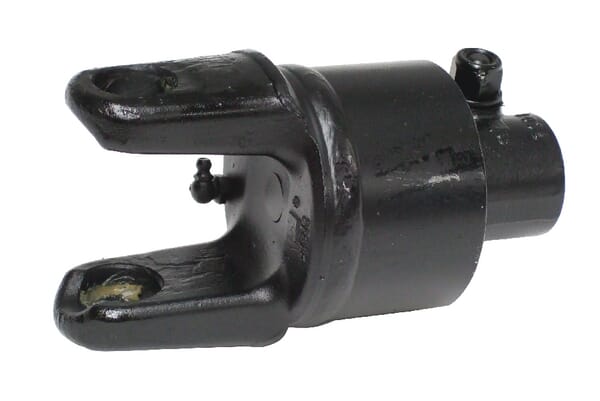

Bondioli&Pavesi Overrunning clutch RA2 S5/S6/G5 601205603R
£505.62 excl.
£606.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000109511

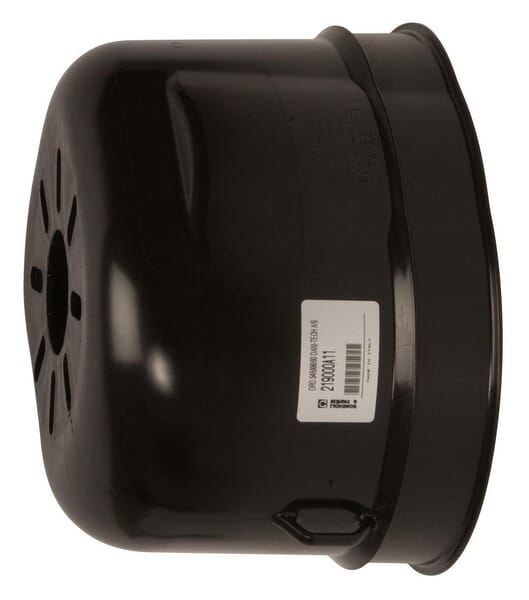

Bondioli&Pavesi Guard cone, black L 180mm 280 405021904
