£1,495.92
excl. VAT
£1,795.10 incl. VAT
£1,795.10
incl. VAT
£1,495.92 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September

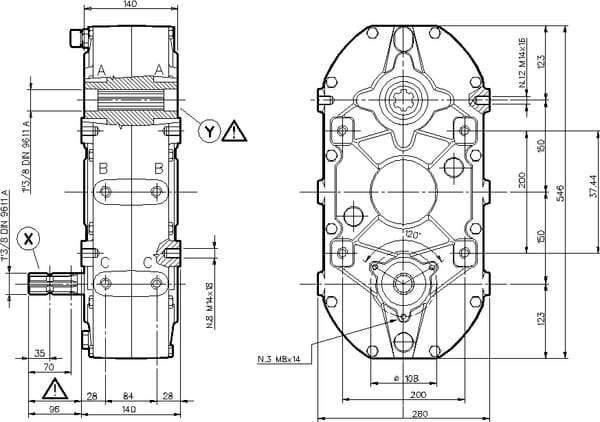

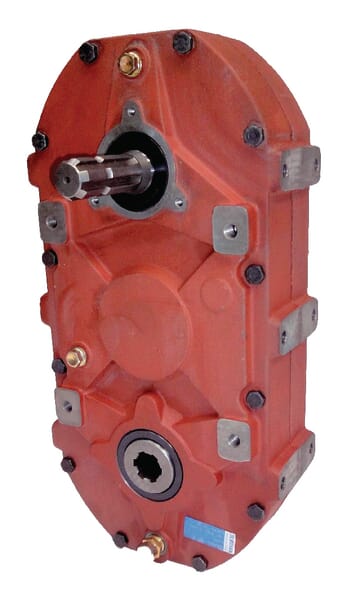

Product details
| Application range | Applications in agriculture |
|---|---|
| Connection 1 outside diameter | n/a |
| Connection 1 Outside Diameter inch and splines | 1.3/8-6 |
| Connection 2 outside diameter | n/a |
| Connection 2 Outside Diameter inch and splines | 1.3/8-6 |
| Connection 3 outside diameter | n/a |
| Connection 3 Outside Diameter inch and splines | n/a |
| Contains oil | No |

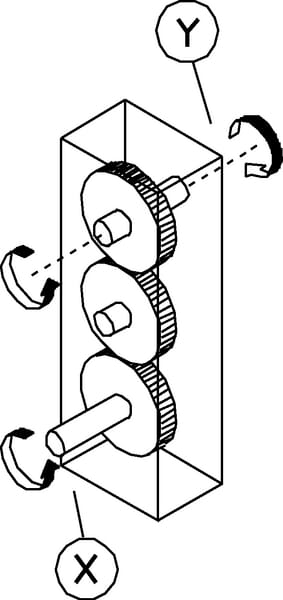

| Gear arrangement reducing | 57-58 |
| Housing material | Cast iron |
| Max. input power | 58.8 kW |
| Max. input rotation speed | 540 r/min |
| Max. output rotation speed | 278 r/min |
| Model | IMR4 |
| Product details | The gearbox is delivered without oil and must be filled before first use., First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. |
| Properties | Axle distance 300 mm, Lubricant filling: SAE 90 3.5 kg |
| Ratio factor | 1:1.94 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 45000 g |
| Dimensions | 550 × 280 × 280 mm |
| Dangerous goods | No |
You might also like
BPA000109852

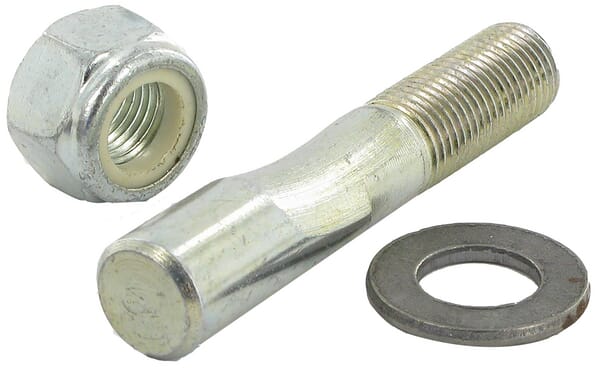

Bondioli&Pavesi Taper pin 1-3/4z6-z20 408000046R02
£10.78 excl.
£12.94 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000144811

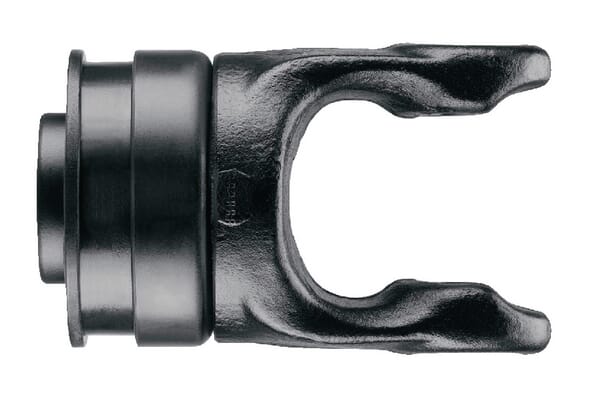

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, SH Bondioliand Pavesi 5720N3752
£331.53 excl.
£397.84 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000160446

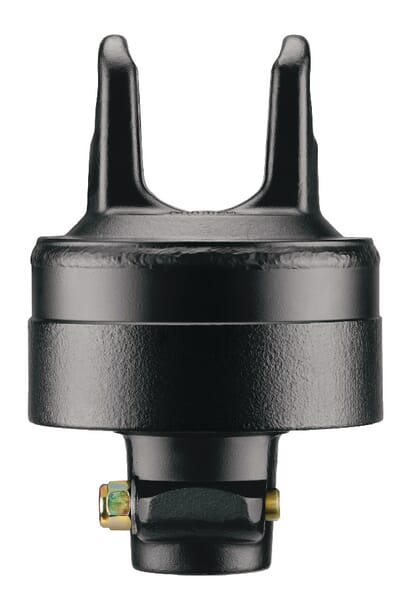

Bondioli&Pavesi Clutch LR35 S8/H8/G8 3500Nm 6WL481038R
£1,762.84 excl.
£2,115.41 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000039520

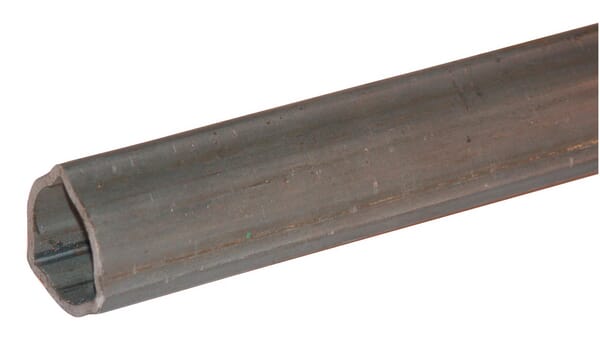

Bondioli&Pavesi Profile tube triangular 6/8 diameter in: 46.6 diameter out: 54x3.7mm L: 3m Bondioliand Pavesi 125173000R06
£328.59 excl.
£394.31 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000148260

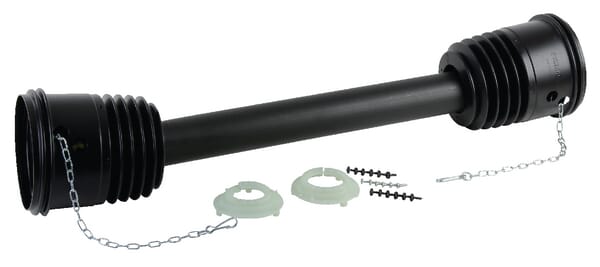

Bondioli&Pavesi Guard complete G4 WW 80° 1210mm 5CG4121FXWW
