£528.79
excl. VAT
£634.55 incl. VAT
£634.55
incl. VAT
£528.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |

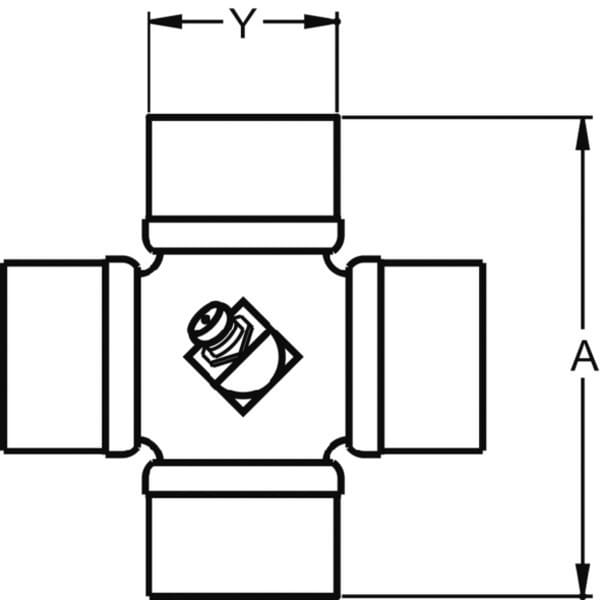

| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 76.6 mm |
| Cross joint length by tractor side | 76.6 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1010 mm |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G4 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18200 g |
| Dimensions | 1264 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000192593

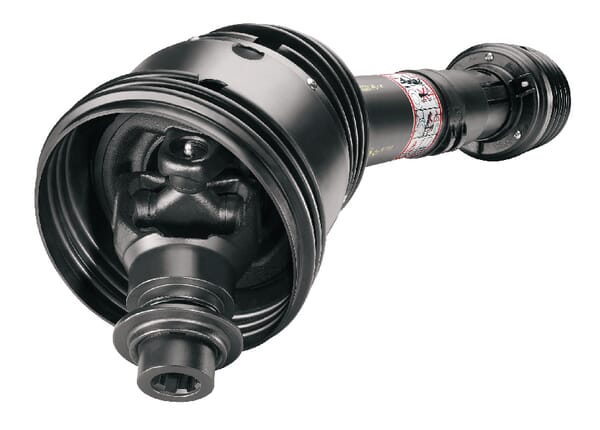

Bondioli&Pavesi Wide-angle shaft 8G4R161CEWR7007
£1,028.60 excl.
£1,234.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000112481

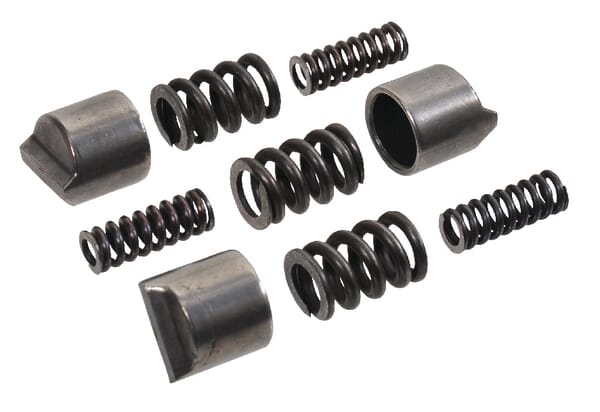

Bondioli&Pavesi Cam with spring 421555001R03
£20.74 excl.
£24.89 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000192592

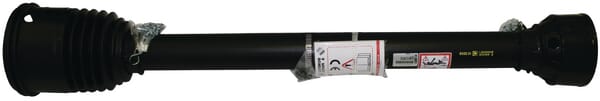

Bondioli&Pavesi Wide angle cardan shaft G4 8G4R121CEW00001
£696.23 excl.
£835.48 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000156847

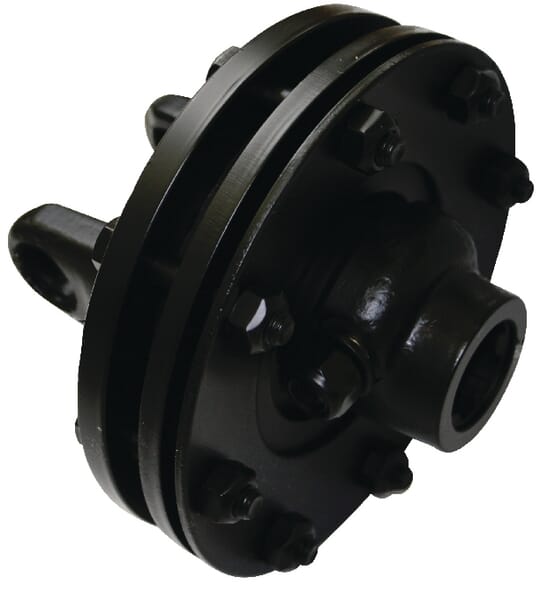

Bondioli&Pavesi Clutch FV34 1450Nm 661H53303R
£533.28 excl.
£639.94 incl.
In stock
Expected to ship on Thursday 17 September
BPA000066907

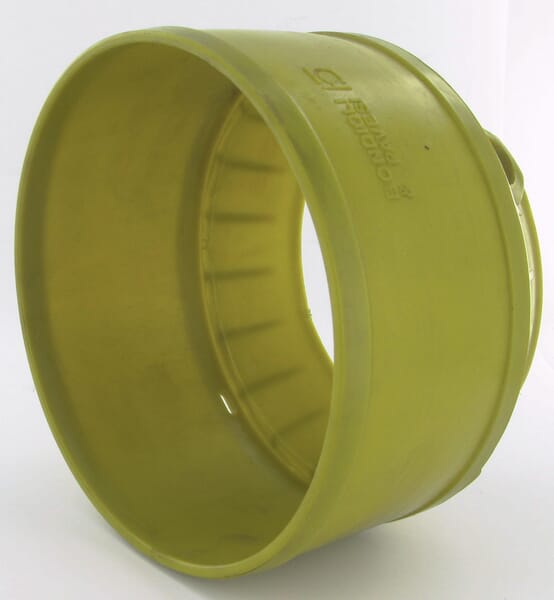

Bondioli&Pavesi Guard cone 219050001
£18.23 excl.
£21.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248168

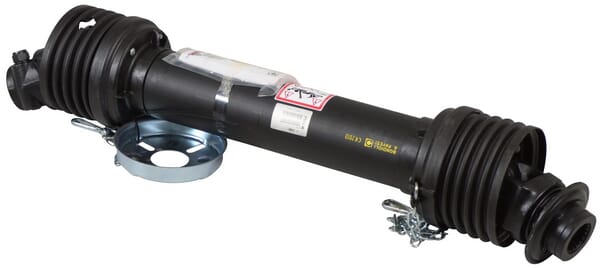

Bondioli&Pavesi PTO shaft S8 L 610mm CS8S061CER10017
