£1,027.40
excl. VAT
£1,232.88 incl. VAT
£1,232.88
incl. VAT
£1,027.40 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Loader wagons, Round balers, Big baler, Loader wagons, Rotary tillers |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/4-20 |
| Connection outside diameter tractor side inch and splines | 1.3/8-21 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 93.5 mm |
| Cross joint length by tractor side | 93.5 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 610 mm |
| Properties | CE marking available |
| Size code | S8 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248168
Bondioli&Pavesi PTO shaft S8 L 610mm CS8S061CER10017
£1,032.23 excl.
£1,238.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000073329

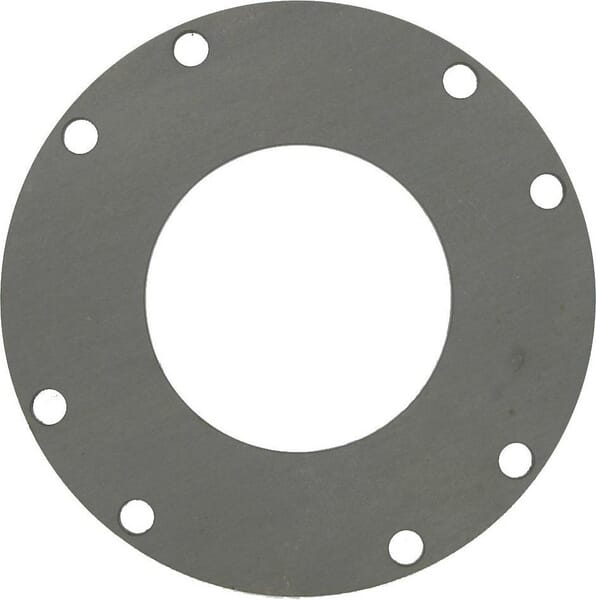

Bondioli&Pavesi Driving disc da=190 h=4 f. FF2 248230002R02
£40.21 excl.
£48.25 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148337

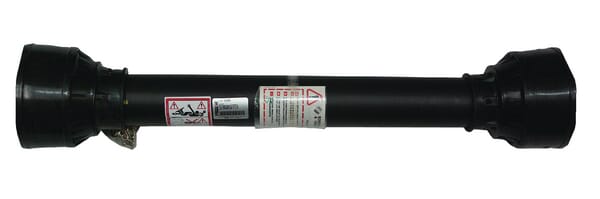

Bondioli&Pavesi Guard, 1610 mm 5F10161FFFX
£211.95 excl.
£254.34 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000152538

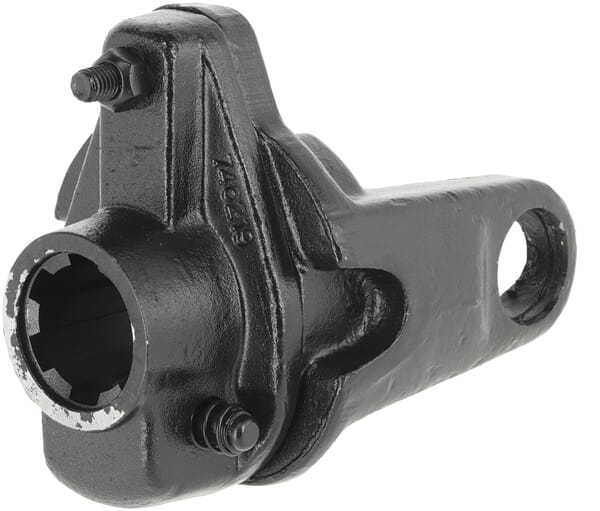

Bondioli&Pavesi Shear bolt clutch S8/H8/G8 2700Nm 6060L0303R
£254.64 excl.
£305.57 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000130588

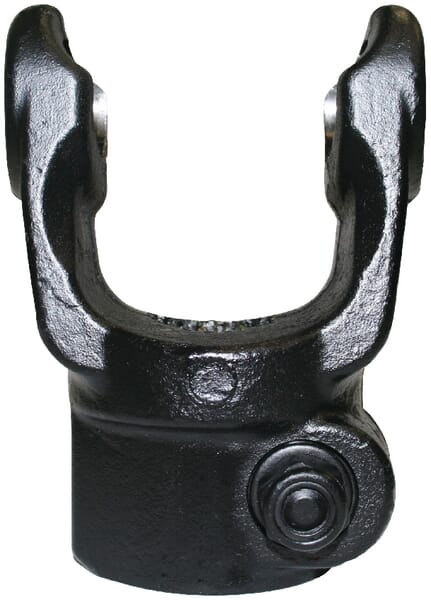

Bondioli&Pavesi Yoke, clamp bolt, 1-3/8"-21 spline, 7/G8/S8/H8 Bondioliand Pavesi 5090L3760
£163.11 excl.
£195.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000071695

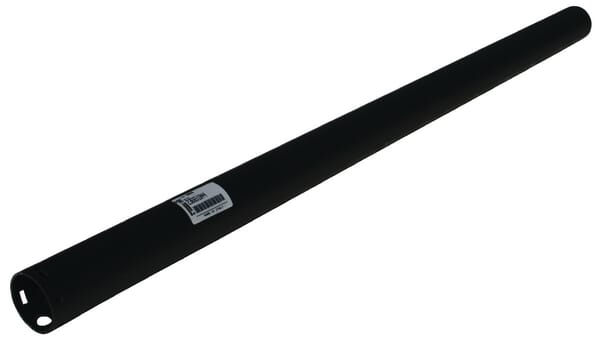

Bondioli&Pavesi Protection tube 236821600
£93.09 excl.
£111.71 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000152244
SKF Deep groove ball bearing 160x240x38mm 60322Z
£977.91 excl.
£1,173.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153087
Kramp Oil seal 62x80x10mm type:DB DIN 3760 1x 628010DBP001
£4.45 excl.
£5.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000298777
Kramp Hexagon head bolt ISO4017 M10x20 steel 10.9 ISO40171020109B
£0.40 excl.
£0.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000327284

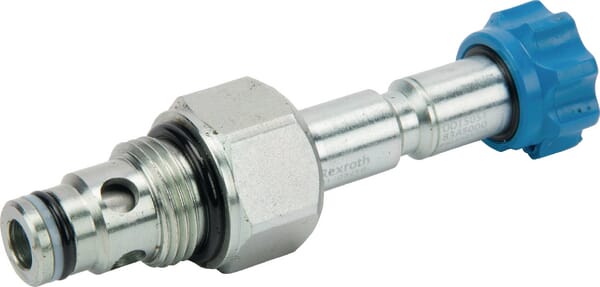

Bosch Rexroth Cartridge Valve 2/2 VEI-8A-2A-06-NC-S OD OD15051837
