£653.99
excl. VAT
£784.79 incl. VAT
£784.79
incl. VAT
£653.99 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Big baler, Wood shredders, Loader wagons, Spreaders, Fertiliser mixer |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 106 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 710 mm |

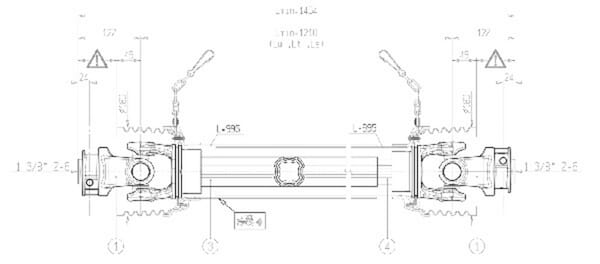

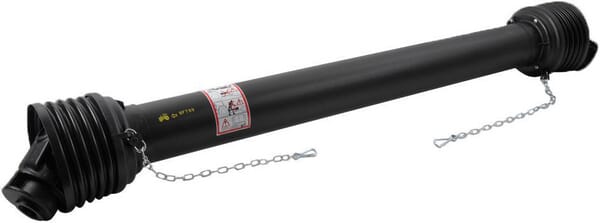

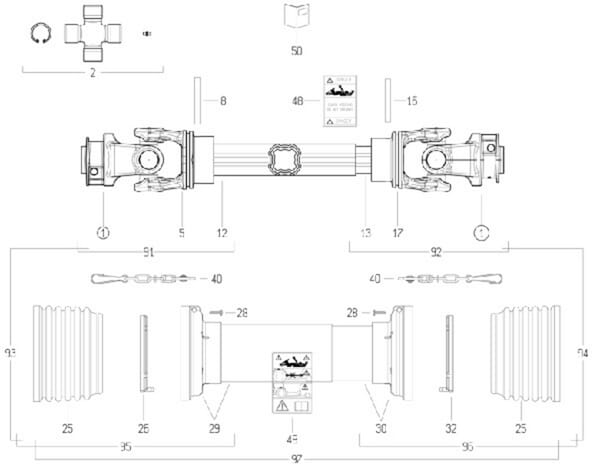

| Long description | PTO Drive Shafts - SFT, series S9 |
| Power 1000 rpm | 122 kW |
| Power 540 rpm | 81 kW |
| Properties | CE marking available |
| Size code | S9 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 21700 g |
| Dimensions | 970 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000090255

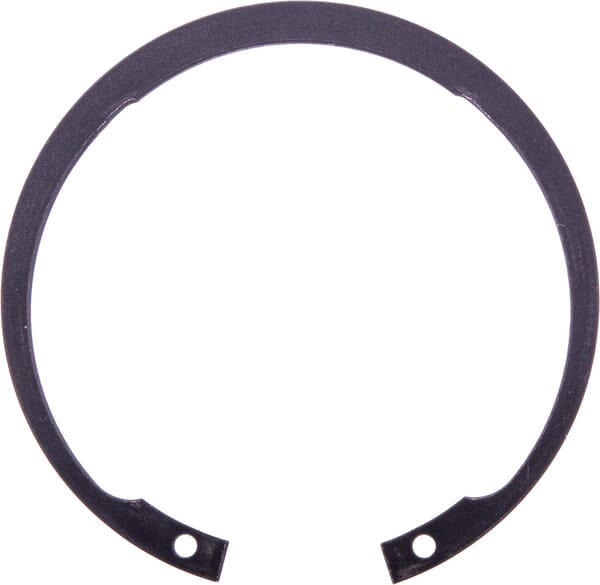

Bondioli&Pavesi Circlip internal 82x2.5mm DIN472 Bondioliand Pavesi 338005000R20
£3.86 excl.
£4.63 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148314

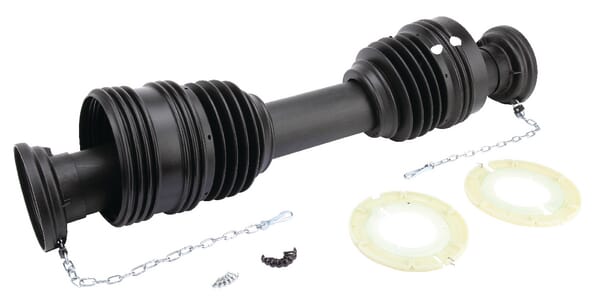

Bondioli&Pavesi Wide-angle guard S9 80°/50° 5CS9121FXWK
£421.82 excl.
£506.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000248170
Bondioli&Pavesi Wide-angle joint S9 CS9GWW49WR7
£1,331.98 excl.
£1,598.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144920

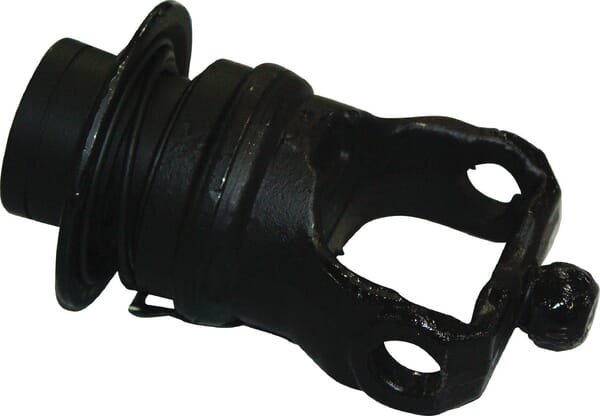

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 8/G8/S8/H8 Bondioliand Pavesi 5730L0384
£305.65 excl.
£366.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000077354

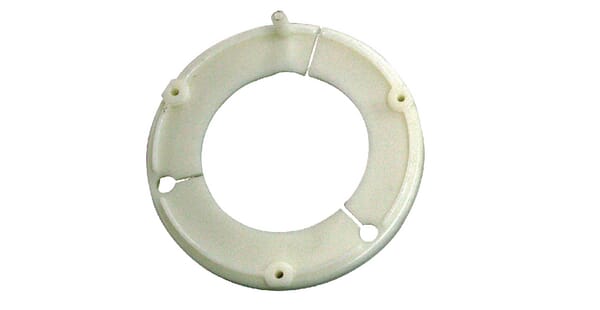

Bondioli&Pavesi Bearing ring S2/4/5 D118 f.I-tube 2550C0002R02
£19.22 excl.
£23.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000068078
Bondioli&Pavesi Yoke, profile tube, 58.5mm, S9 Bondioliand Pavesi 204S96856
£150.85 excl.
£181.02 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000204108

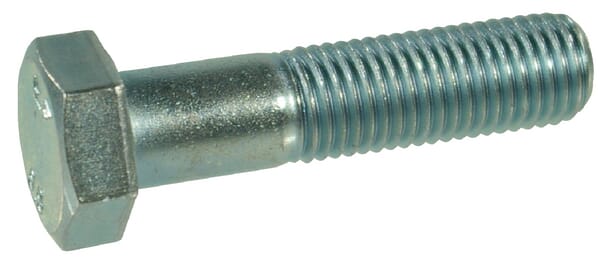

Kramp Hexagon head bolt DIN960 M16x1.50x90 steel zinc-plated 10.9 960161590109
