£226.62
excl. VAT
£271.94 incl. VAT
£271.94
incl. VAT
£226.62 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection inside diameter by machine side | 42 mm |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Max dynamic torque | 3200 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | 7, G8, S8, H8 |
| Share bolts circle radius | 66 |
| Share bolts thread diameter | M10 |
| Share bolts thread length | 50 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5291 g |
| Dimensions | 165 × 140 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000152543

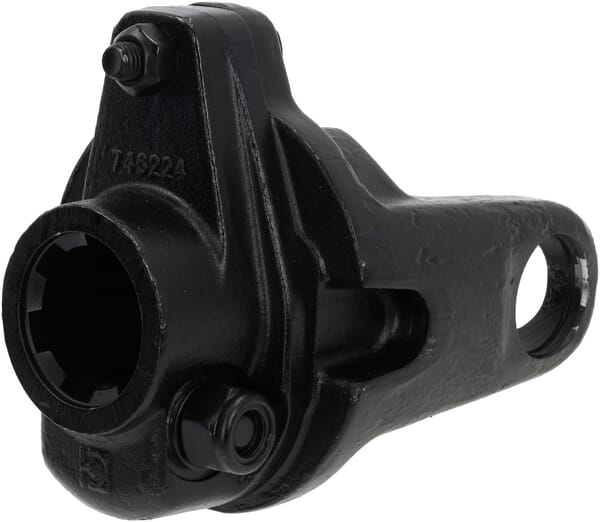

Bondioli&Pavesi Shear bolt clutch G8/S8 3200Nm 6060L0407R
£255.72 excl.
£306.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000066902

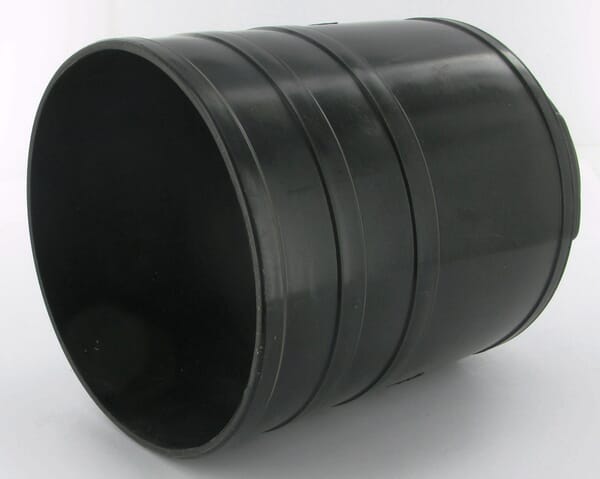

Bondioli&Pavesi Guard cone extra long (4L1) size 3/4, standard 219040004
£32.63 excl.
£39.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000037162
Bondioli&Pavesi Profile tube inner SFT S4 diameter in: 37.2 diameter out: 44.2x3.5mm L: 1m Bondioliand Pavesi 122411000R06
£118.89 excl.
£142.67 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000156840

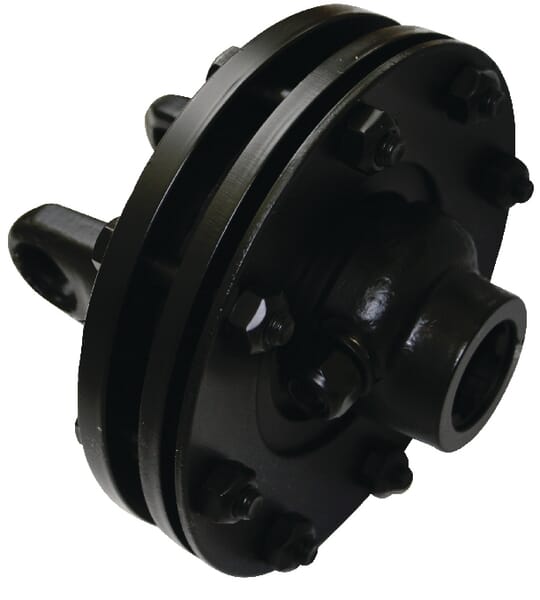

Bondioli&Pavesi Clutch FV32 900Nm 661G41203R
£410.83 excl.
£493.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000112468

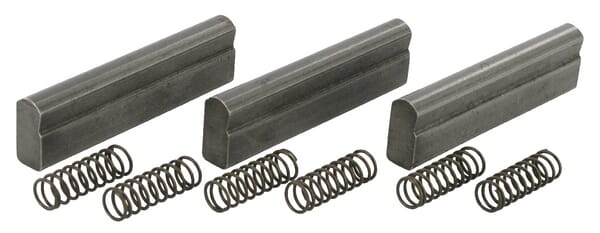

Bondioli&Pavesi Cam and Spring for RA3 421463101R03
£17.72 excl.
£21.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000068075

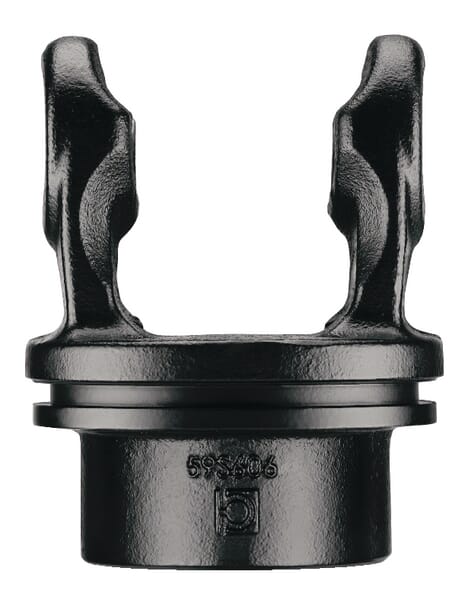

Bondioli&Pavesi Yoke, Profile tube, 58.2mm, S8 Bondioliand Pavesi 204S86853
