£269.68
excl. VAT
£323.62 incl. VAT
£323.62
incl. VAT
£269.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

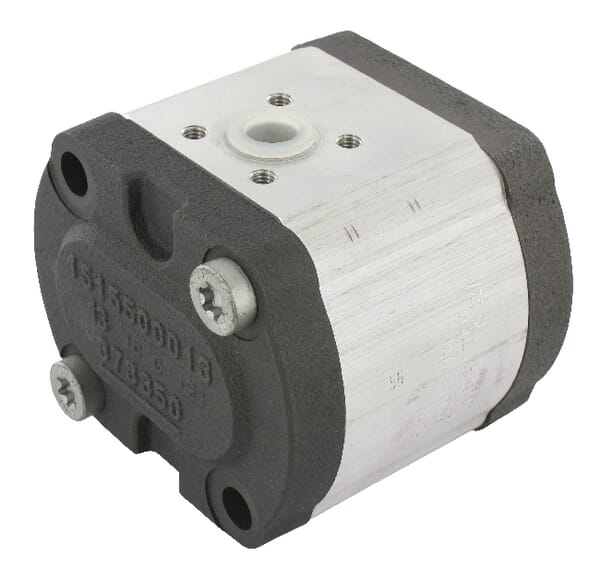

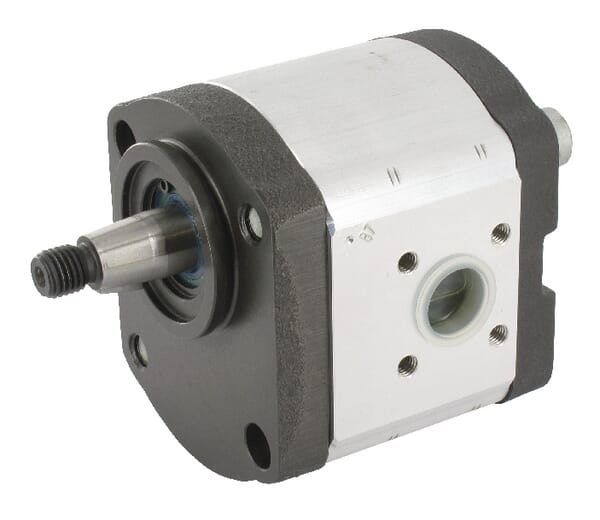

Product details
| Displacement | 11 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 1200 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C00659, 01174516, 1174517, 0510510313, 1174513, 1175656 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Fluo rubber [FPM] |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
| Weight | 2.85 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719607032711 |
|---|---|
| Unit of measure | EA |
| Weight | 2890 g |
| Dimensions | 134 × 100 × 87 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000050495

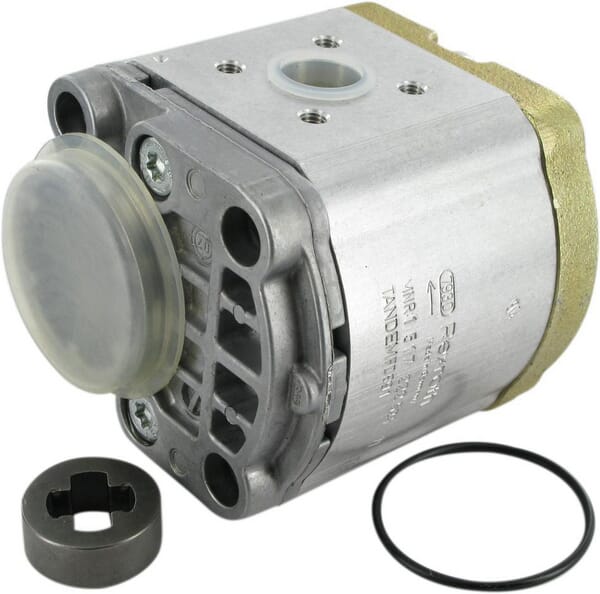

Bosch Rexroth Gear pump AZPF-12-014LNT20MB 1517222524
£597.22 excl.
£716.66 incl.
In stock
Expected to ship on Thursday 17 September
BPA000345732
Bosch Rexroth Coil D36 24V dc 20 W R901393577
£22.47 excl.
£26.96 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000026517

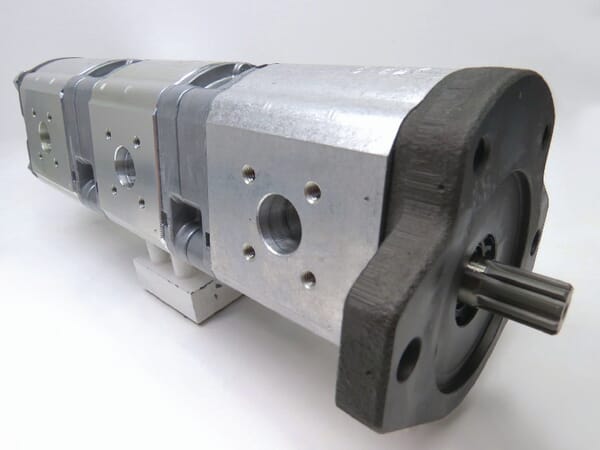

Bosch Rexroth Hydraulic pump AZPFFF-11-022-016-022-L 0510765393
£1,743.15 excl.
£2,091.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026383

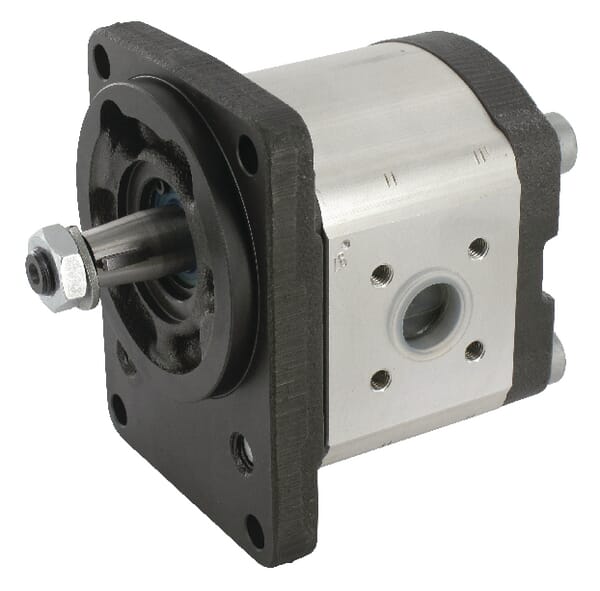

Bosch Rexroth Gear pump AZPF-11-011RSA20MB 0510545001
£583.38 excl.
£700.06 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000026415

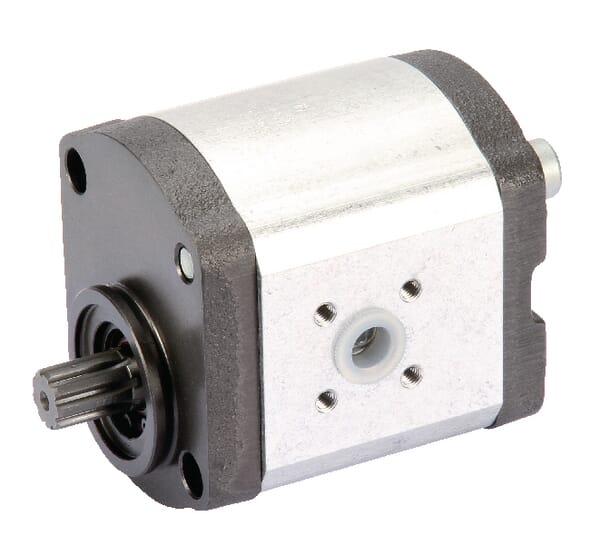

Bosch Rexroth Gear pump AZPF-11-019LFP20PB 0510615353
£428.10 excl.
£513.72 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000026364

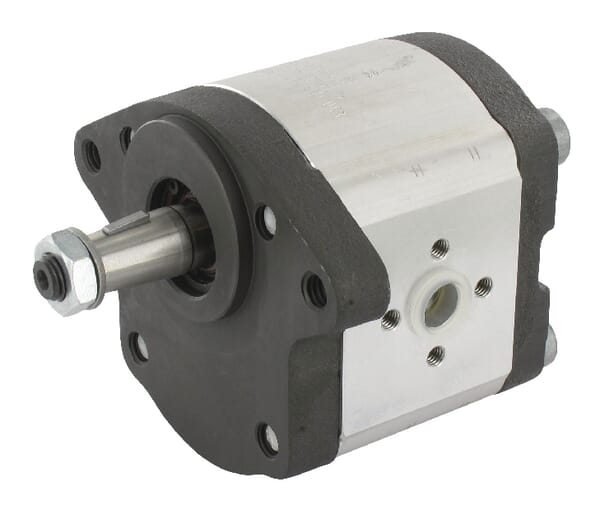

Bosch Rexroth Gear pump AZPF-11-011RHX30KB-S0136 0510525043
