£6.67
excl. VAT
£8.00 incl. VAT
£8.00
incl. VAT
£6.67 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

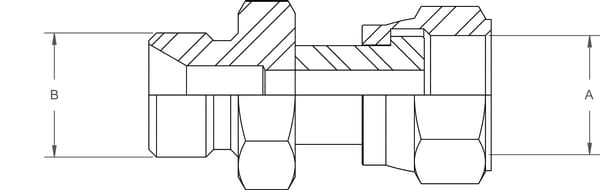

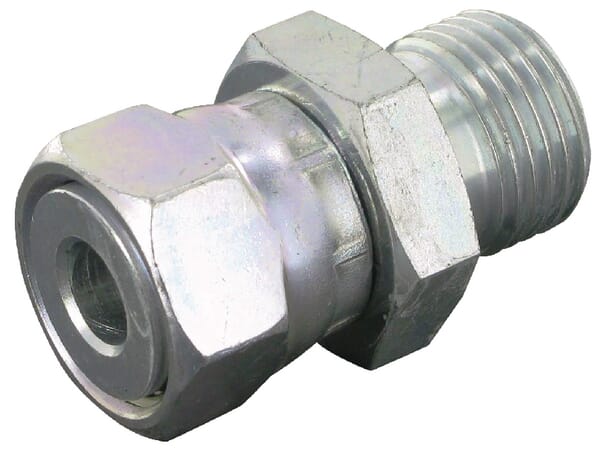

| Connection 1, thread diameter | 1/2 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 13/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 340 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request, Male thread BSP with cone 60°, Female thread gland ORFS |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | 8719607077958 |
|---|---|
| Unit of measure | EA |
| Weight | 112 g |
| Dimensions | 46 × 30 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000393384

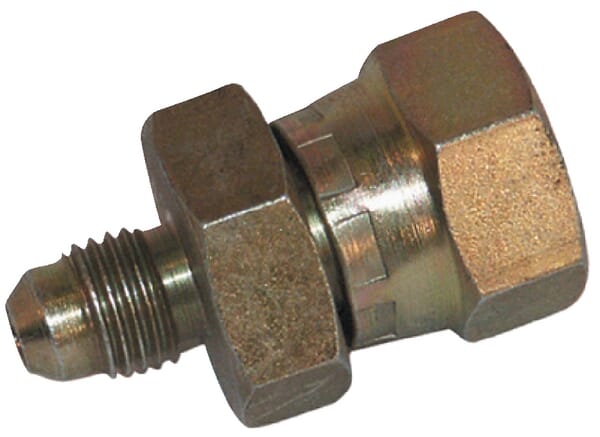

Burnett & Hillman Adaptor M/F 9/16 JIC x 3/8 BSP VNJBW0906
£4.56 excl.
£5.47 incl.
In stock
Expected to ship on Friday 18 September
BPA000236084

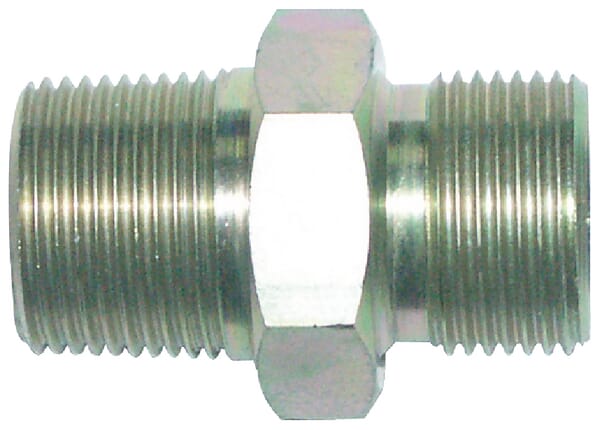

Burnett & Hillman Adaptor M/M 3/4 BSPT BM12BMT12
£4.55 excl.
£5.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000393421
Burnett & Hillman Adaptor M/F 9/16 x 3/4 JIC VNJW0912
£4.70 excl.
£5.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000269859

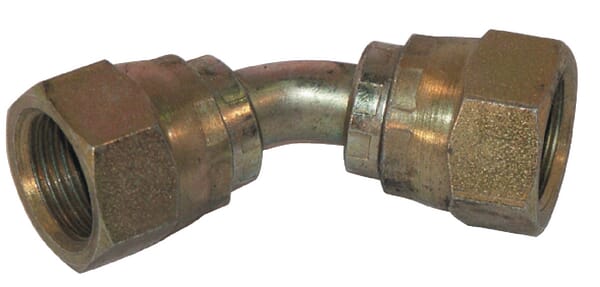

Burnett & Hillman Swept elbow F/F 3/8BSP 45° FF4506B
£8.13 excl.
£9.76 incl.
In stock
Expected to ship on Friday 18 September
BPA000349235

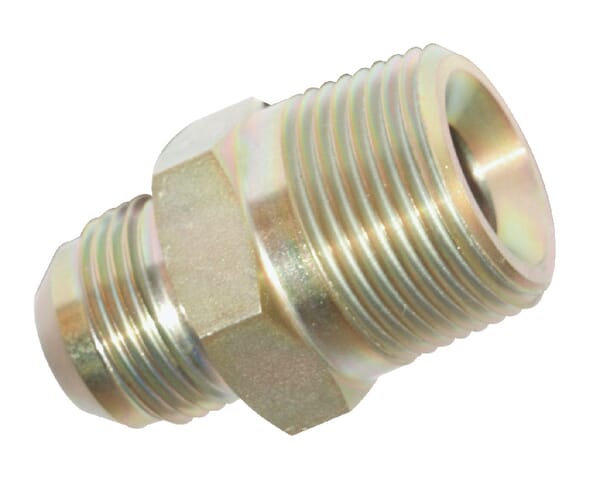

Burnett & Hillman Male stud 9/16 JIC x 3/8 NPT RIN0906
£2.28 excl.
£2.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000393367

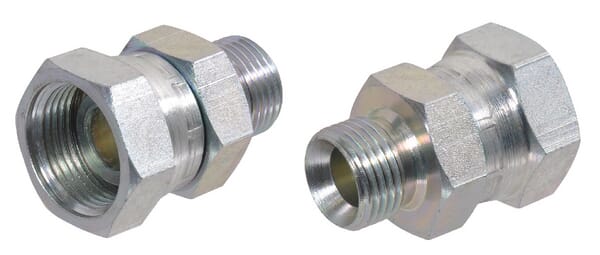

Burnett & Hillman Adaptor 2 x 1-1/2 BSP VNBW3224
£56.90 excl.
£68.28 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000045170
Raaco Assortment box 354x323x55mm, 8l capacity, blue polypropylene, Boxxser 55 6x6 138321
£62.95 excl.
£75.54 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026249
Wera Torque wrench X1 2,5-25 Nm 05075651001
£236.37 excl.
£283.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000269637

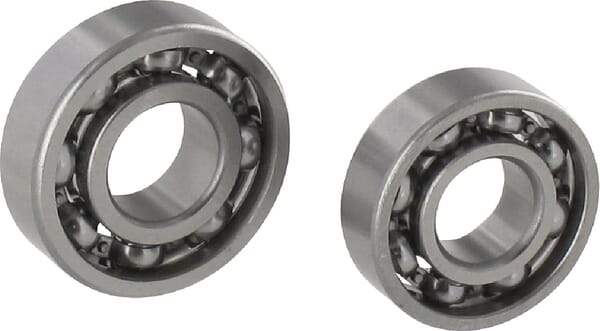

Non Original Crankshaft bearing set 10x12x8 FGP008245
£1.77 excl.
£2.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000245544

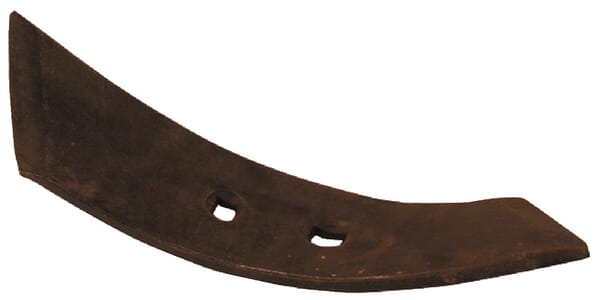

Non Original Cultivator point 305x64x10mm, reversible left hardened, curved, 2 hole CP007541
