£4.17
excl. VAT
£5.00 incl. VAT
£5.00
incl. VAT
£4.17 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| C1Connection no 1 length | 21.94 mm |
|---|---|
| CHConnection no 1 wrench size | 30.0 mm |
| Connection 1, thread diameter | 1-1/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, length | 21.95 mm |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection centre to insert distance | 48 mm |
| Connection no 1 diameter | 18 mm |
| Inside diameter side 1 | 11.1 mm |
| Inside diameter side 2 | 15.5 mm |
| Max working pressure | 240 BAR |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 118 g |
| Dimensions | 53 × 31 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000371653

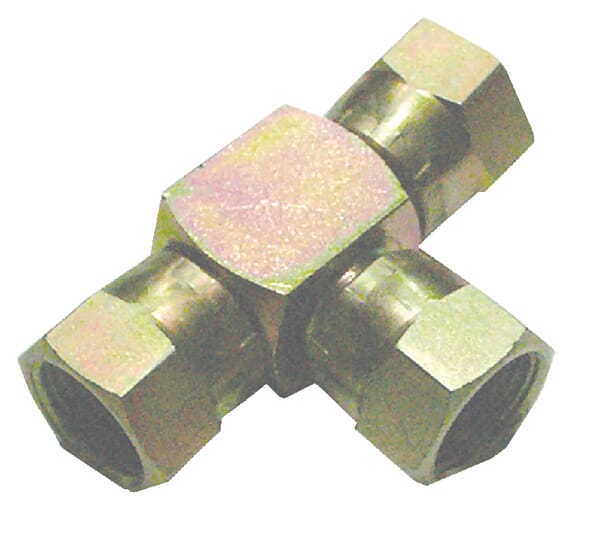

Burnett & Hillman T piece F 3/4 JIC TJ12FBH
£15.34 excl.
£18.41 incl.
In stock
Expected to ship on Friday 18 September
BPA000393431

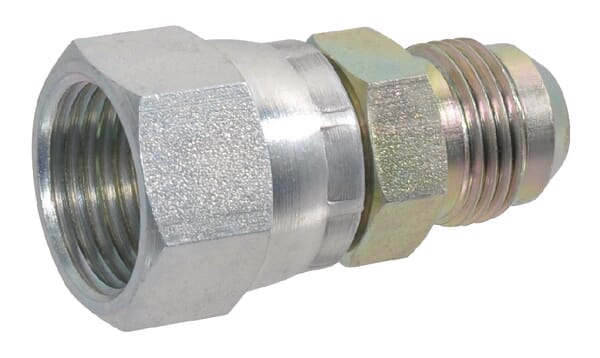

Burnett & Hillman Adaptor JIC MJ7/8-FJ1"1/16 VNJW1417
£8.68 excl.
£10.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000393217
Burnett & Hillman Adaptor M 3/8 BSP x 3/8 NPT VNBN06
£2.41 excl.
£2.89 incl.
In stock
Expected to ship on Friday 18 September
BPA000253480

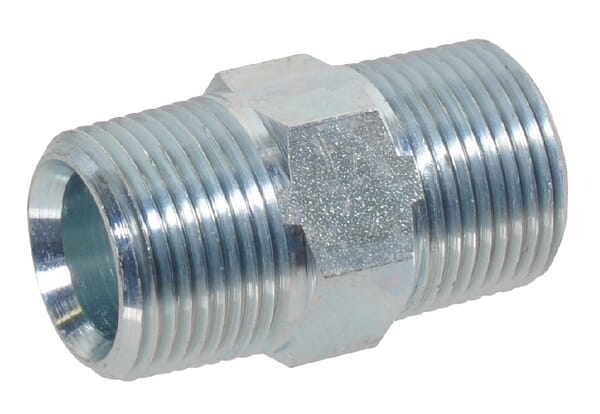

Burnett & Hillman Adaptor 1/2 NPT DNN08
£4.03 excl.
£4.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000269928

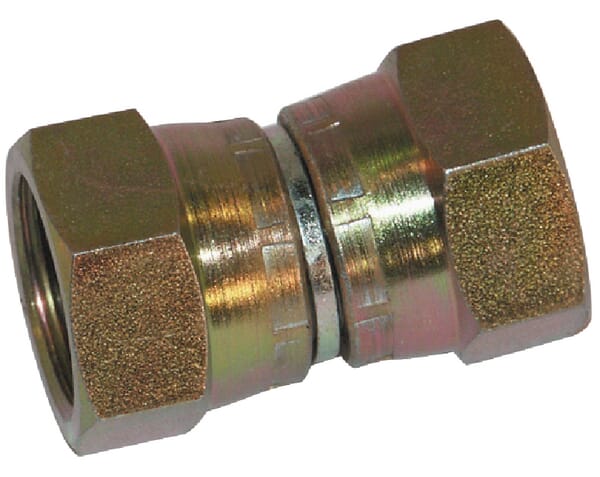

Burnett & Hillman Adaptor F/F 1/2x7/8 BSP/JIC FFBJ0814
£6.67 excl.
£8.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000393269

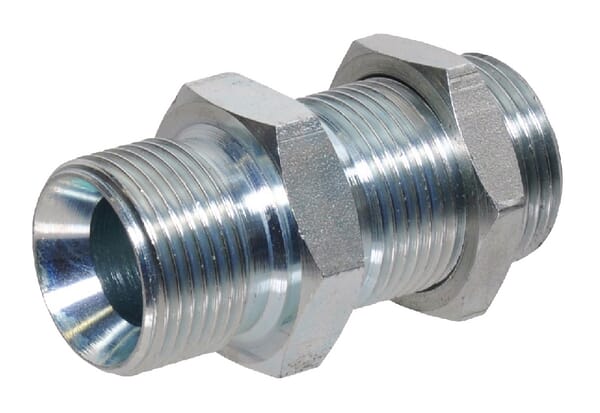

Burnett & Hillman Bulkhead M/M 3/4 BSP VNBS12
