£4.25
excl. VAT
£5.10 incl. VAT
£5.10
incl. VAT
£4.25 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| C1Connection no 1 length | 13.97 mm |
|---|---|
| C1Connection no 1 thread length | 14 mm |
| CHConnection no 1 wrench size | 27.0 mm |
| Connection 1, thread diameter | 1/2 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection centre to insert distance | 37.3 mm |
| Connection no 1 diameter | 8 mm |
| Inside diameter side 1 | 11.1 mm |
| Inside diameter side 2 | 5.9 mm |
| Max working pressure | 315 BAR |
| Pipe diameter | 5/8 Inch |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 40 × 30 × 30 mm |
| Dangerous goods | No |
You might also like

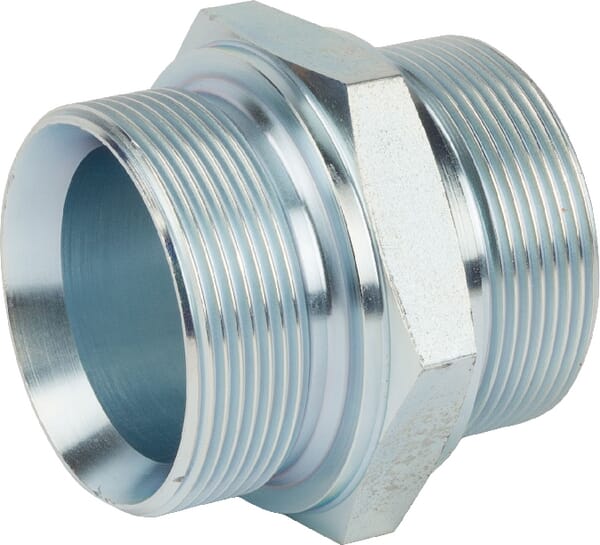

BPA000253435
Burnett & Hillman Adaptor 2 BSP 3852A DNB32A
£26.67 excl.
£32.00 incl.
Backorder available
Usually ships within 3–8 weeks

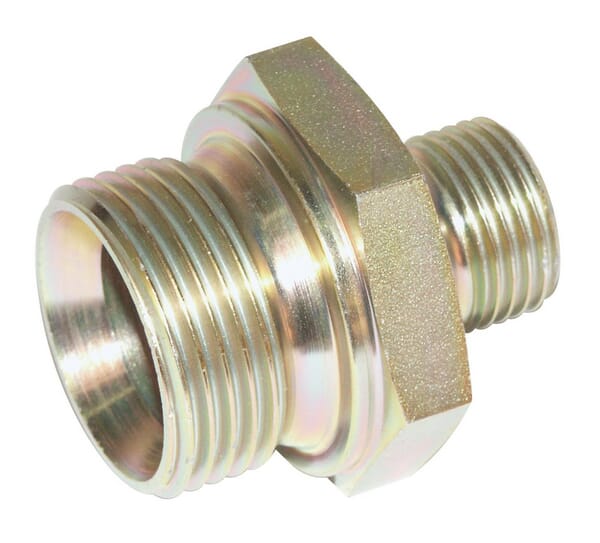

BPA000393443
Burnett & Hillman Adaptor M M12 x M10 VNM1210
£3.74 excl.
£4.49 incl.
In stock
Expected to ship on Friday 18 September

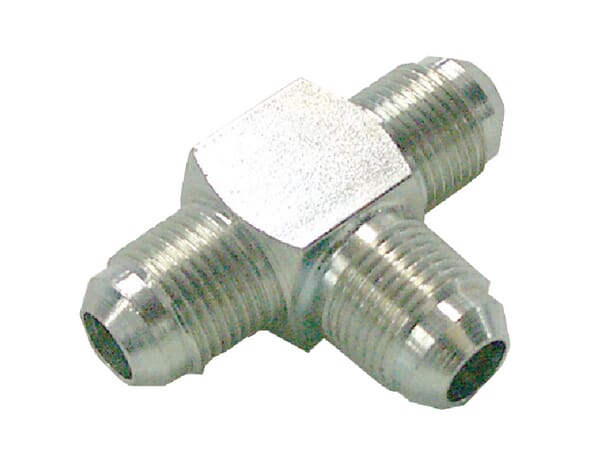

BPA000371655
Burnett & Hillman T piece M 7/8 JIC TJ14MBH
£17.03 excl.
£20.44 incl.
In stock
Expected to ship on Friday 18 September

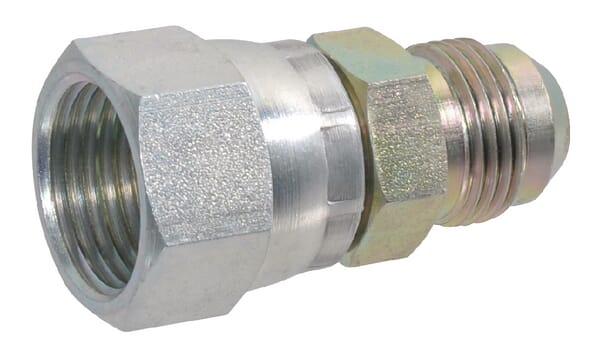

BPA000393428
Burnett & Hillman Adaptor M/F 3/4 x 1-1/16 JIC VNJW1217
£9.72 excl.
£11.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000251623
Burnett & Hillman Double Cone Metric 20mm DC20M
£15.23 excl.
£18.28 incl.
Backorder available
Usually ships within 3–8 weeks

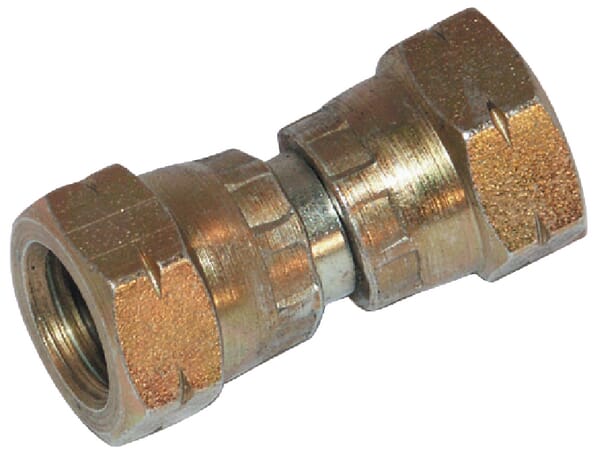

BPA000270024
