£272.39
excl. VAT
£326.87 incl. VAT
£326.87
incl. VAT
£272.39 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

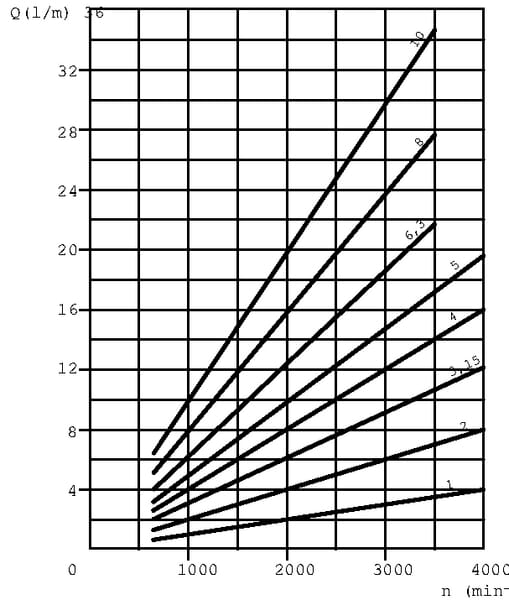

| Displacement | 2.13 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |

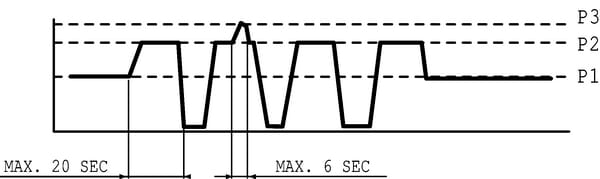

| Max. continous working pressure | 260 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 290 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |

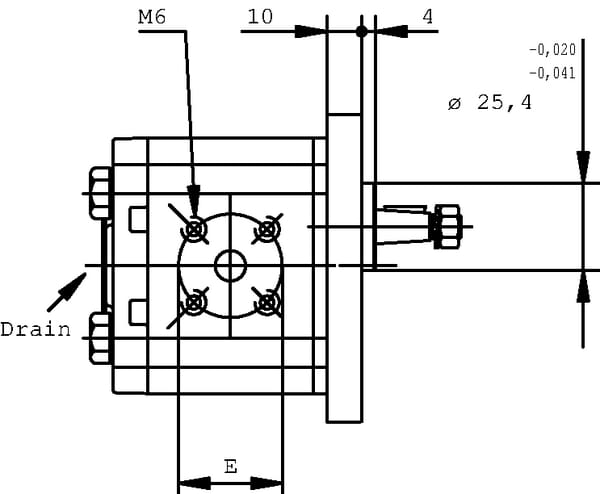

| Mounting diameter | 25.4 mm |

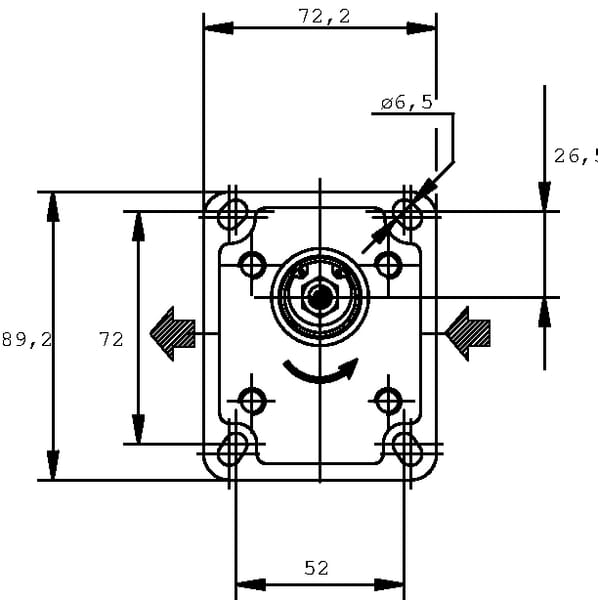

| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |

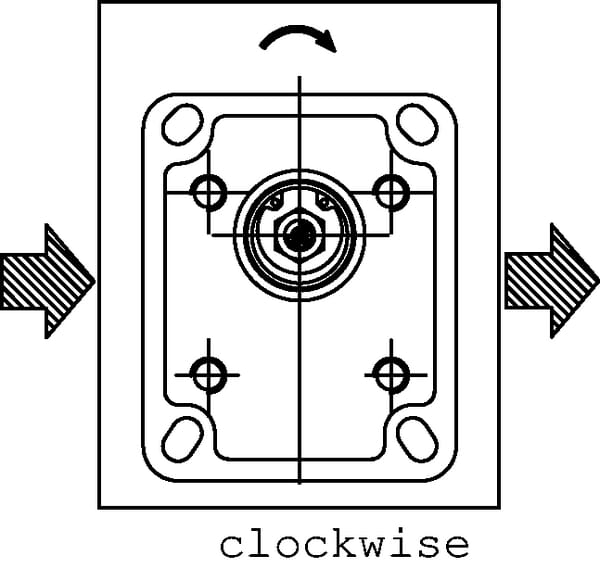

| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |

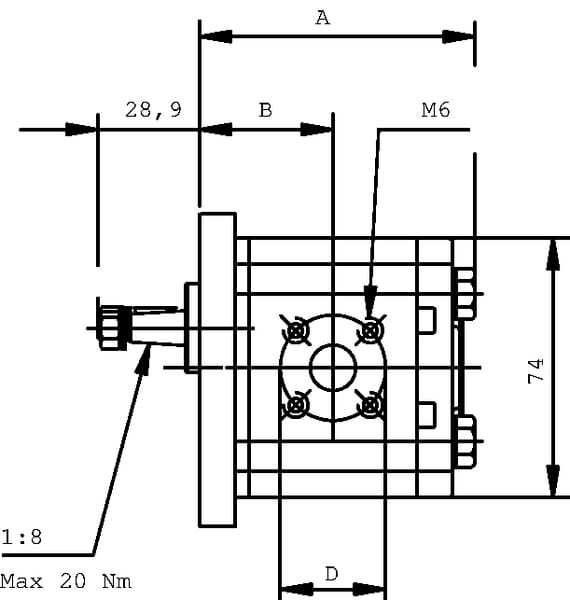

| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 882 g |
| Dimensions | 98 × 89 × 73 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340222
Casappa Pump PLP20.11-D3-55-E2 PLP2011D355B2
£461.47 excl.
£553.76 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340663

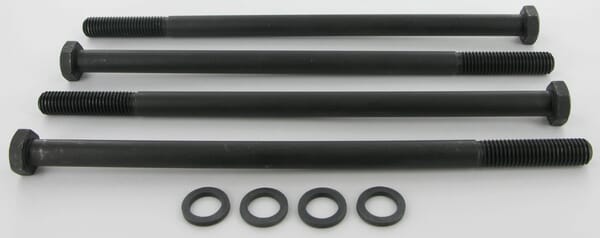

Casappa Tie bolts polaris 30 M12x245 PLP930M12245
£39.07 excl.
£46.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301010
Casappa Motor KM 20.16 RO-82E2-LEB/EA KM2016R82E2
£564.79 excl.
£677.75 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340195

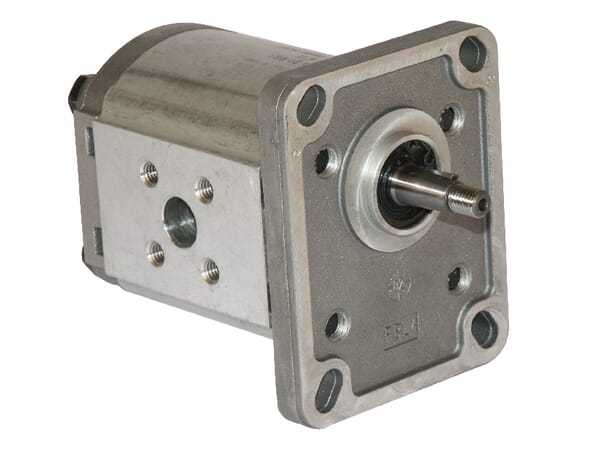

Casappa Pump PLP10.5 D0-81E1-LBB/BA-N- PLP105D081E1
£214.39 excl.
£257.27 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340418
Casappa Pump PLP30.34D0-83E3-LED/EB-N-FS PLP3034D083E3
£597.15 excl.
£716.58 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340371

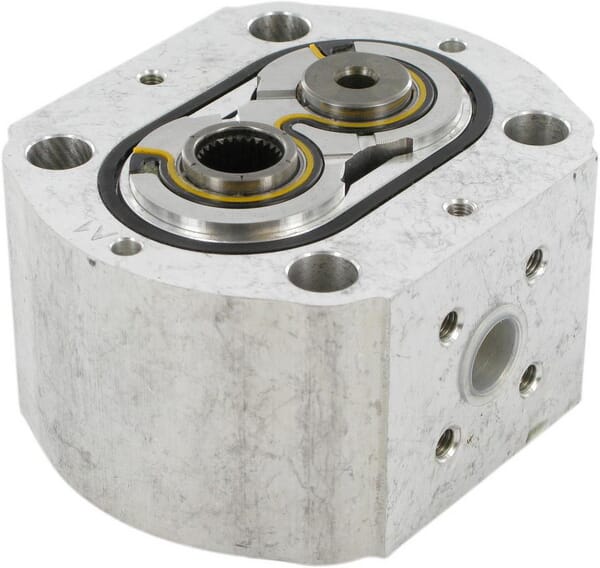

Casappa Tandem Pump PLP20.6,3-D0-86-S6-LBE/BC-N-I-FS PLP206DIIB
