£322.14
excl. VAT
£386.57 incl. VAT
£386.57
incl. VAT
£322.14 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Connection port to flange distance | 60.8 mm |
|---|---|
| Displacement | 24.84 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | S1 |
| Flange type norm | SAE-A |
| Housing length | 125.1 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.95 mm |
| Shaft number of teeth | 10 |
| Shaft thread diameter | n/a |
| Shaft type | Splined 10T |
| Shaft type code | 01 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3133 g |
| Dimensions | 110 × 128 × 162 mm |
| Dangerous goods | No |
You might also like
Free shipping

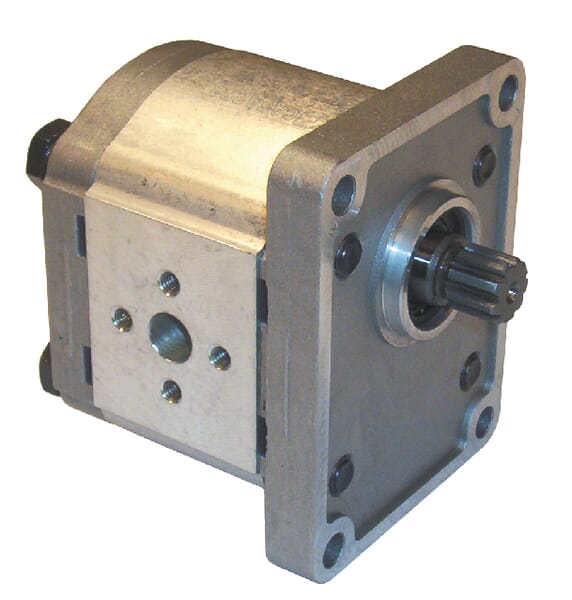

BPA000340364
Casappa Pump PLP20.6,3D0-12E2-LEA/EA-N PLP206D012E2
£284.89 excl.
£341.87 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000344304
Casappa Gear Pump PHP20.23DO-82E2-LEB/ PHP2023D082E2FS
£438.20 excl.
£525.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

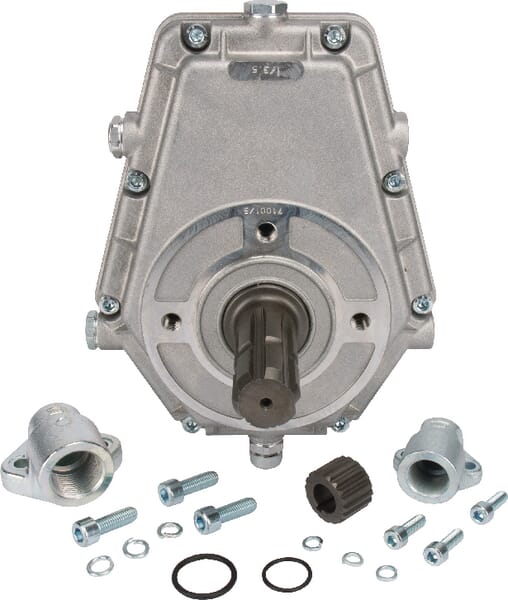

BPA000340445
Casappa Gearbox with pump group 3 51cc PLP3051GBF30135KIT
£947.85 excl.
£1,137.42 incl.
In stock
Expected to ship on Thursday 17 September

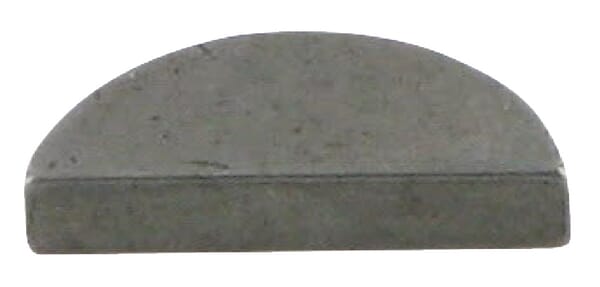

BPA000340516
Casappa Woodruff key PLP/PLM 20-82 PLP92025
£1.47 excl.
£1.76 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340329
Casappa Pump PLP20.25S0-12E2-LEB/EA-N- PLP2025S012E2
£360.35 excl.
£432.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

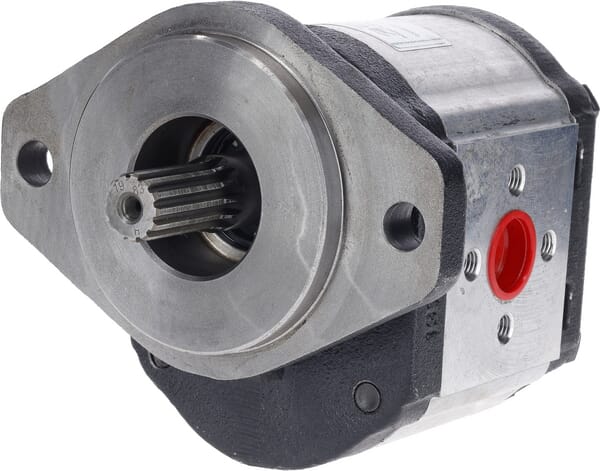

BPA000340409
