£340.66
excl. VAT
£408.79 incl. VAT
£408.79
incl. VAT
£340.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 51.8 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 14.53 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 108.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 500 r/min |

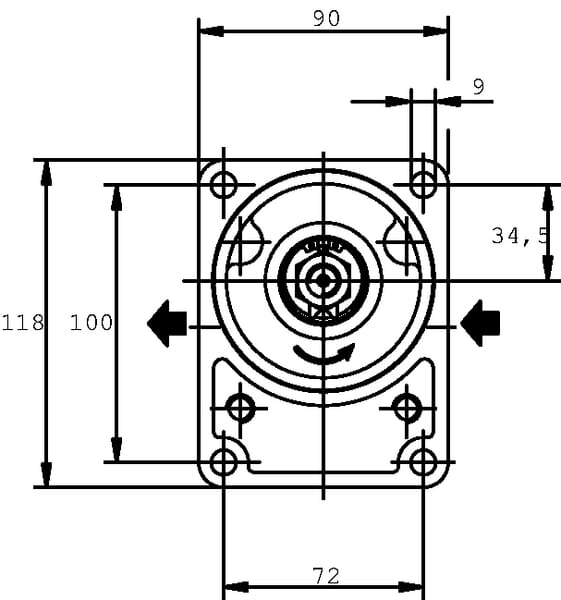

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2658 g |
| Dimensions | 147 × 120 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000286818

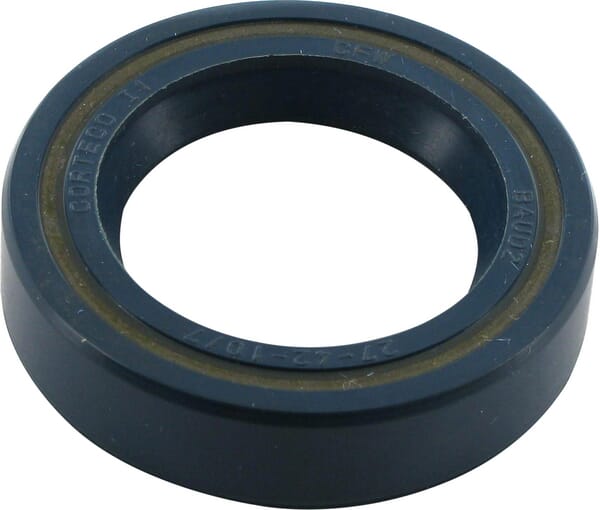

Casappa Oil seal 27X42X10 Motor Gr.3 GR35927
£7.87 excl.
£9.44 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279316

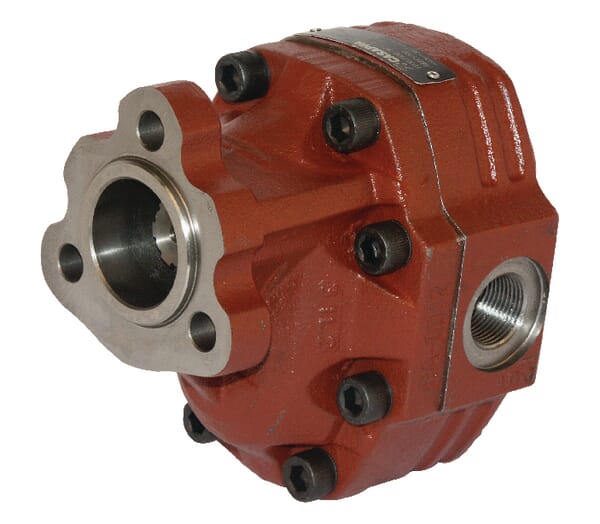

Casappa Pump FP30.17D0-19T1-LGD/GD-N FP3017D
£582.44 excl.
£698.93 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340273
Casappa Pump PLP20.16D0-82E2-LEB/EA-N- PLP2016D082E2
£240.83 excl.
£289.00 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340144
Casappa Seal kit PLM20-53S1-R-D(RNS) PLM92053S1AFD
£34.14 excl.
£40.97 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340388

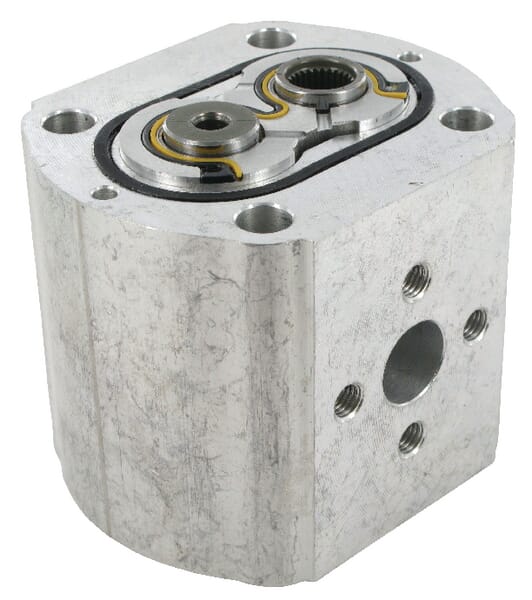

Casappa Pump PLP20.8D0-xxS7-Lxx/GD-S7-N-EL-P FS PLP208D0LXXGDS7NEL
£235.03 excl.
£282.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340288

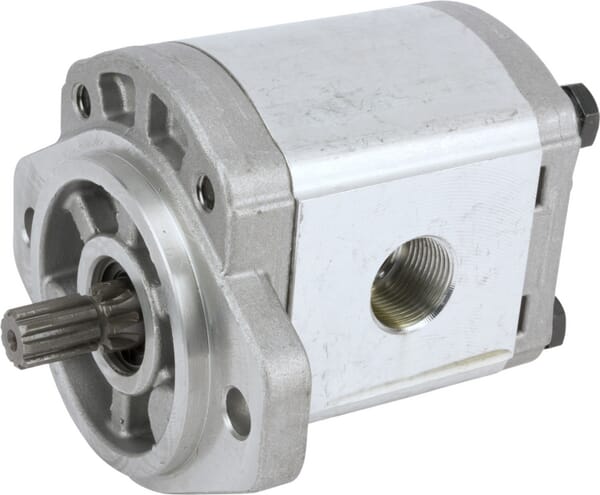

Casappa Pump PLP20.19D0-03S1-LGE/GD-N PLP2019D003S1
