£474.25
excl. VAT
£569.10 incl. VAT
£569.10
incl. VAT
£474.25 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 107.5 mm |
| Housing material | Aluminium |
| Long description | Polaris 0-04S5 |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5470 g |
| Dimensions | 180 × 180 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340047

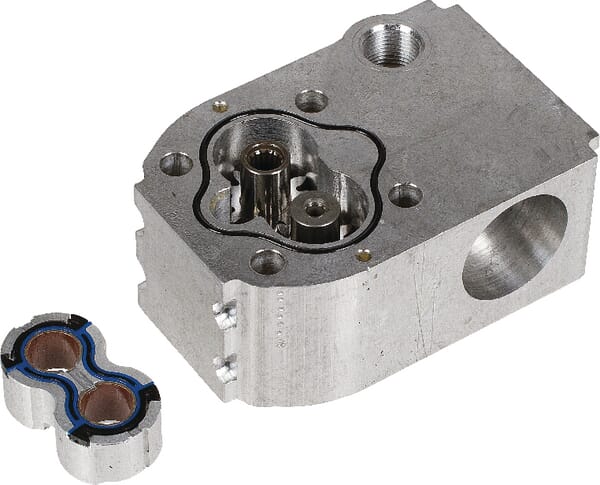

Casappa Flow Divider Section 11.2 PLD92011
£318.00 excl.
£381.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340273

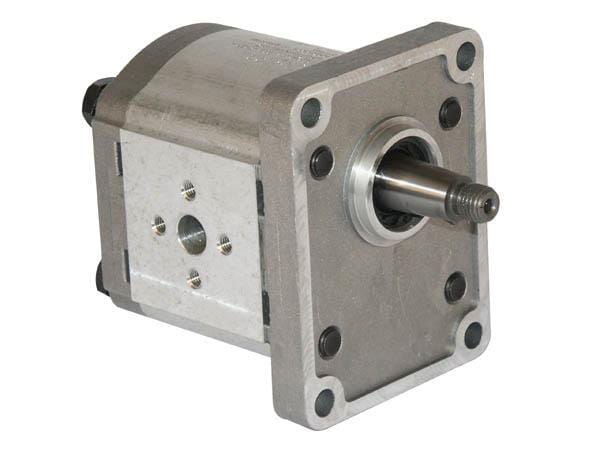

Casappa Pump PLP20.16D0-82E2-LEB/EA-N- PLP2016D082E2
£240.83 excl.
£289.00 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340652

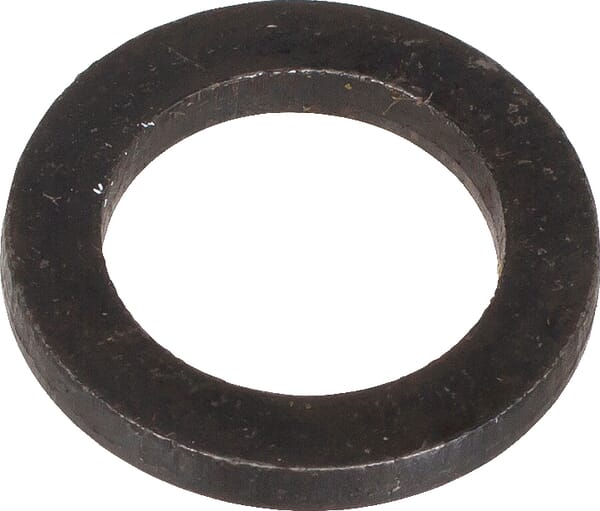

Casappa Washer M12x20mm DIN 9021 PLP930M12
£0.14 excl.
£0.17 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340608

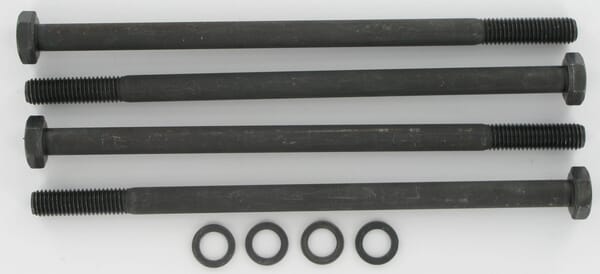

Casappa Tie bolts polaris 20 M10x195 PLP920M10195
£17.71 excl.
£21.25 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340512

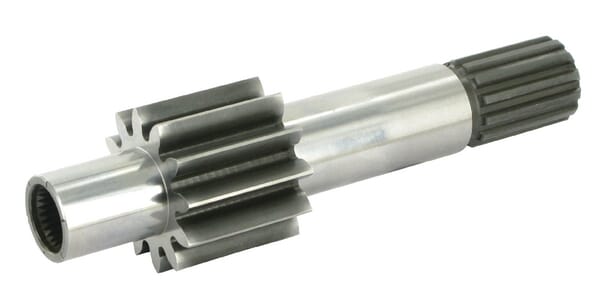

Casappa Drive shaft 20 cc 04/FS PLP9202004FS
£179.45 excl.
£215.34 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340315

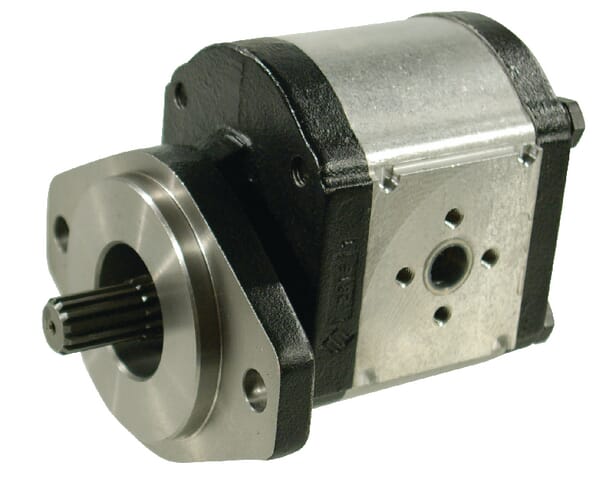

Casappa Pump PLP20.25D004S5-LEB/EANFS PLP2025D004S5
