£306.62
excl. VAT
£367.94 incl. VAT
£367.94
incl. VAT
£306.62 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

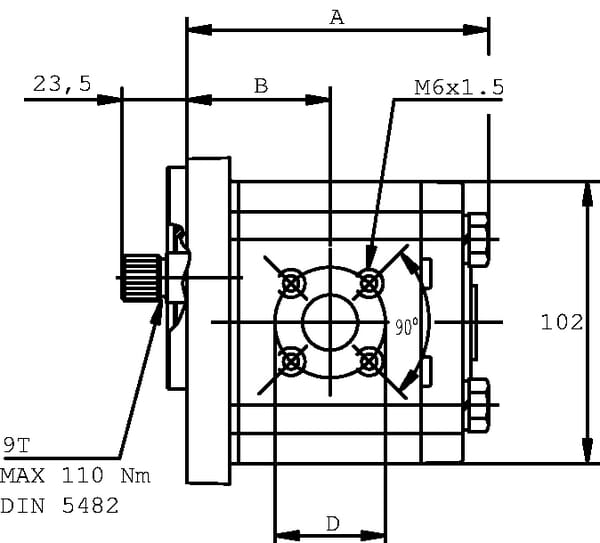

| BConnection port to flange distance | 44.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 4.95 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |

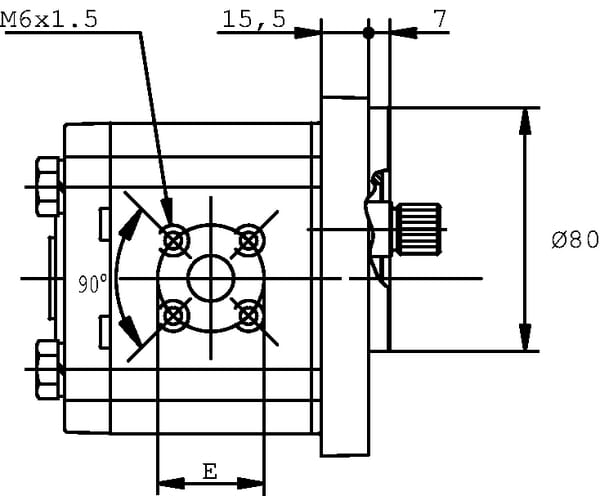

| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 93.8 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 80 mm |

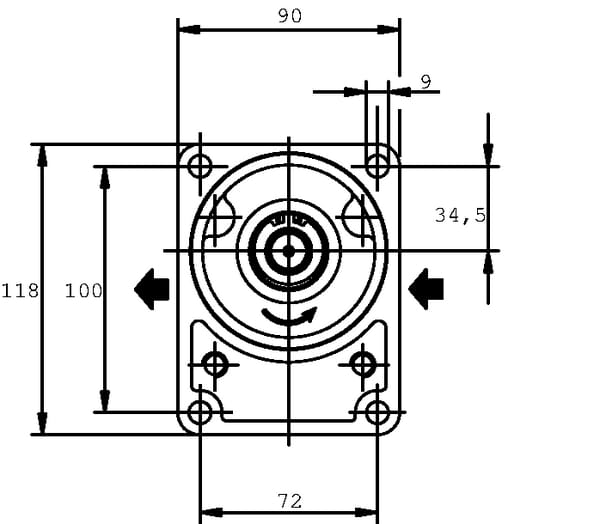

| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2338 g |
| Dimensions | 121 × 118 × 121 mm |
| Dangerous goods | No |
You might also like
BPA000340674

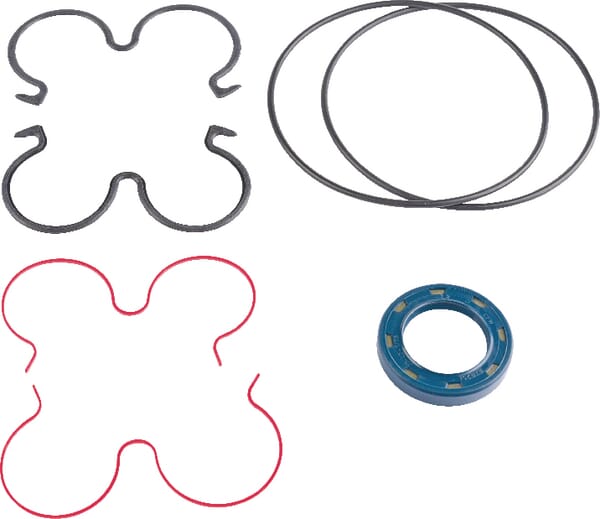

Casappa Seal kit Polaris 30-84E4 PLP93584E4
£33.88 excl.
£40.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340026

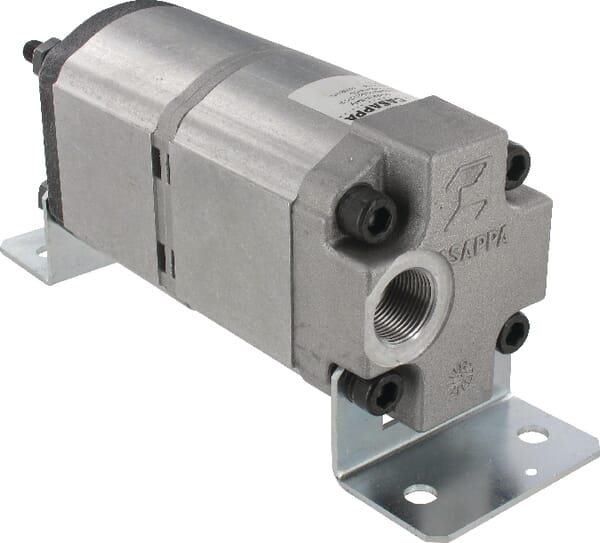

Casappa Rotary flow divider Polaris 20 PLD20214
£939.70 excl.
£1,127.64 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340318

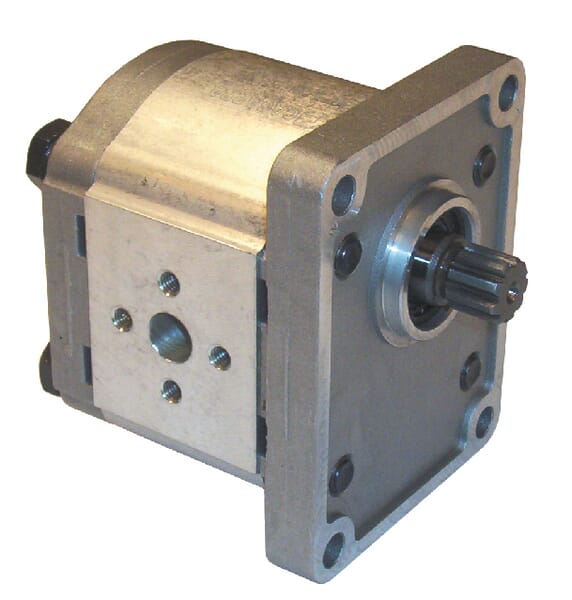

Casappa Pump PLP20.25 -D0-12E-LEB/EA-N PLP2025D012E2
£363.17 excl.
£435.80 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340115

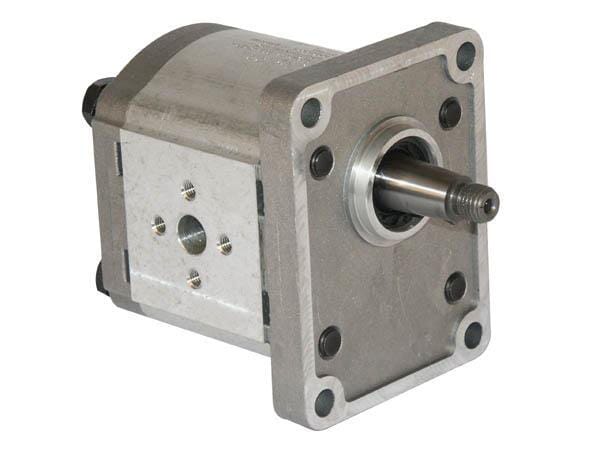

Casappa Gear motor PLM20.8R082E2DHKR PLM208R82E2DHKR
£434.55 excl.
£521.46 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340322

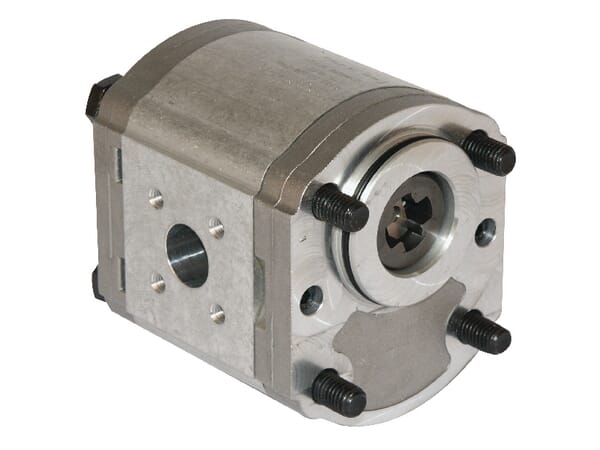

Casappa Pump PLP20.25D0-95B6-LBE/BC-N-E PLP2025D095B6
