£324.06
excl. VAT
£388.87 incl. VAT
£388.87
incl. VAT
£324.06 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

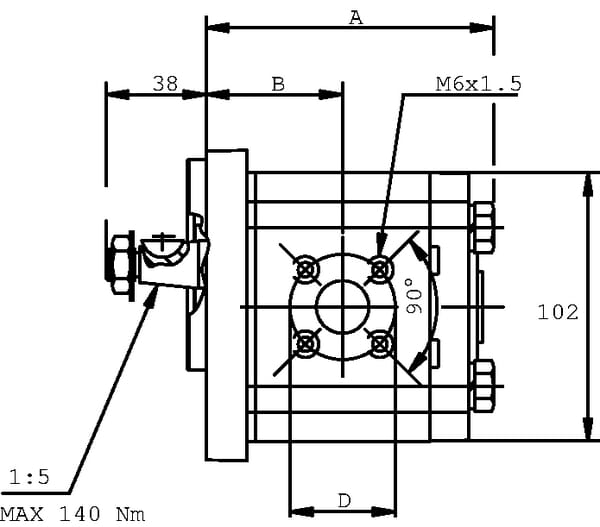

| BConnection port to flange distance | 47 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |

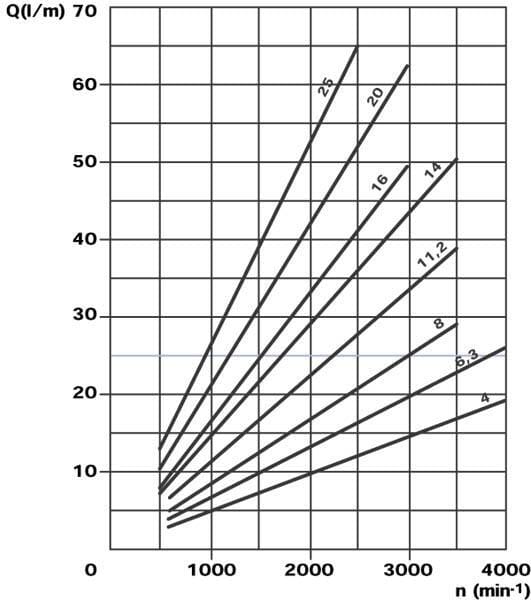

| Displacement | 8.26 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 98.8 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |

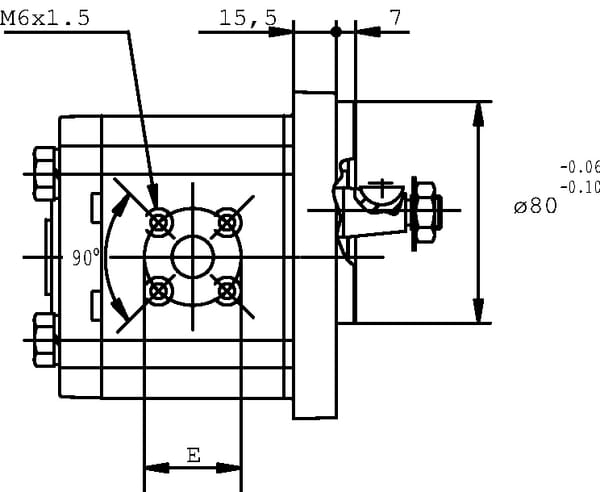

| Mounting diameter | 80 mm |

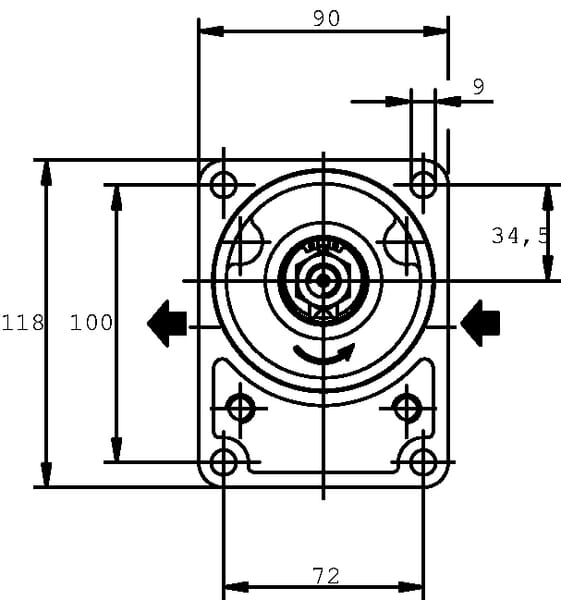

| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2500 g |
| Dimensions | 120 × 130 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340333

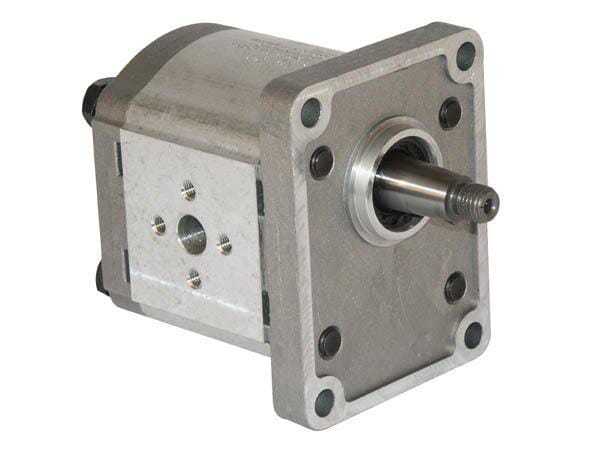

Casappa Pump PLP20.25S0-82E2-LEB/EA-N- PLP2025S082E2
£380.80 excl.
£456.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000340471
Casappa Front cover pl. 10-E1/AL C PLP910E1ALC
£28.37 excl.
£34.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279388

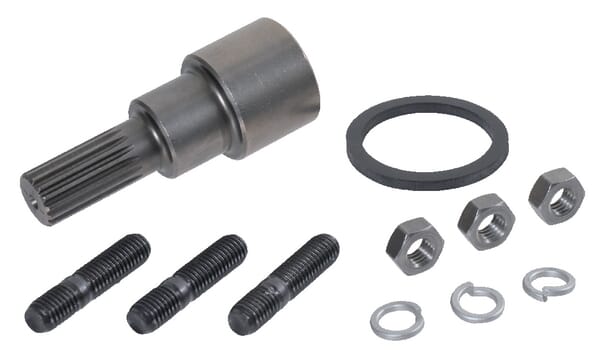

Casappa Koppelset KIT56M2 (FP30/FP30) FP93056M2
£96.63 excl.
£115.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301274

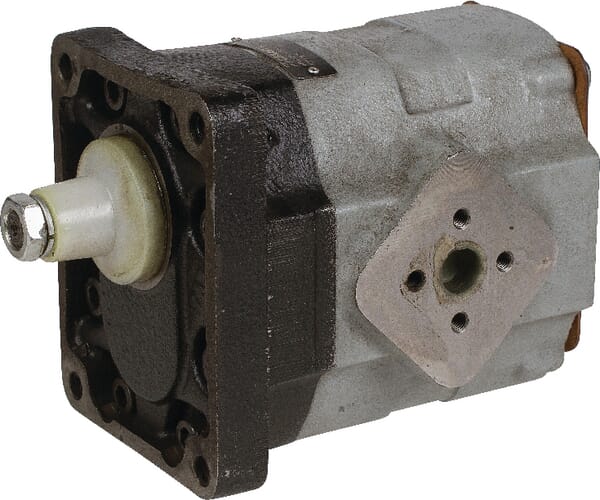

Casappa Gear Pump KP30.61DO-83E3-LE KP3061DI2
£1,029.77 excl.
£1,235.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340113

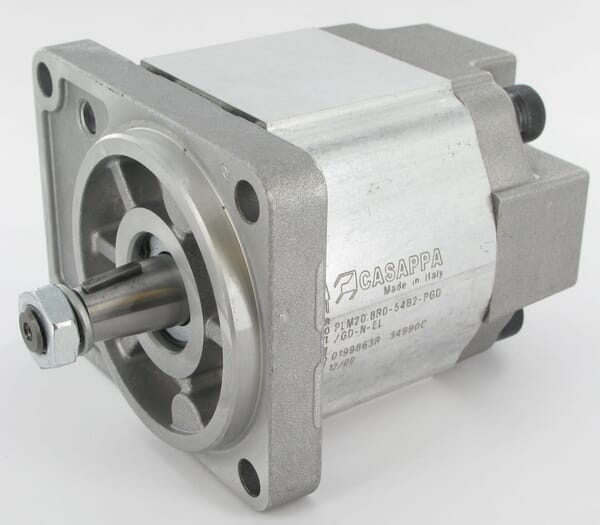

Casappa Motor PLM20.8R0-54B2-PGD/GD-N-EL-GB PLM208R054B2
£413.22 excl.
£495.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000340664

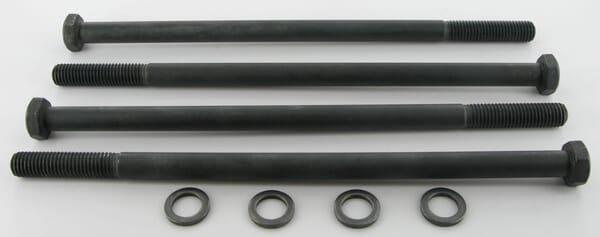

Casappa Tie bolts polaris 30 M12x250 PLP930M12250
