£732.12
excl. VAT
£878.54 incl. VAT
£878.54
incl. VAT
£732.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 43.98 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 230 BAR |
| Max intermittend working pressure | 250 BAR |
| Max pressure peak | 260 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Low pressure |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11398 g |
| Dimensions | 285 × 152 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340533

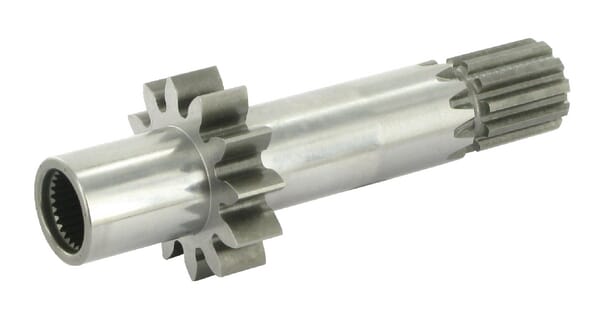

Casappa Drive shaft 06 cc 07/FS PLP9206307FS
£157.13 excl.
£188.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340072

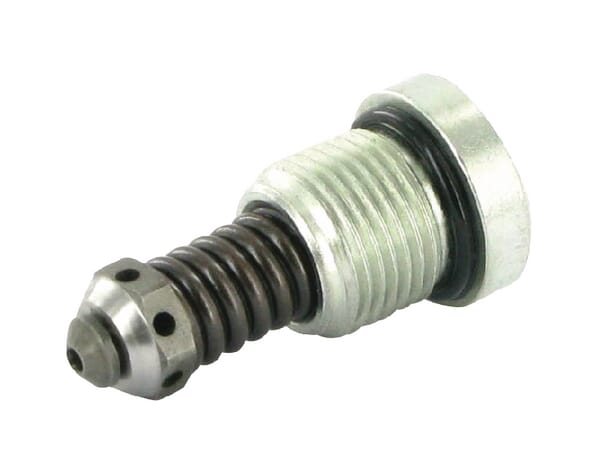

Casappa Cartridge PLC051-230Bar PLD10/ PLD920VPE230
£79.79 excl.
£95.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340640

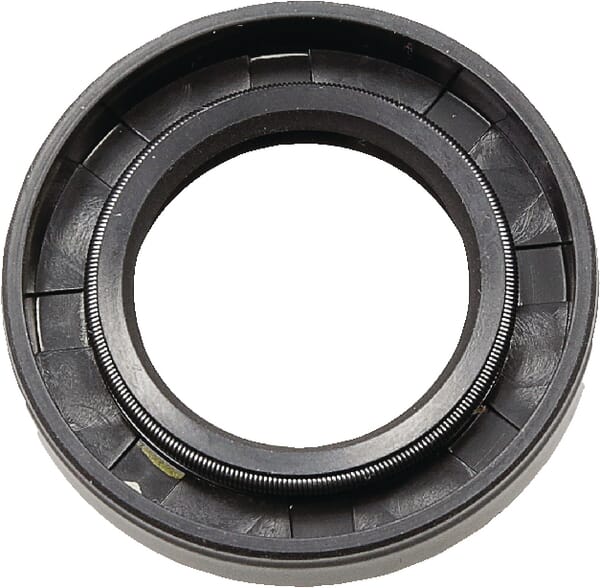

Casappa Seal 24X40 GR.3 PLP93010
£7.95 excl.
£9.54 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340652
Casappa Washer M12x20mm DIN 9021 PLP930M12
£0.14 excl.
£0.17 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340347

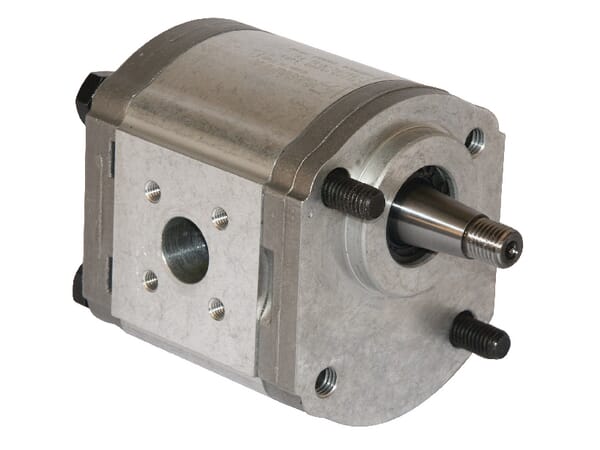

Casappa Pump PLP 20.4 -D0 54-B5 LBC/BE PLP204D054B5
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340493

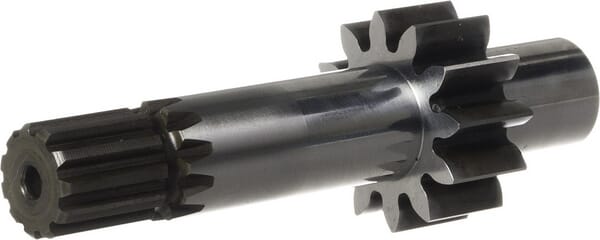

Casappa Drive shaft 11 cc 07/FS PLP92011207FS
