£603.70
excl. VAT
£724.44 incl. VAT
£724.44
incl. VAT
£603.70 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Loader wagons |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint bush diameter by tractor side - longer part | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 95.4 mm |
| Cross joint length by tractor side - longer part | 101.4 mm |
| Inner tube large outside diameter | 45.6 mm |
| Inner tube wall thickness | 4.3 mm |
| Length | 910 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Wide-angle CvJ PTO drive shafts complete 80° series T CvJ-60 |
| Max dynamic torque | 1450 N·m |
| Original number equivalent | 78610910EN00209304 |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 3.7 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Profile tube shape | Triangular |
| Properties | Tractor-side 1–3/8" (6) shaft collar kit, Device-side 1–3/8" (6) slide pin, Lubrication interval: 8 hours, CE marking available |
| Size code | T CvJ 60 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only reach 80º briefly, Refer to the Comer instruction manual, Max. dynamic capacity 540 rpm: 47 kW, 830 Nm, Max. dynamic capacity 1000 rpm: 74 kW, 710 Nm, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25500 g |
| Dimensions | 1200 × 220 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000047969

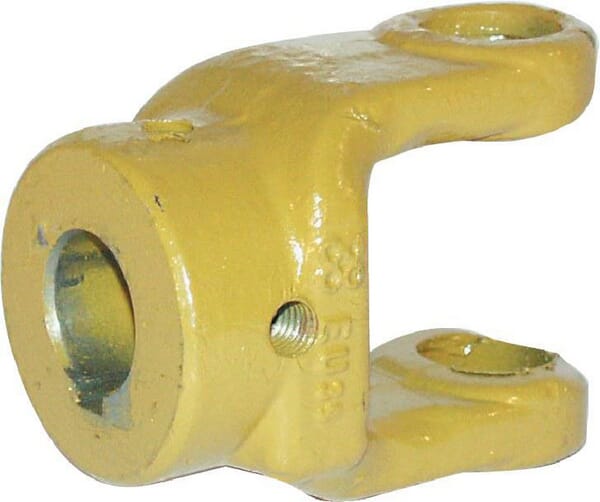

Comer Yoke, Hub, 35mm, T40/V40 151014064
£173.49 excl.
£208.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000057721

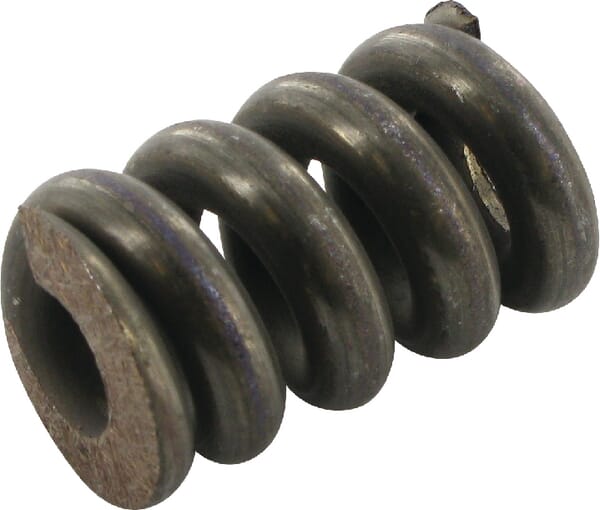

Comer Spring 6x23x37mm 180014022
£6.72 excl.
£8.06 incl.
In stock
Expected to ship on Thursday 17 September
BPA000190973
Comer O-ring 168.3x6.9mm 70 shore black 87602702
£2.56 excl.
£3.07 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000047938

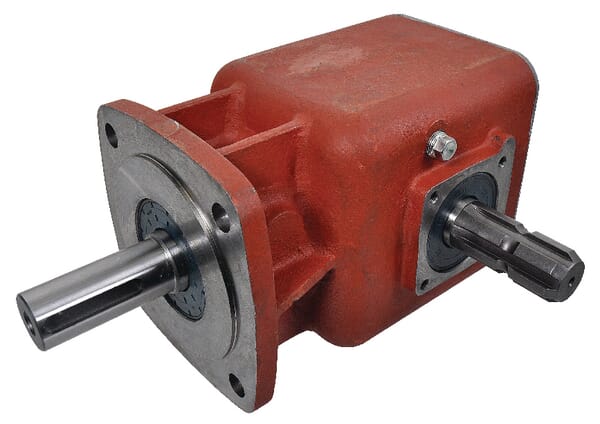

Comer Gearbox LF-151A 1:3 151001
£758.78 excl.
£910.54 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000085156

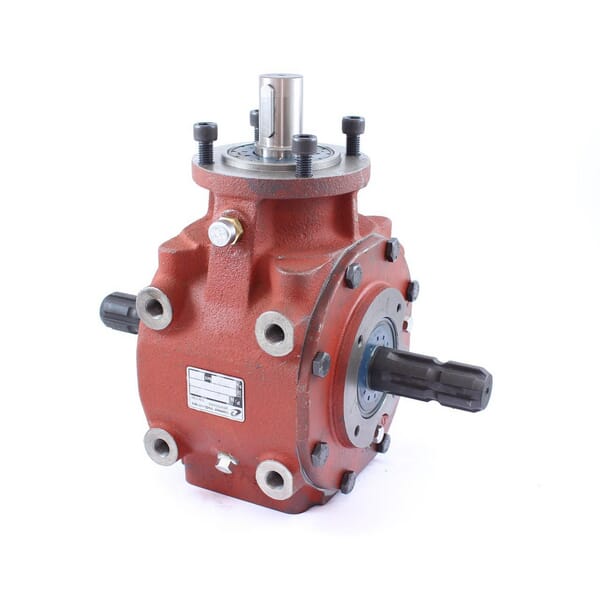

Comer Gearbox T-312A 1:2,5 312689
£617.00 excl.
£740.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000012527

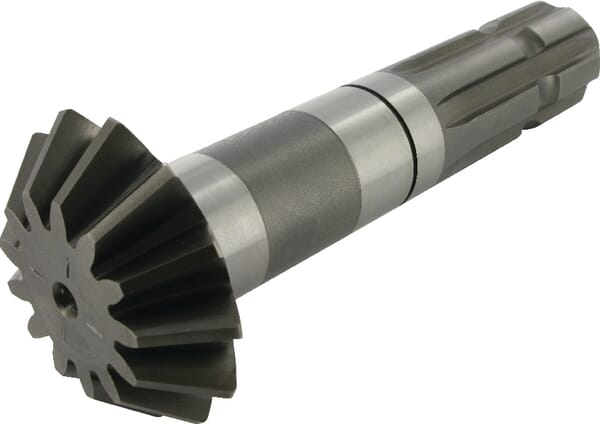

Comer Pinion shaft Z=13 M=5 02595001
