£295.74
excl. VAT
£354.89 incl. VAT
£354.89
incl. VAT
£295.74 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 3.9 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E10 |
| Flange type norm | European |
| Housing material | Aluminium |
| Inlet port diameter | 13.5 mm |
| Key width | 4 mm |
| Main port size code | 2G12 |
| Main port thread diameter | M6 |
| Material shaft seal | Viton |
| Max. continous working pressure | 250 BAR |
| Max pressure peak | 280 BAR |
| Mounting diameter | 36.5 mm |
| Mounting holes horizontal distance | 71.5 mm |
| Mounting holes vertical distance | 96.2 mm |
| Number of mounting holes | 4 |
| Outlet port diameter | 13.5 mm |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pressure port size code | 1G08 |
| Pressure port thread diameter | M6 |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Nitrile rubber [NBR] |
| Sealing type | Low pressure |
| Shaft cone size code | 1:8 |
| Shaft diameter | 17.46 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.25 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | T80 |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2608 g |
| Dimensions | 130 × 115 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000398292

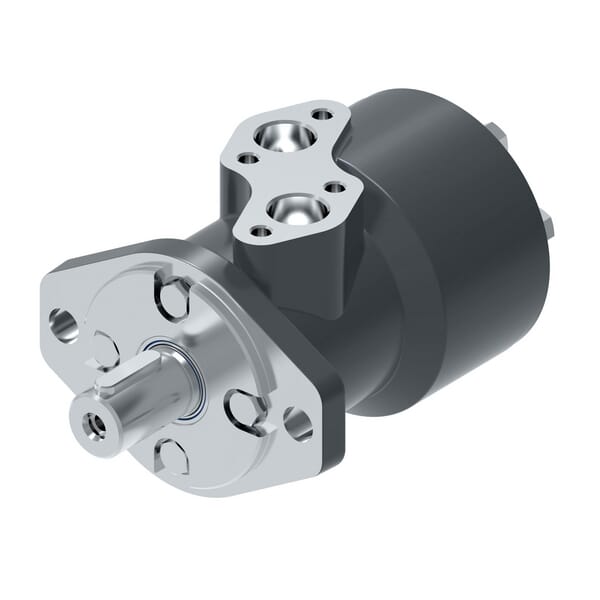

Danfoss Orbital motor 305 cc Danfoss Xcel XLS XLS3050360522
£220.92 excl.
£265.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000341703

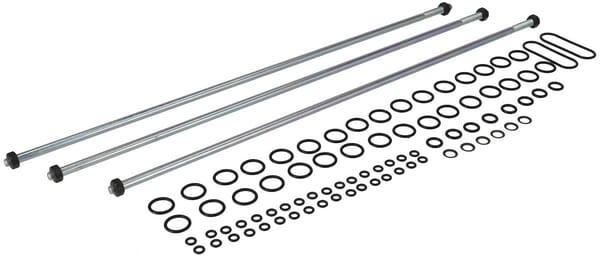

Danfoss Assembly set PVAS-256/128-0/2 PVG25611187617
£39.57 excl.
£47.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000239892

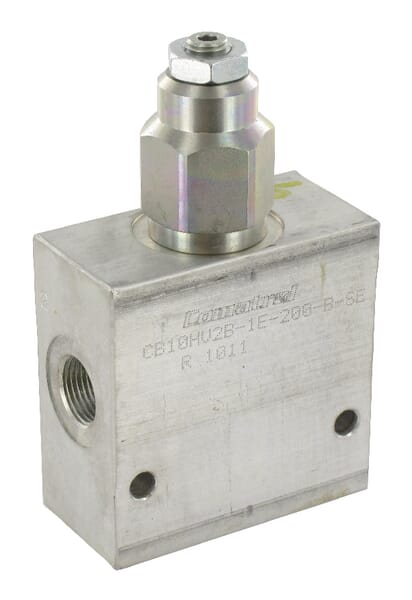

Danfoss Counter balance 1X CB10HV2B1E2 A06 CB10HV2B1E2001
£154.17 excl.
£185.00 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000341749
Danfoss Assembly set PVAS M8 529-540mm-3x565mm PVG25611188198
£134.07 excl.
£160.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341629

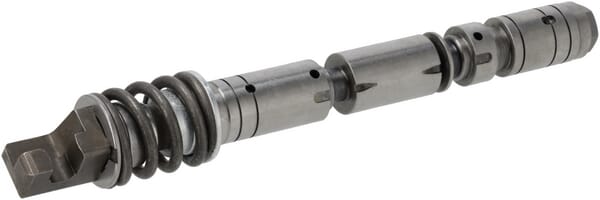

Danfoss Spool 5L PVH open neutral PVG1611274482
£39.00 excl.
£46.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000239907

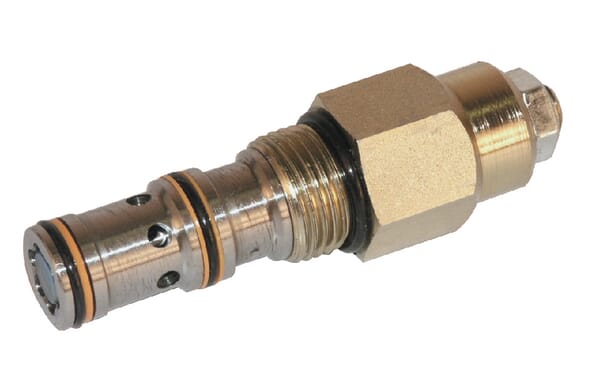

Danfoss Counterbalance cartridge CB10HV3B1 CB10HV3B1E200B00
£114.98 excl.
£137.98 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000206732
Hella Light lens, amber/red, square LH/RH/rear 9EL115003011
£11.24 excl.
£13.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000404945

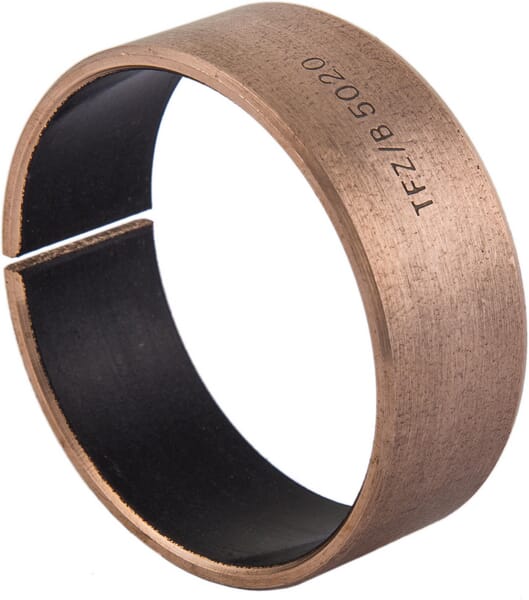

GLT/LHG Bearing bush 8x10x8mm ZB081008PTFEBR
