£551.01
excl. VAT
£661.21 incl. VAT
£661.21
incl. VAT
£551.01 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 530000 N |
|---|---|
| Basic radial load static | 680000 N |
| Bearing model type | Spherical roller bearings |
| Bore type | Tapered |
| CWidth | 56 mm |
| DOutside diameter | 180 mm |
| Extra info | Expansion bush ordered separately |
| FwInside diameter | 110 mm |
| Includes | Spherical roller bearing with conical inner ring. |
| Inner ring shape | Tapered |
| Manufacturer | Schaeffler |
| Max rotation speed | 3700 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 23122-E1-XL-K-TVPB-C3 |
| Product details | Heavy radial loads and skewed positions of the axle, Pumps and ventilators, Cranes, Conveyor belts |
| Radial internal clearance code | C3 |
| Ref rotation speed | 2550 r/min |
| Rows number | 2 |
| Stub diameter | 4.8 mm |
| Unit | Each |
| Weight | 5.103 kg |
Logistics
| EAN | 4026677828231 |
|---|---|
| Unit of measure | EA |
| Weight | 5224 g |
| Dimensions | 190 × 190 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000136627
FAG Thrust ball bearing 51305
£32.00 excl.
£38.40 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000089243

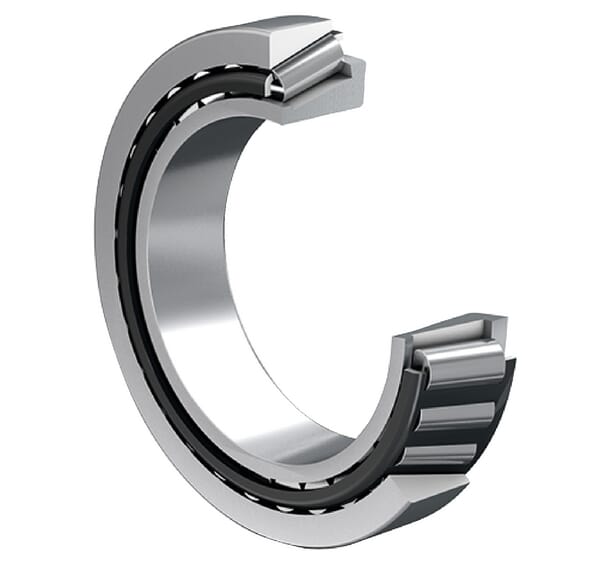

FAG Tapered roller bearing 32924FAG
£307.13 excl.
£368.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150768
FAG Deep groove ball bearing 65x100x18mm INA/FAG 6013C3
£38.21 excl.
£45.85 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000155636
FAG Deep groove ball bearing 95x170x32mm INA/FAG 62192RSRC3
£235.42 excl.
£282.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380791

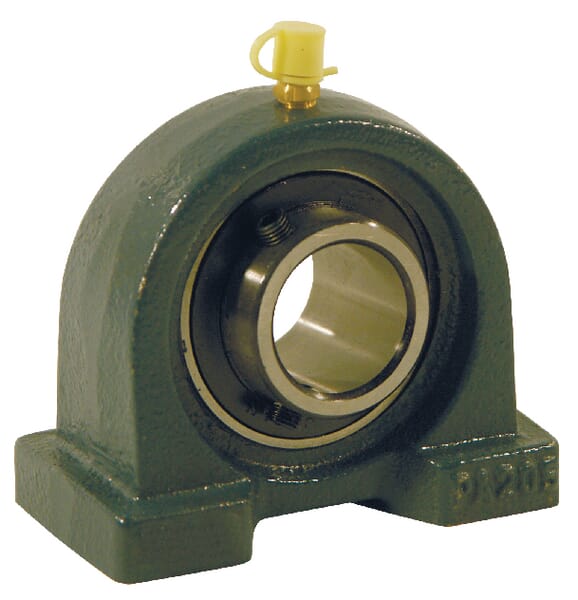

FAG Housing unit UCPA UCPA204
