£22.65
excl. VAT
£27.18 incl. VAT
£27.18
incl. VAT
£22.65 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

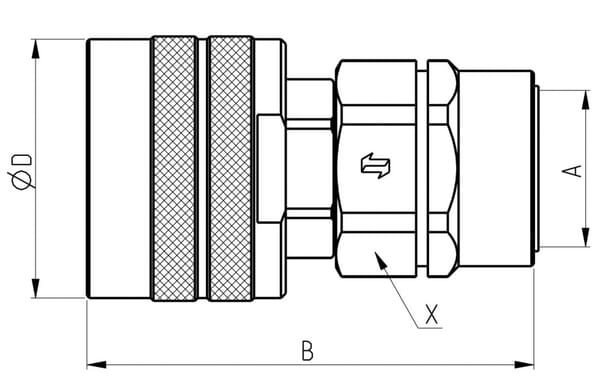

| ADiameter D2 | 42 mm |
|---|---|
| ADiameter (inch) | 1.65 Inch |
| Body | 12.5 |
| Body size | 1/2 Inch |
| Connectable under pressure | Yes |
| Connection 1 | Male |
| Connection 1, type - male/female | Male |
| Connection 2 | Male |
| Connection type | Screw to connect |
| Hex | 36 mm, 36 mm, 27 mm |
| ISO standard | ISO 14541 |

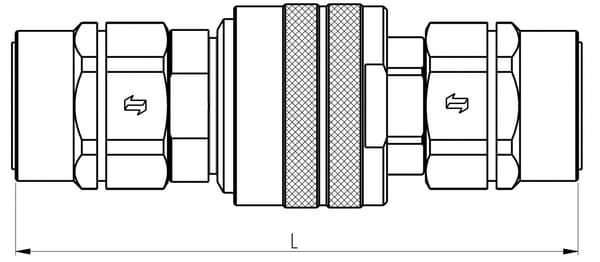

| Length | 89.9 mm |
| Length (inch) | 3.54 Inch |
| Material | Steel |
| Material seals | FKM, NBR |
| Note | Hex (in): 1.42 mm, 1.42 mm, 1.06 mm |

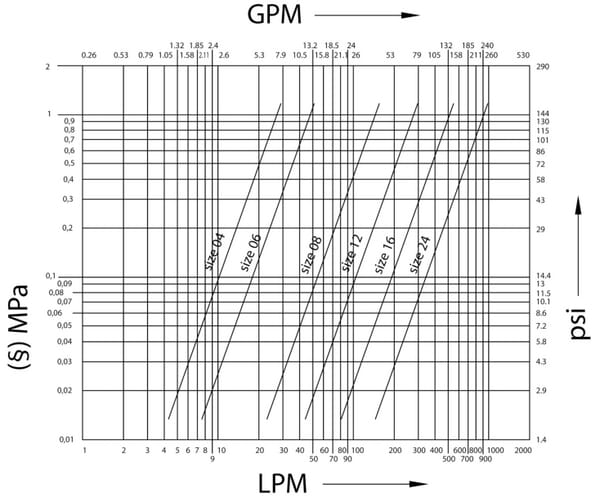

| Q max. (l/min) | 65 l/min |
| Separate element | Unscrew to disconnect |
| Size | 1/2 Inch |
| Suitable for original number | CVV085/2615 MV |
| Surface treatment | MATE 500 (CrIII) |
| Temperature max. | 125 °C |
| Temperature min. | -25 °C |

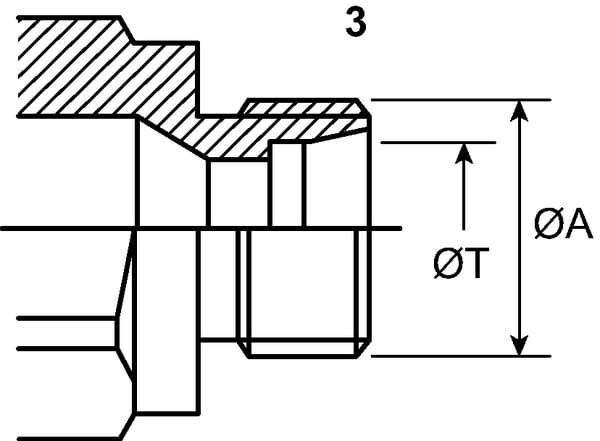

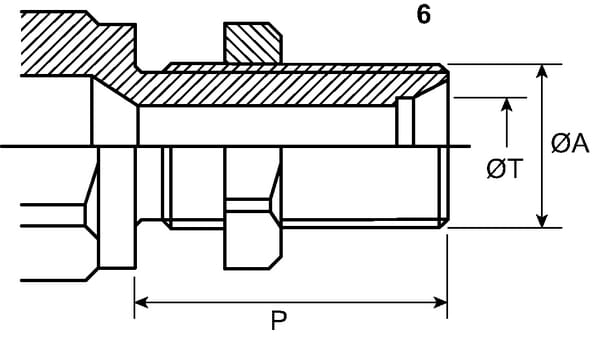

| Thread diameter | M26 mm |
| Thread pitch | 1.5 mm |
| Thread type | Metric |
| Unit | Each |
| Valve type | Poppet |
| Weight | 320 g |
| Working pressure | 300 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 329 g |
| Dimensions | 90 × 45 × 45 mm |
| Dangerous goods | No |
You might also like

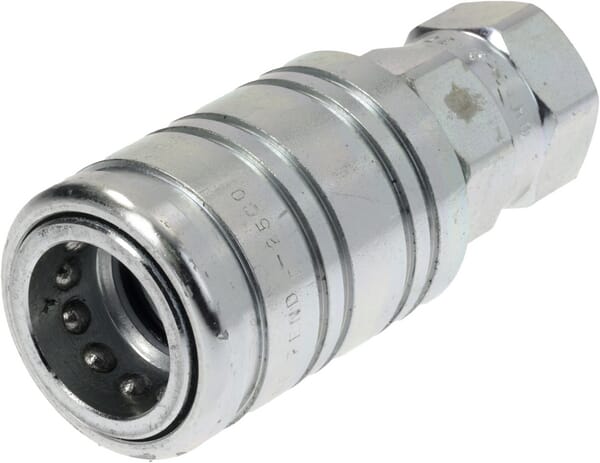

BPA000102660
Faster Female coupling M22x1,5 3CPV02215F
£41.16 excl.
£49.39 incl.
In stock
Expected to ship on Thursday 17 September

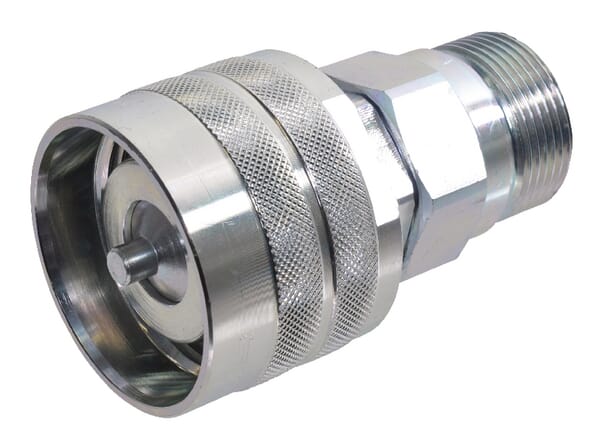

BPA000254125
Faster Threaded coupling, 3/4" male - M26x1.5 18L male bulkhead CVV1252615MV
£48.79 excl.
£58.55 incl.
In stock
Expected to ship on Friday 18 September

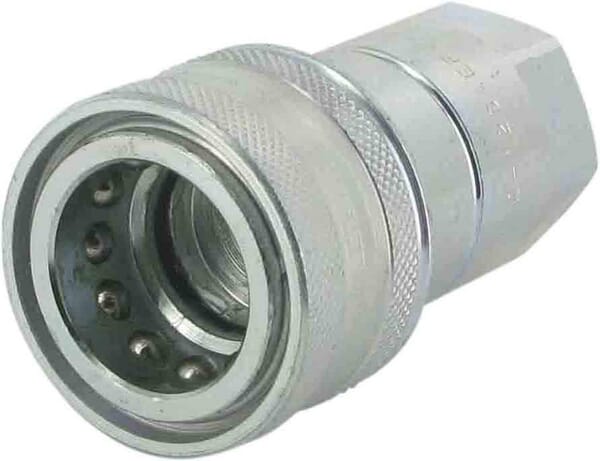

BPA000323700
Faster Quick release coupling female 1/2" - 12.5 - 3/4" UNF NV1212SAEF
£18.68 excl.
£22.42 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000367084
Faster Swivel M 1-1/16 JIC x F 3/4 NPT SZJ12MF12F
£161.32 excl.
£193.58 incl.
Backorder available
Usually ships within 3–8 weeks

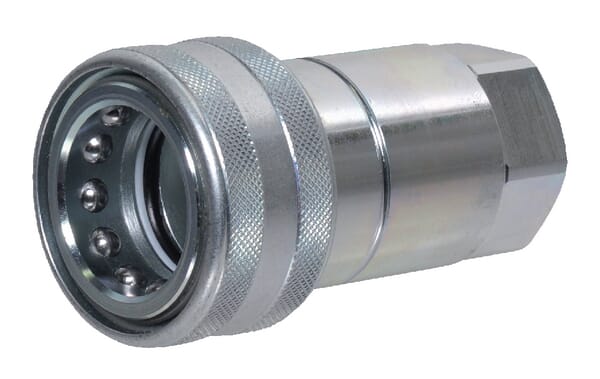

BPA000288902
Faster Quick release coupling female 3/4" - 3/4" BSP HNV34GASF
£34.82 excl.
£41.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000245474

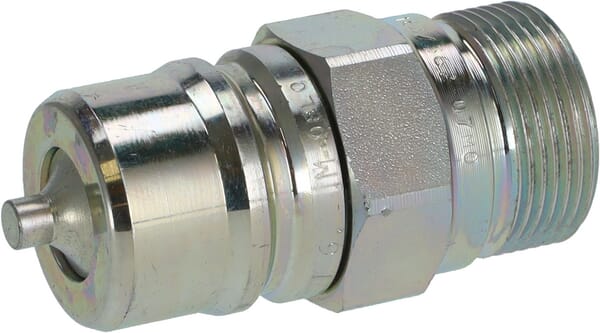

Faster Quick release coupling CNV162362M
