£148.79
excl. VAT
£178.55 incl. VAT
£178.55
incl. VAT
£148.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

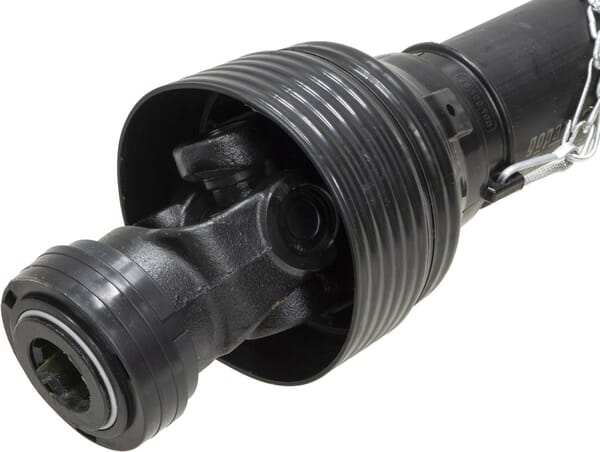

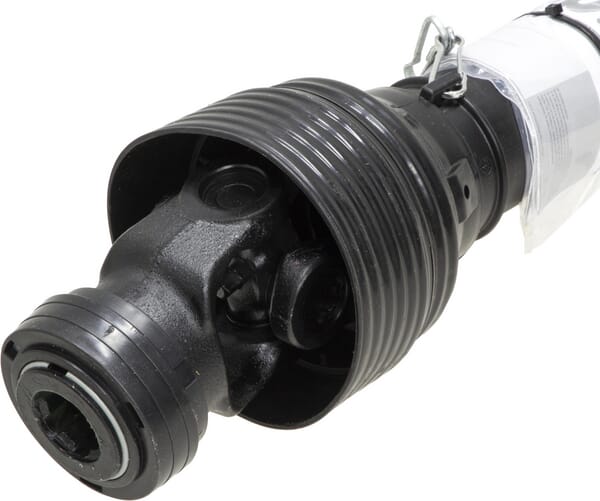

Product details
| Application range | Wood splitter, Crop sprayer, Chemical fertiliser spreaders |
|---|---|
| Attachment machine side | Clamp yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower capacity range |
| Clutch type code | n/a |
| Connection diameter tolerance code by machine side | H8 |
| Connection inside diameter by machine side | 25 mm |
| Connection outside diameter by machine side | 25 mm |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Details | Good price/performance ratio |
| Inner tube large outside diameter | 29 mm |
| Inner tube wall thickness | 4 mm |

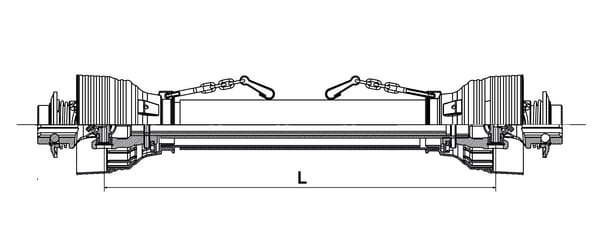

| Length | 1410 mm |
| Locking type by machine side | Clamp bolt (non interfering) |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts standard series 10 for log splitters, crop sprayers and fertiliser spreaders etc., A cost-effective alternative in the lower power range |
| Max dynamic torque | 320 N·m |
| Outer tube large outside diameter | 36 mm |
| Outer tube wall thickness | 3.2 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | Meets all international safety requirements, Provided with "CE" marking, Max. dyn. power 540 rpm: 12kW - 210Nm, Max. dyn. Power 1000 rpm: 18kW - 170Nm |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements, CE marking available |
| Pros | Good value for money |
| Size code | PTO 10 |
| Technical info | Max. dynamic capacity 540 rpm: 12 kW, 210 Nm, Max. dynamic capacity 1000 rpm: 18 kW, 170 Nm |
| Unit | Each |
Logistics
| EAN | 8719493073959 |
|---|---|
| Unit of measure | EA |
| Weight | 14000 g |
| Dimensions | 1600 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000285763

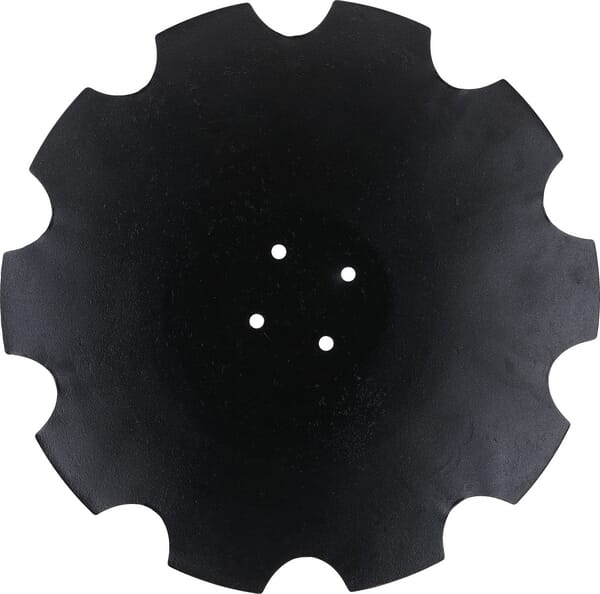

gopart Harrow disc notched 610x5mm, 4-hole HD610498
£41.79 excl.
£50.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000343070
gopart Yoke, Quick disconnect, 38x32mm -8 spline, PTO 10 PTO910Y21DY83238GP
£26.42 excl.
£31.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000056518
gopart Roller chain 16B2 16B2GPP005
£47.54 excl.
£57.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000063142

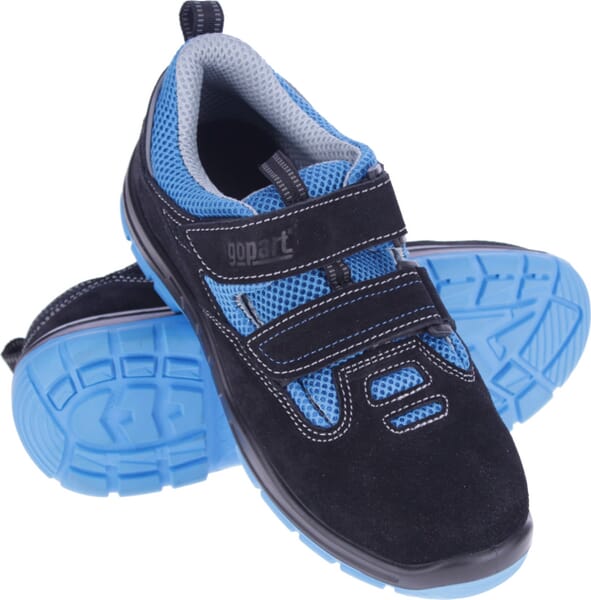

gopart Sandals Activ S1P, 43 / 9 1966010043GP
£46.44 excl.
£55.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000367700
gopart Wire Crip plate SP3151638
£0.19 excl.
£0.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000081796

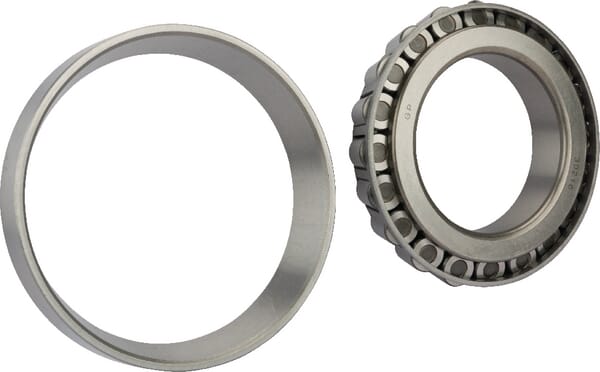

gopart Tapered roller bearing 80x140x28.25mm 30216GP
