£21.76
excl. VAT
£26.11 incl. VAT
£26.11
incl. VAT
£21.76 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

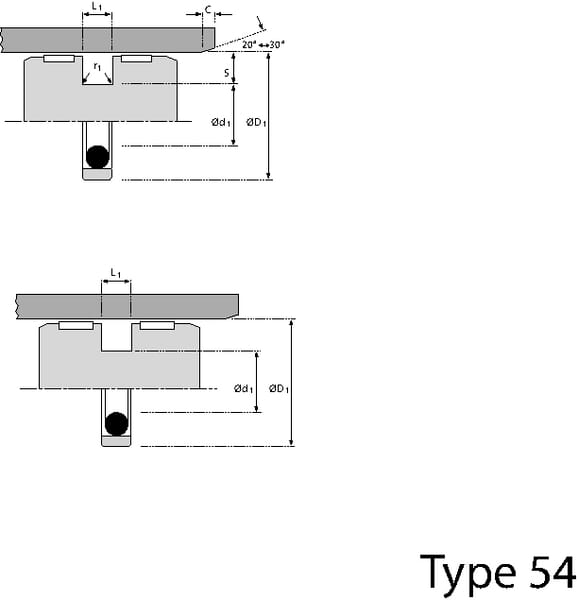

| d1Inside diameter | 109.5 mm |
|---|---|
| D1Outside diameter | 125 mm |
| Includes | Seal ring: PTFE/bronze compound, O-Ring: NBR 70 |
| L1Groove thickness | 6.3 mm |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |

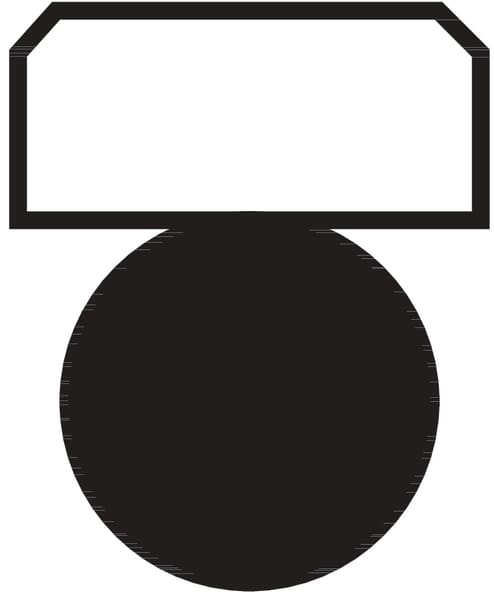

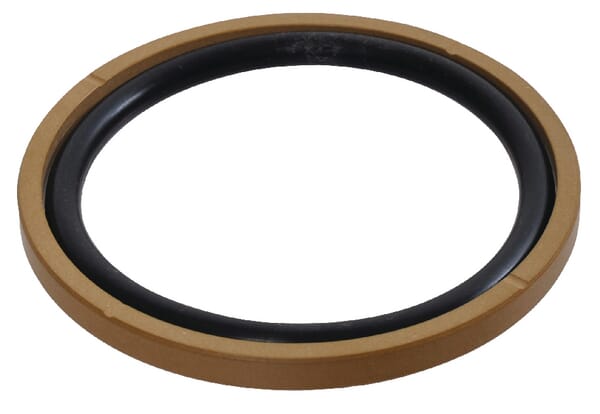

| Product details | 2-piece double-acting piston seal, Pre-tensioned O-ring |
| Pros | Good glide properties, prevents stick-slip effect, Better static sealing ensured, Good resistance to high temperatures, Good chemical resistance |
| Type | Piston seal |
| Type code | 54 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 39 g |
| Dimensions | 126 × 125 × 5 mm |
| Dangerous goods | No |
You might also like
BPA000404858

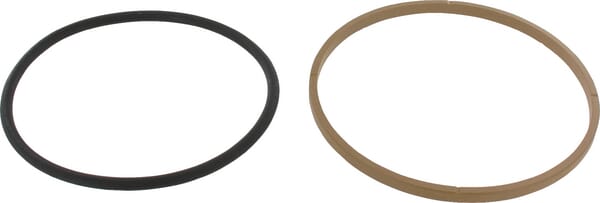

Hallite Piston seal 125x109.5x6.3mm ZAS125V
£43.82 excl.
£52.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000232540
Hallite Rod wiper ASP 60x66.8x5mm PTFE ASP606685PTFE
£19.53 excl.
£23.44 incl.
In stock
Expected to ship on Friday 18 September

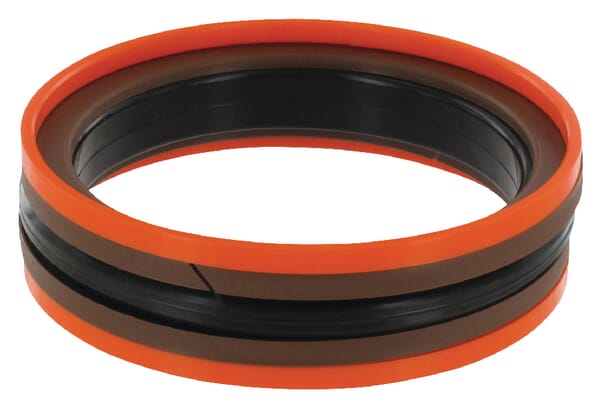

BPA000404734
Hallite Piston seal 140x115x25.4mm ZA140115254635DBM
£88.35 excl.
£106.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232638
Hallite Rod wiper ASU 55x65.6x5.3/7mm ASU5565653
£1.97 excl.
£2.36 incl.
In stock
Expected to ship on Friday 18 September

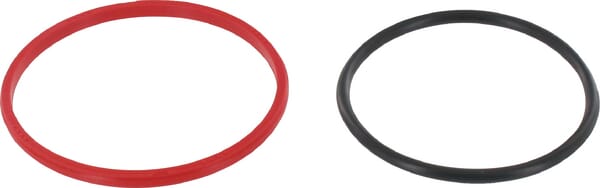

BPA000404900
Hallite Piston seal 70x59x4.2mm ZAS705942T754
£3.31 excl.
£3.97 incl.
Backorder available
Usually ships within 3–8 weeks

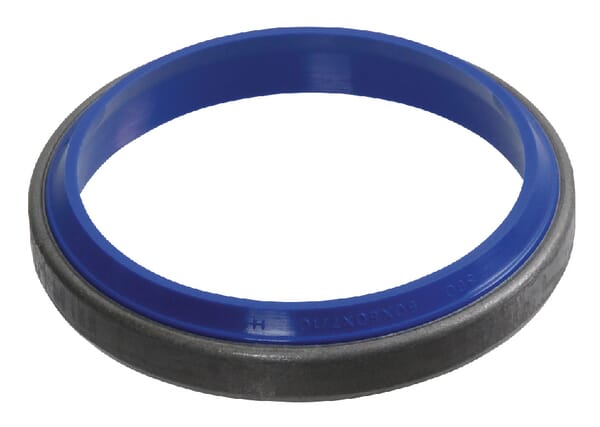

BPA000232510
Hallite Rod wiper ASM 70x80x7/10mm ASM7080710
£7.24 excl.
£8.69 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed

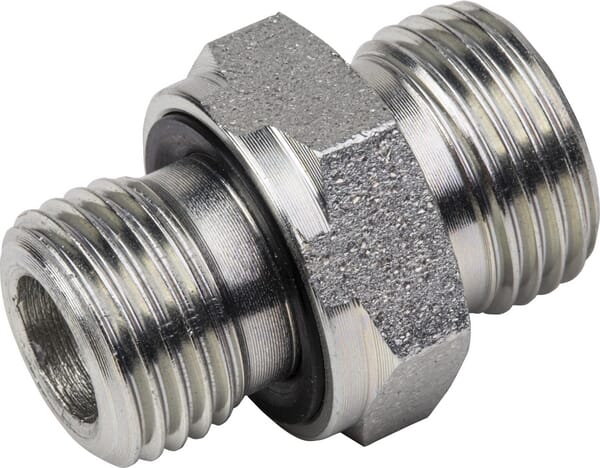

BPA000288068
