£30.46
excl. VAT
£36.55 incl. VAT
£36.55
incl. VAT
£30.46 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

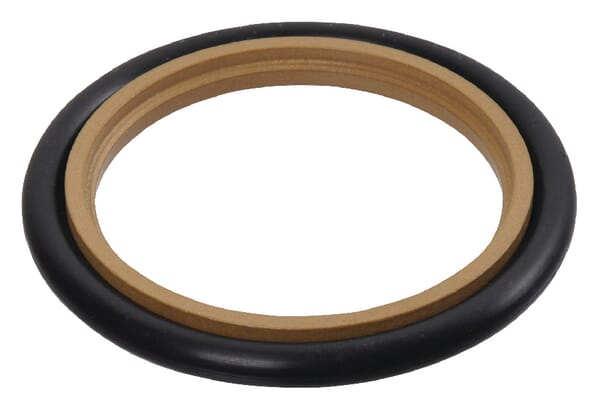

Product details
| d1Inside diameter | 125 mm |
|---|---|
| D1Outside diameter | 140.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 41 g |
| Dimensions | 149 × 141 × 14 mm |
| Dangerous goods | No |
You might also like
BPA000232512

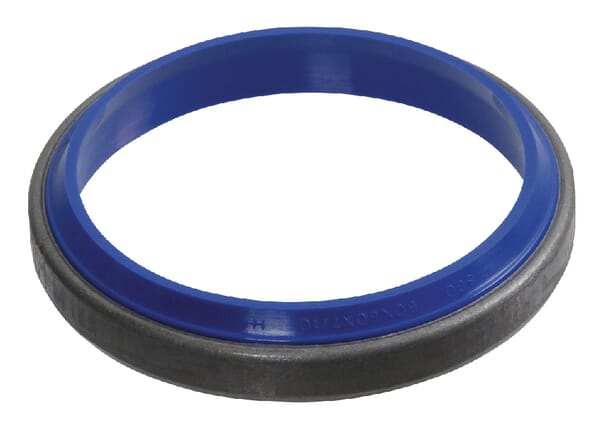

Hallite Rod wiper ASM 75x89x8/11mm ASM75898
£9.54 excl.
£11.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000234266

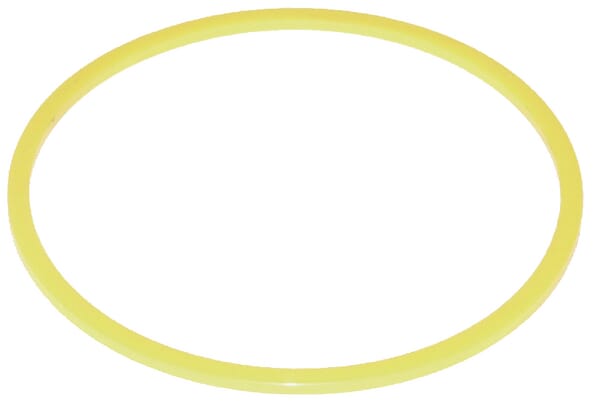

Hallite Backup for 10.77x2.62 e=1.14 BU1078262
£0.76 excl.
£0.91 incl.
In stock
Expected to ship on Friday 18 September
BPA000404745

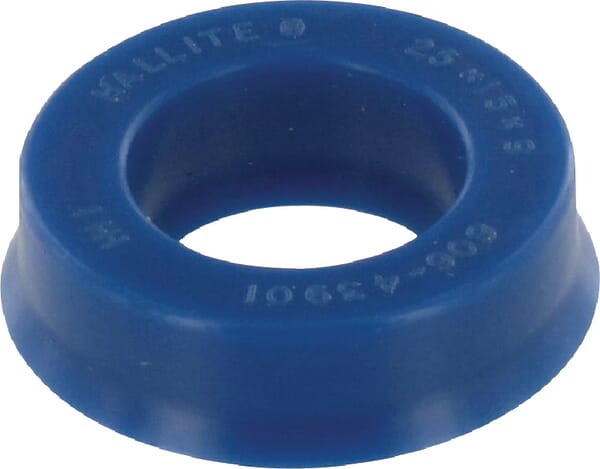

Hallite Piston seal 25x15x8.2mm ZA251582UN
£3.06 excl.
£3.67 incl.
In stock
Expected to ship on Friday 18 September
BPA000353794
Hallite Rod seal 80x60x12mm SA608012UN
£6.53 excl.
£7.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000404722

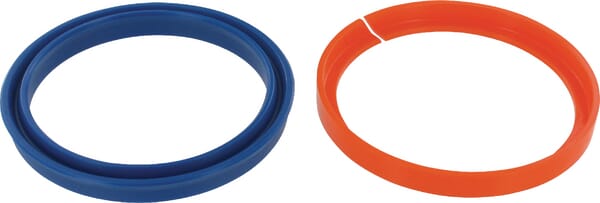

Hallite Piston seal 100x85x11.4mm ZA10085114AEUN
£7.09 excl.
£8.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000354416
Hallite Rod seal 40.7x30x4.2mm SAS3040742
£6.60 excl.
£7.92 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000218975

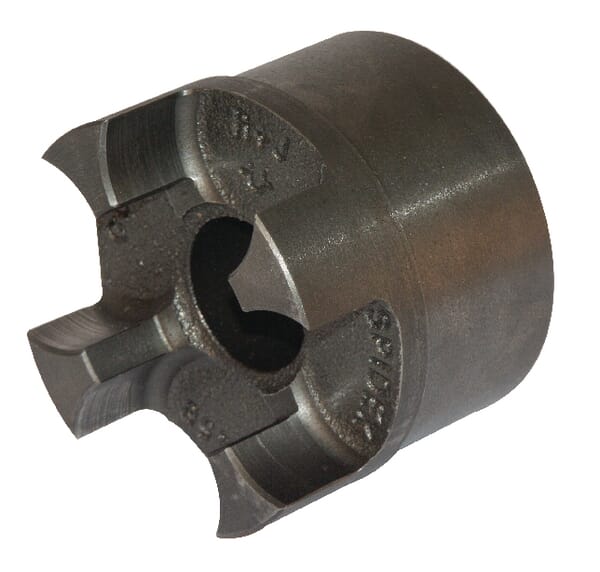

RaJa-Lovejoy Spidex Hub GG A38A 1 1/8" A3845118
