£6.65
excl. VAT
£7.98 incl. VAT
£7.98
incl. VAT
£6.65 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details
| CWidth | 9.5 mm |
|---|---|
| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Ød1Inside diameter | 76.2 mm |
| ØD1Outside diameter | 88.9 mm |
| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 10.5 mm |
| Type | Rod seal, Piston seal |
| Type code | 605 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15 g |
| Dimensions | 90 × 90 × 10 mm |
| Dangerous goods | No |
You might also like

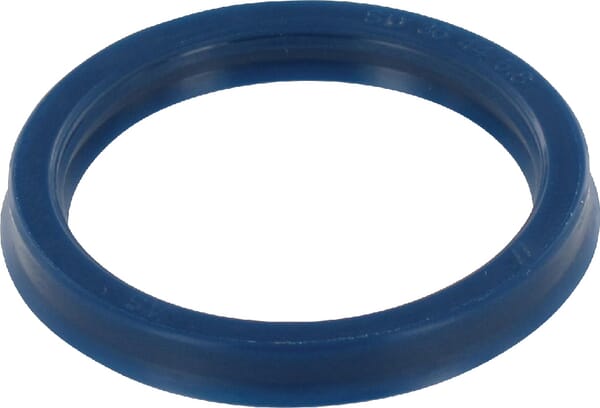

BPA000353550
Hallite Piston rod seal 44x36x5.3mm Dichtomatik SA364458UN
£3.25 excl.
£3.90 incl.
In stock
Expected to ship on Thursday 17 September
BPA000353833
Hallite Rod seal 85x75x11.8mm SA7585118UN
£6.63 excl.
£7.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000351158
Hallite Rod seal 33x25x6.8mm SA253368UN
£1.63 excl.
£1.96 incl.
Backorder available
Usually ships within 3–8 weeks

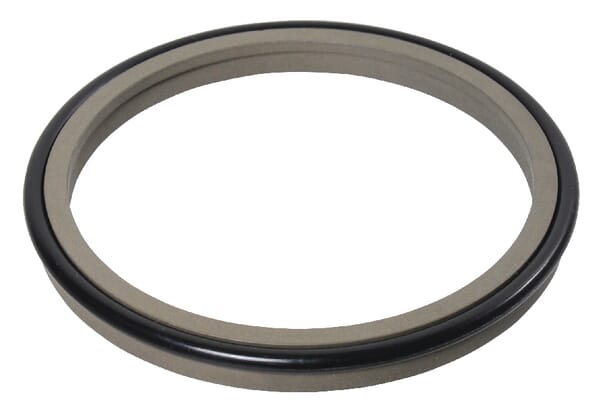

BPA000232536
Hallite Rod wiper ASP 45x51.8x5mm PTFE ASP455185PTFE
£12.93 excl.
£15.52 incl.
In stock
Expected to ship on Friday 18 September

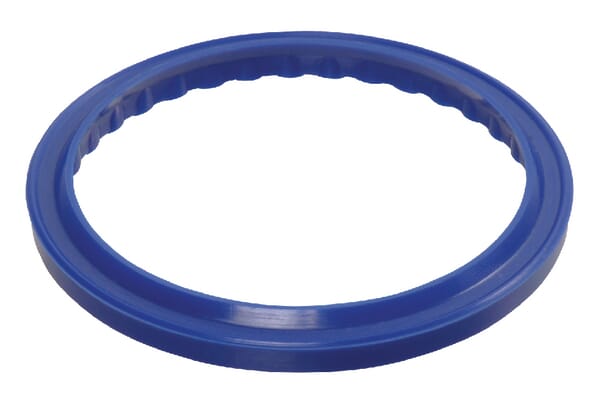

BPA000232593
Hallite Rod wiper ASU 16x24.6x5.3/7mm ASU1624653
£0.89 excl.
£1.07 incl.
Backorder available
Usually ships within 3–8 weeks

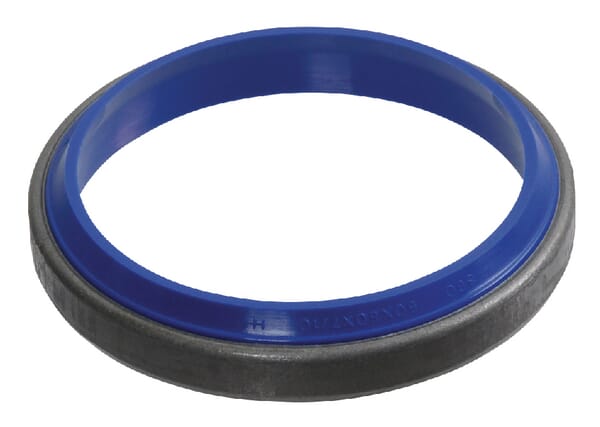

BPA000232459
