£4.53
excl. VAT
£5.44 incl. VAT
£5.44
incl. VAT
£4.53 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

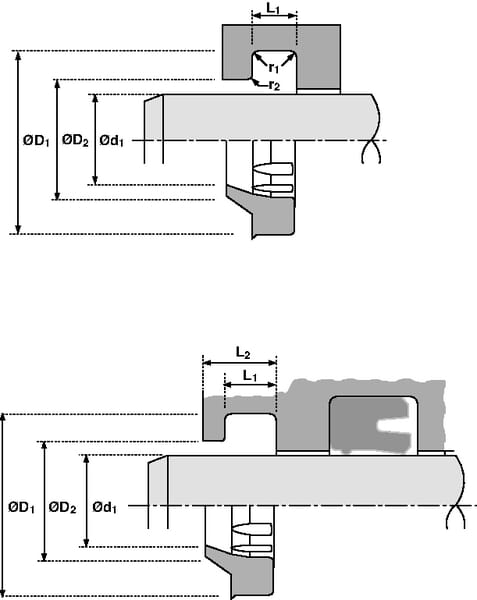

| Collar diameter | 35.5 mm |
|---|---|
| d1Inner diameter | 30 mm |
| D1Outer diameter | 38 mm |
| Groove width | 5 mm |

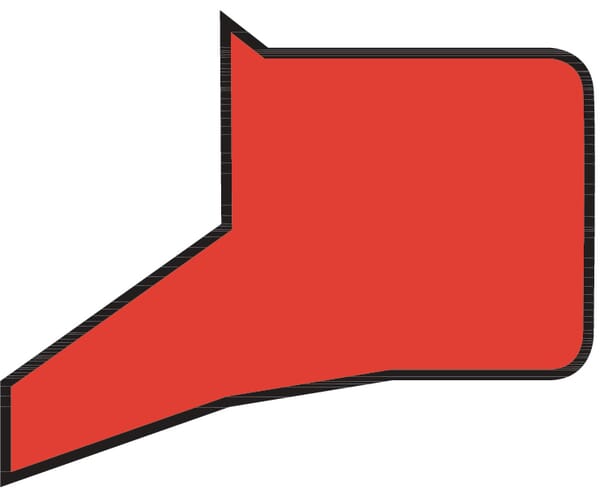

| Long description | The ASU-T38 (38) single-lip wiper is engineered to fit metric housings, including ISO 6195A standard sizes. Its precisely designed wiping lip maintains firm contact with the piston rod, effectively removing heavy contaminants such as mud and ice to protect your hydraulic system. Featuring an outer crush lip, the scraper ensures a secure interference fit within the housing, preventing contaminants from entering the groove and damaging internal components. |
| Material wiper seal | Polyester |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 120 °C |
| Min. working temperature | -40 °C |
| Product details | Material : Abrasion-resistant polyester, Compatible with split housings, Most sizes can be carefully installed in blind housings, Designed with an additional sealing lip and ribs, Secure fit with reliable sealing, Built for demanding environments, Highly flexible, Excellent wear resistance, Effective dirt removal |
| Total width | 8 mm |
| Type | Rod wiper |
| Type code | ASU-T38 (38) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 0 g |
| Dimensions | 38 × 38 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000404804

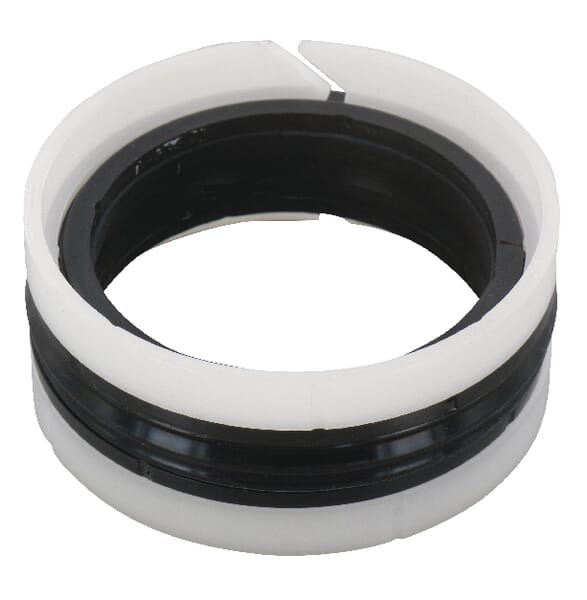

Hallite Piston seal 65x50x18.4mm ZA6550184DBM
£10.05 excl.
£12.06 incl.
In stock
Expected to ship on Thursday 17 September
BPA000354401
Hallite Rod seal 20.9x16x2.2mm SAS1620922
£4.27 excl.
£5.12 incl.
In stock
Expected to ship on Thursday 17 September
BPA000234504
Hallite Backup for 29.74 x 3.53 e=1.02 BU2974353
£2.11 excl.
£2.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000354412

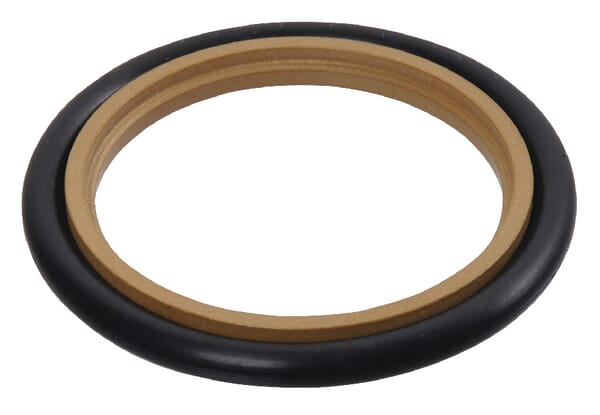

Hallite Rod seal 35.3x28x3.2mm SAS2835332
£5.53 excl.
£6.64 incl.
In stock
Expected to ship on Thursday 17 September
BPA000404892

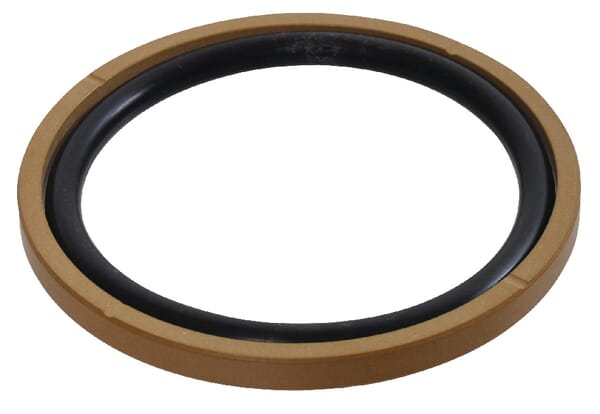

Hallite Piston seal 60x49x4.2mm ZAS604942V
£26.86 excl.
£32.23 incl.
In stock
Expected to ship on Thursday 17 September
BPA000234612

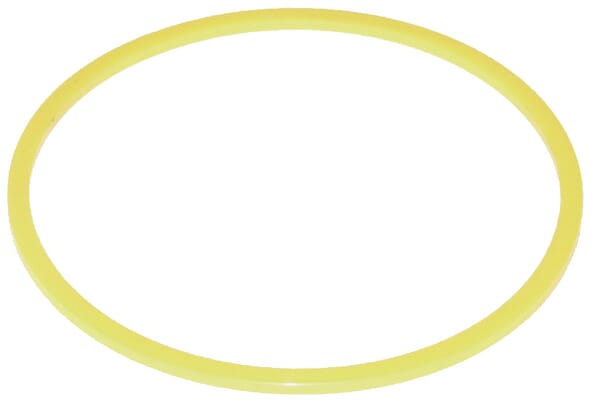

Hallite Backup for 89.69 x 5.34 e=1.52 BU8969534
