About this product

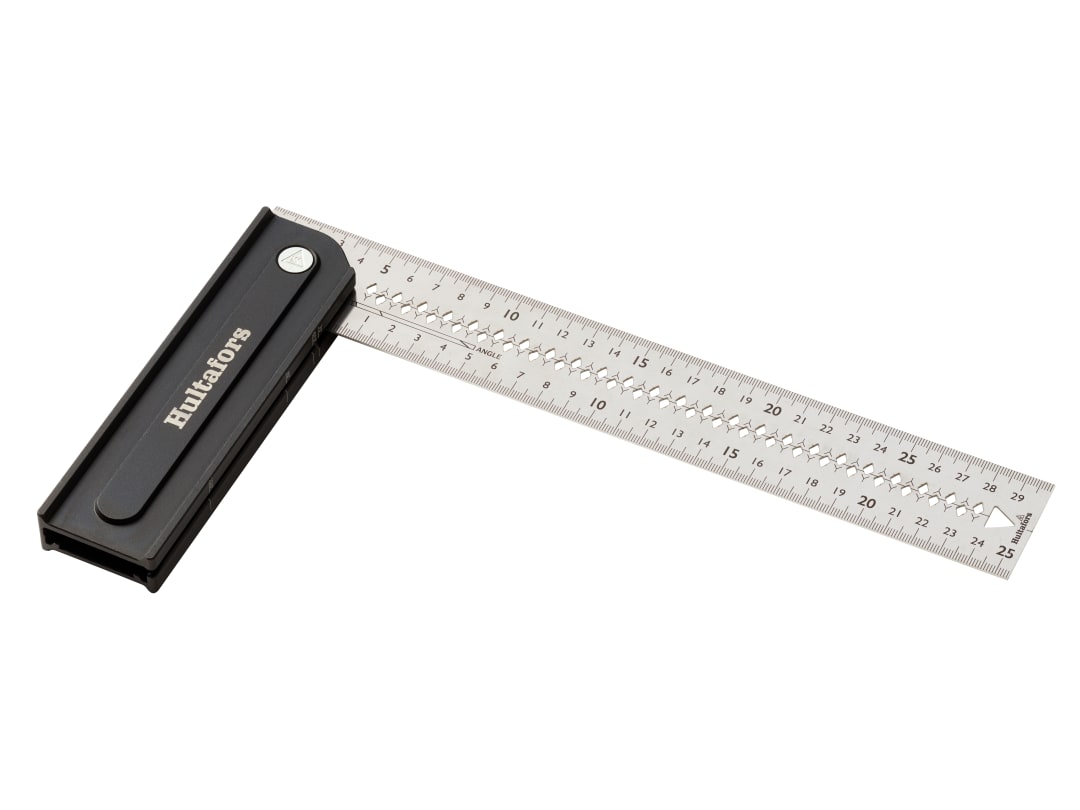

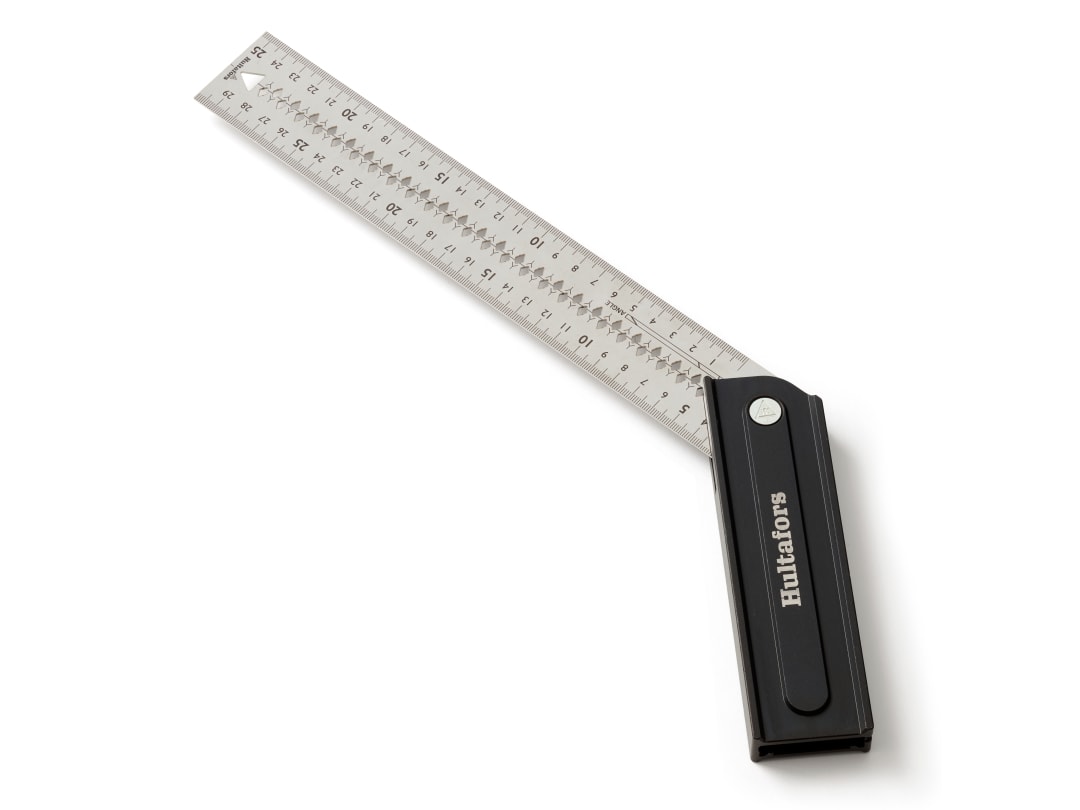

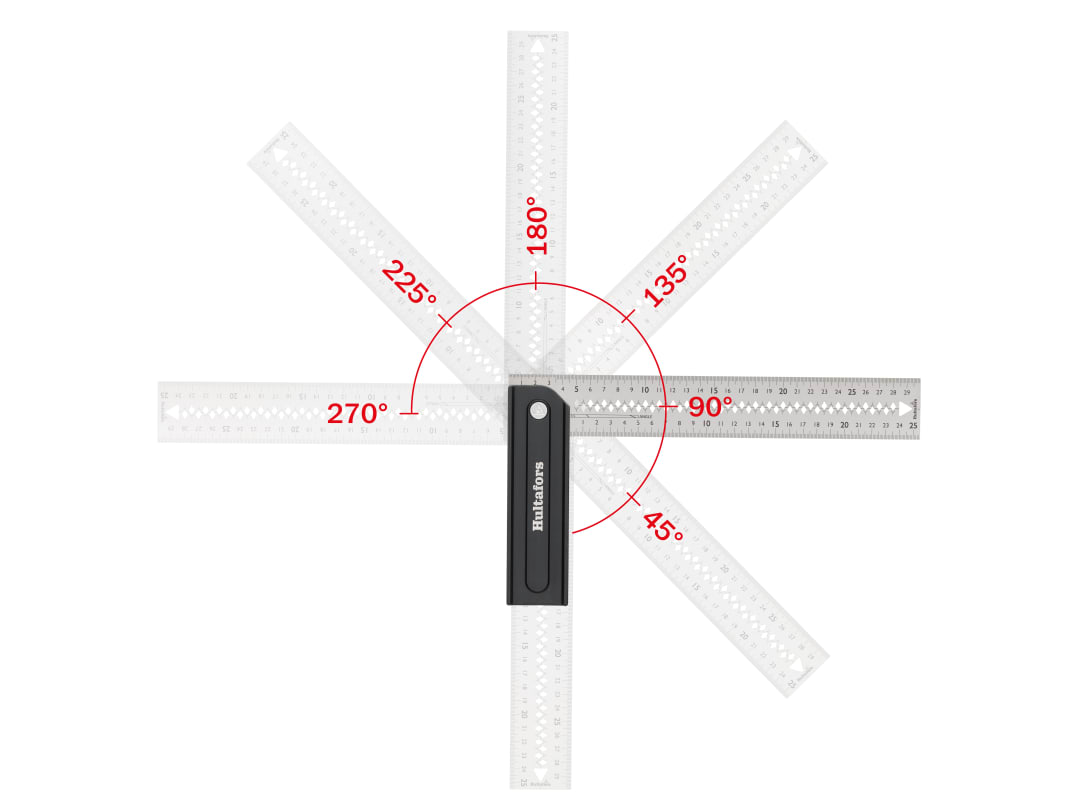

The Quattro 270 is a fully adjustable square with a stainless steel blade that rotates to multiple angles: 45°, 90°, 135° and 270°. Additional angle markings are provided for 22.5°, 67.5° and 75°/15°. The 270° rotation position allows use of the opposite side of the stock without a slit, and offers a rounded corner for working in uneven corners.

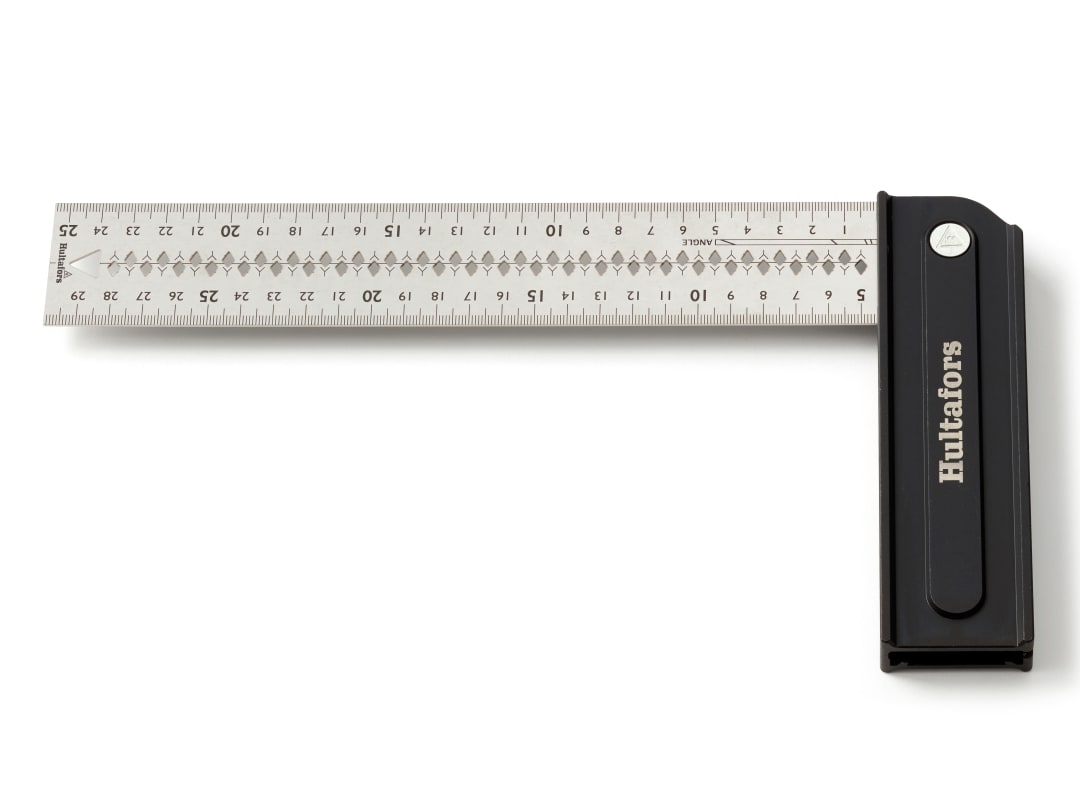

The stock is made of anodised aluminium with a 19mm thick handle. The blade is high-strength stainless steel, 45mm wide and 1mm thick, sized to accommodate standard stud dimensions. A centre line marks both sides of a stud quickly. Scribing notches spaced 5mm apart allow parallel lines to be drawn or cut along an edge.

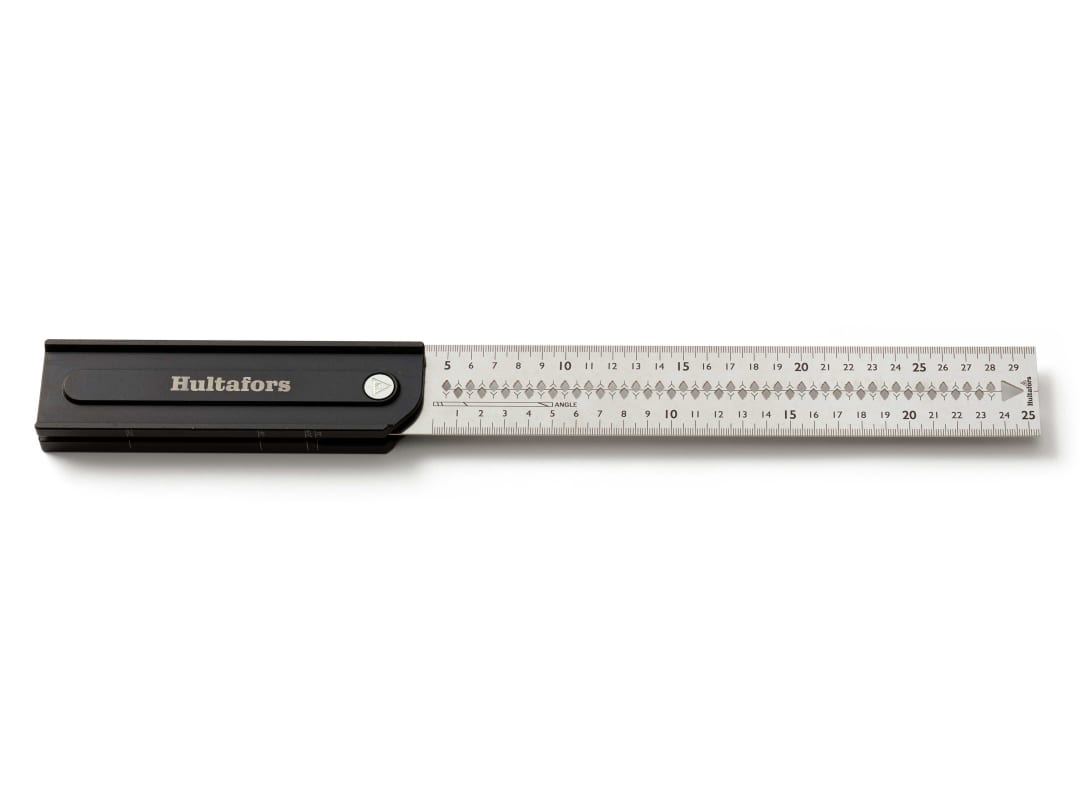

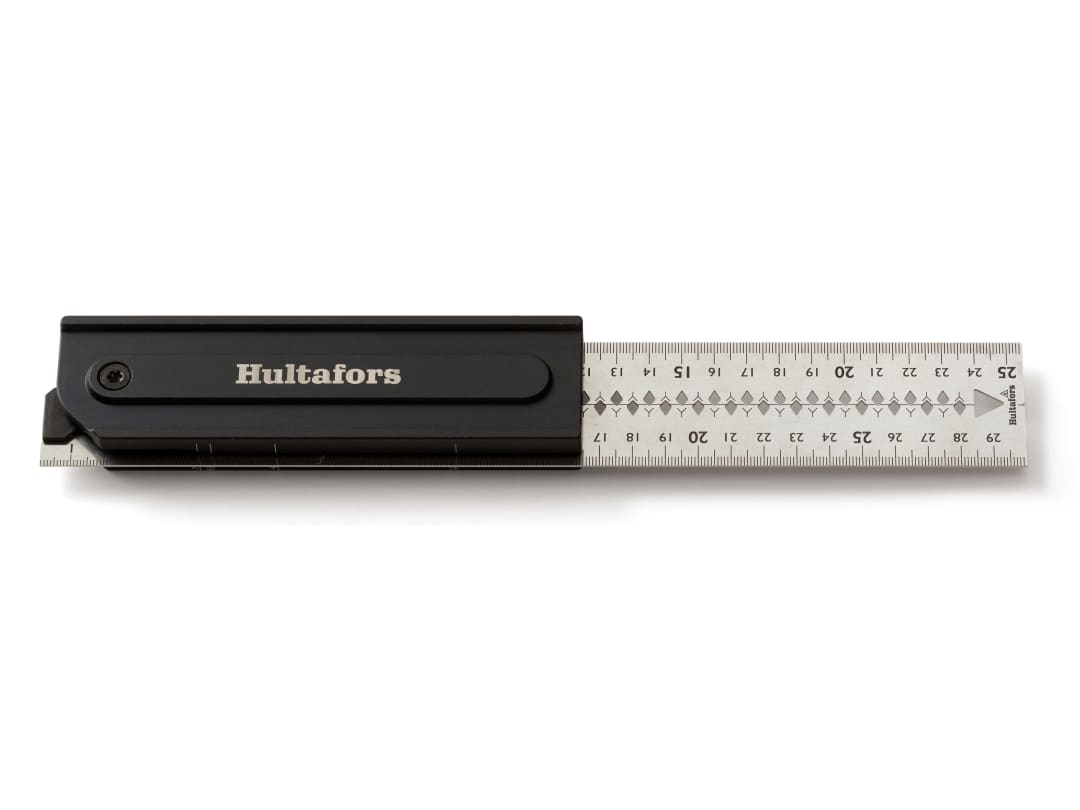

The square is manufactured in Europe using CNC-milled stock and laser-cut blade, delivering an angle tolerance of ±0.06° (±1 mm/m). It folds completely for storage and pocket carry. Weight 274g; overall dimensions 300 × 19 × 48mm.
Product details
| Angle Tolerance | ±0.06° (±1 mm/m) |
|---|---|
| Blade Material | Stainless steel |
| Blade Thickness | 1 mm |
| Blade Width | 45 mm |
| Foldable | Yes |
| Length | 300 mm |
| Manufacturer Part Number | 253120 |
| Scribing Notch Spacing | 5 mm |
| Stock Handle Thickness | 19 mm |
| Stock Material | Anodised aluminium |
| Weight | 274 g |
Logistics
| EAN | 7317842531214 |
|---|---|
| Unit of measure | Each |
| Weight | 274 g |
| Dimensions | 48 × 19 × 300 mm |
| Dangerous goods | No |
