£21.88
excl. VAT
£26.26 incl. VAT
£26.26
incl. VAT
£21.88 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

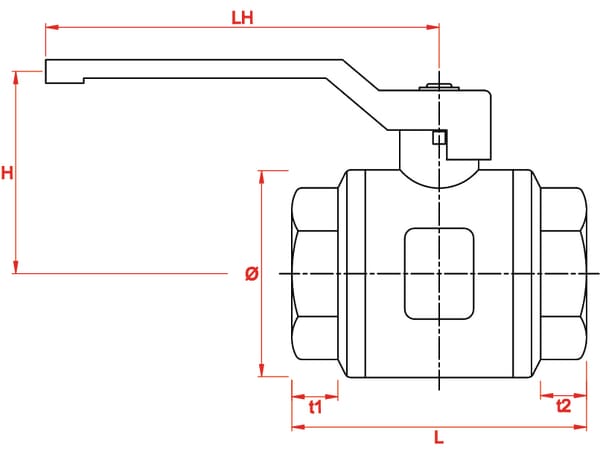

| Center bore to top distance | 73 mm |
|---|---|
| Connection 2, thread diameter | 1-1/4 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1-1/4 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| Housing material | Brass CW617N, Nickel |
| LHHandle length | 135 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Nominal inner diameter | 30 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Outside diameter | 53 mm |

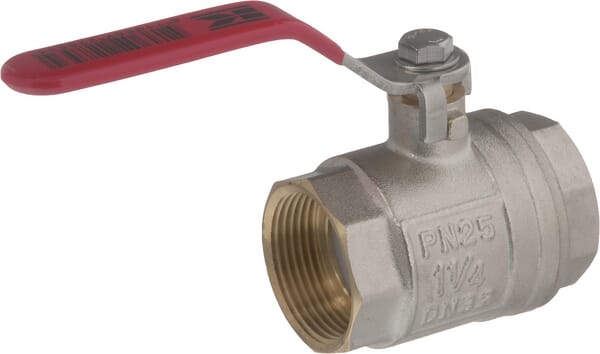

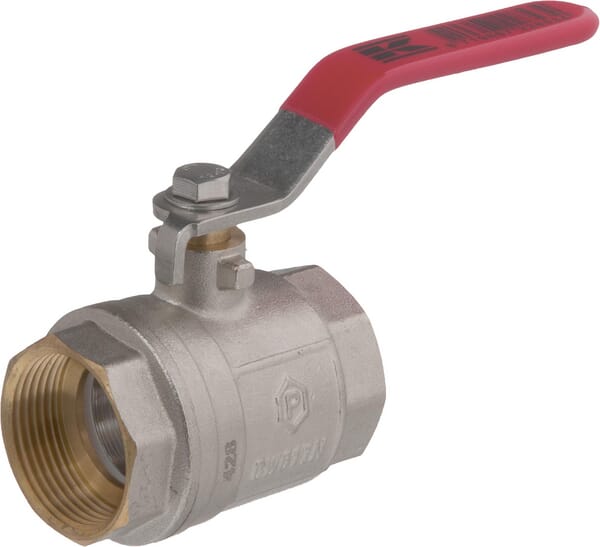

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt (AISI304), PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| t1Connection thread length | 14 mm |
| t2Connection 2, thread length | 14 mm |
| Total length | 73 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228534 |
|---|---|
| Unit of measure | EA |
| Weight | 584 g |
| Dimensions | 160 × 105 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000322885
Kramp Bearing NWB08122
£10.30 excl.
£12.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000050991

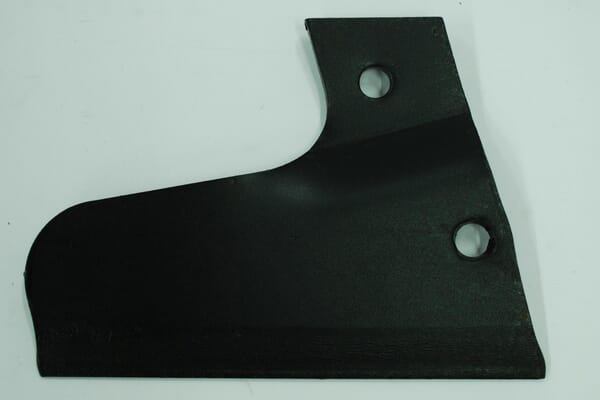

Kramp Sword RH 161098N
£36.16 excl.
£43.39 incl.
In stock
Expected to ship on Thursday 17 September
BPA000233213

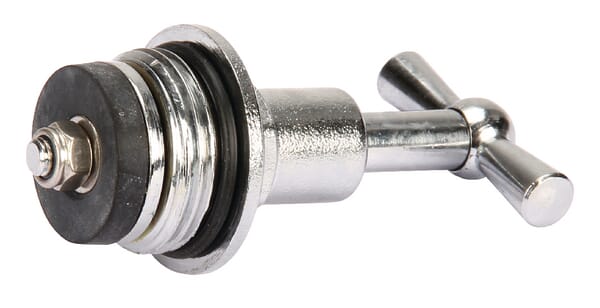

Kramp AV upper part tap 3/4" AV934
£10.78 excl.
£12.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000059299

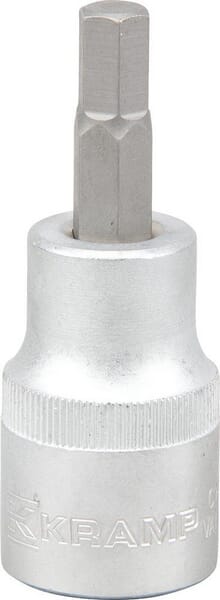

Kramp Screwdriver bit socket 1/2" Hex 7 mm 18060135007KR
£3.46 excl.
£4.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000368057

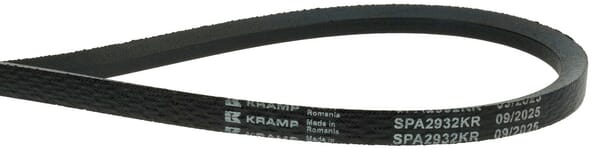

Kramp V-belt SPA2932 SPA2932KR
£16.59 excl.
£19.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000198078
Kramp Hexagon head bolt DIN931 M20x240 steel zinc-plated 8.8 93120240
£4.15 excl.
£4.98 incl.
In stock
Expected to ship on Thursday 17 September
Recently viewed
BPA000088324

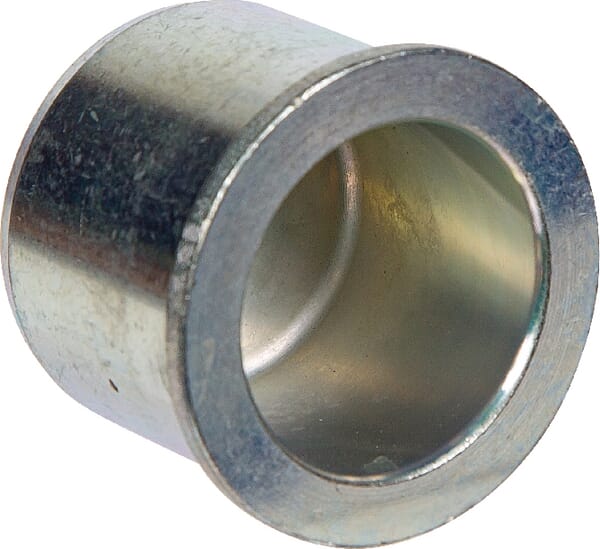

Lemken Bush Lemken D50/45/35x38 M10x1 3179310
£48.17 excl.
£57.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348844

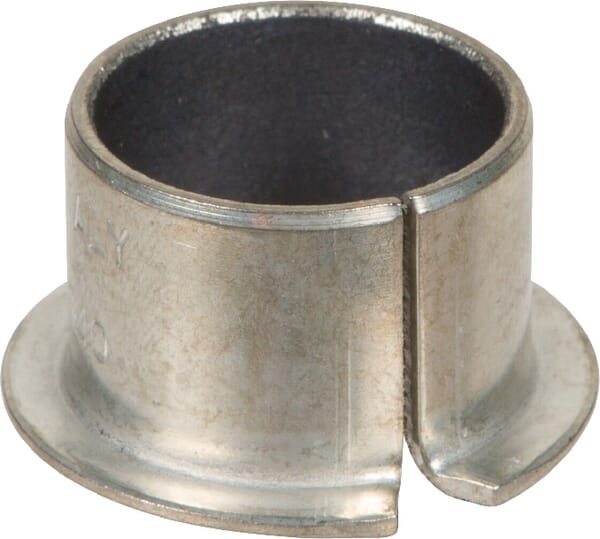

Kverneland / Rau Rotation sleeve 232016,5 RG00063405
