£60.95
excl. VAT
£73.14 incl. VAT
£73.14
incl. VAT
£60.95 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

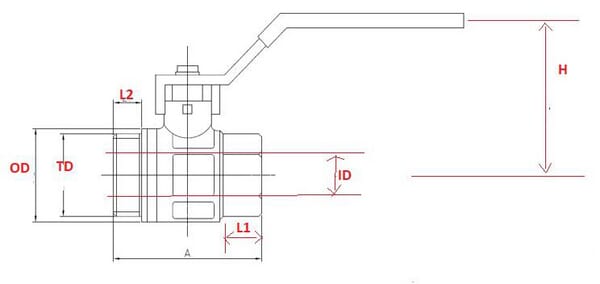

| ATotal length | 114 mm |
|---|---|
| Connection 2, thread diameter | 2 Inch |
| Connection 2, thread type | BSPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection thread diameter | 2 Inch |
| Connection thread type | BSPT |
| Connection type | Thread |
| Connection type - male/female | Female |
| HCenter bore to top distance | 90.5 mm |
| Housing material | Brass CW617N, Nickel |
| Housing width | 84.5 mm |
| IDNominal inner diameter | 47 mm |
| L1Connection thread length | 18.5 mm |
| L2Connection 2, thread length | 20 mm |
| LHHandle length | 145 mm |
| Max working pressure | 25 BAR |
| Max working temperature | 150 °C |
| Min working temperature | -20 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ODOutside diameter | 84.5 mm |

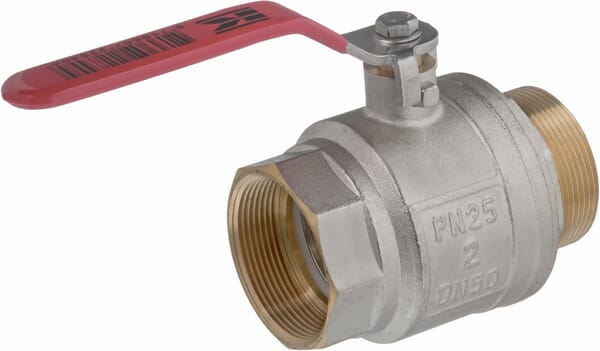

| Product details | 2-way ball valve with full bore, Nickel-plated brass enclosure (CW617N, DIN 50930-6), Ball made from hard chrome-plated brass (CW614N), Stainless steel lever and bolt, PTFE ball seals, EPDM lever seals, Conical thread according to ISO 7-1 and DIN 2999-1 |
| Sealing material | Teflon (PTFE) |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | 8719607228404 |
|---|---|
| Unit of measure | EA |
| Weight | 1509 g |
| Dimensions | 195 × 120 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000249976

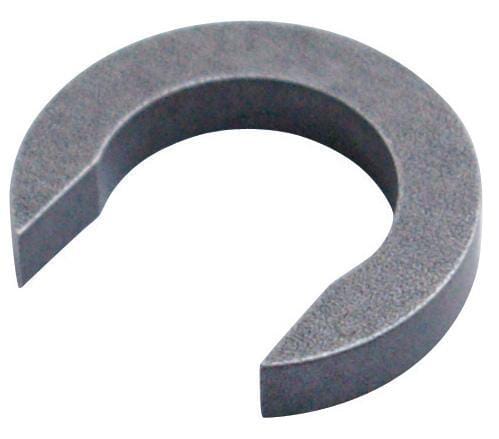

Kramp Tying clip C25 bore 60-63-70 DS2906015C
£11.68 excl.
£14.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000037969
Kramp Plough bolt M12x35 oval 2 nib+nut 1235COP025
£0.53 excl.
£0.64 incl.
In stock
Expected to ship on Thursday 17 September
BPA000318600

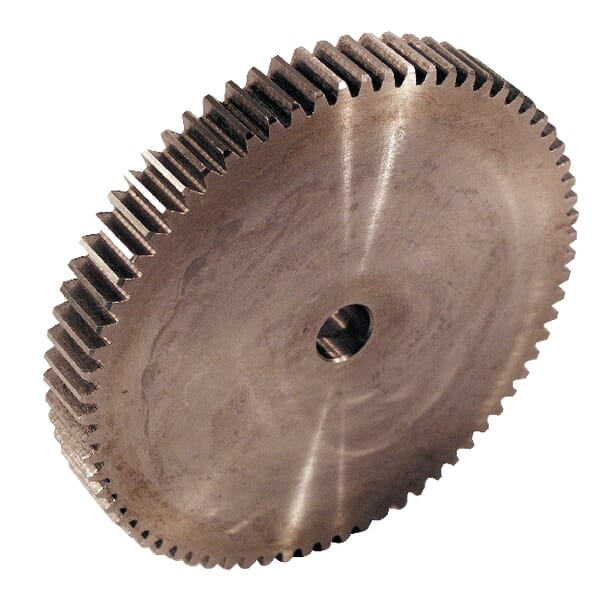

Kramp Spur gear module 2.5 - Z=80 MOD2580
£71.20 excl.
£85.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000237189
Kramp Bungee cord diameter 10mm - 1200mm BC10101200KR
£3.32 excl.
£3.98 incl.
In stock
Expected to ship on Thursday 17 September
BPA000203102
Kramp Hexagon head bolt DIN933 M10x45 steel hot dip galvanized 8.8 9331045TV
£0.41 excl.
£0.49 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000399091

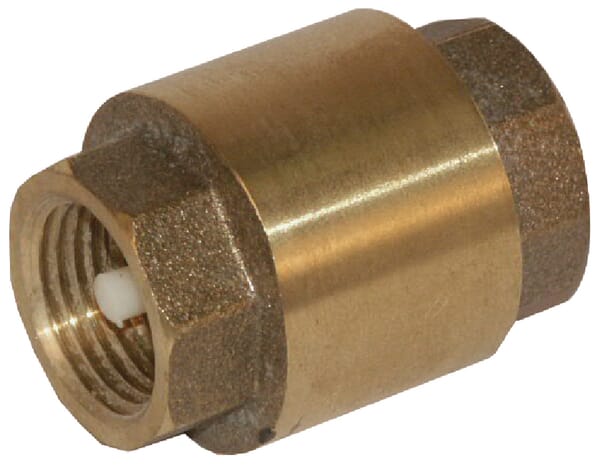

Kramp Check valve 3" WK51008
