£135.78
excl. VAT
£162.94 incl. VAT
£162.94
incl. VAT
£135.78 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

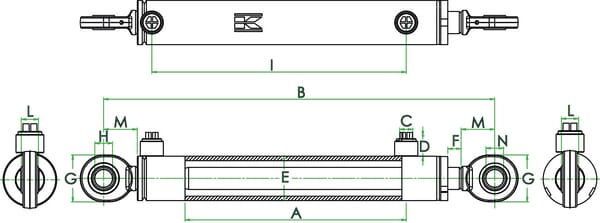

| Application | Universal |
|---|---|
| AStroke | 150 mm |
| BMin. mounting holes distance | 364 mm |
| COil connection inside diameter | 20 mm |
| Cylinder material | Steel ST52 |
| Cylinder material tolerance class code | H10 |
| DOil connection length | 17 mm |
| FCylinder end to mounting bush distance | 15 mm |
| GMounting bush outside diameter | 64 mm |
| Head nut material | Cast iron |
| HMounting hole diameter - cylinder connection | 25 mm |
| Inside diameter | 50 mm |
| IOil connections distance | 187.5 mm |
| Max. piston speed | 0.1 m/s |
| Max. working pressure | 250 BAR |
| Max. working temperature | 85 °C |
| Min. length | 364 mm |
| Min. working temperature | -25 °C |
| MMounting hole center to head end distance | 45 mm |
| Mounting diameter (width) - cylinder connection | 25 mm |
| Mounting diameter (width) - rod connection | 25 mm |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| NMounting hole diameter - rod connection | 25 mm |
| Nominal pressure | 200 BAR |
| Oil connection material | Steel |
| Piston diameter | 50 mm |
| Product details | Assembled double-acting KRAMP cylinder, with mounts, 250 bar series, Rod side: Weld-on rod end with spherical bearing, Base side: Weld-on base end with spherical bearing, Spraypainted with primer, Reusable mechanical cylinder head lock, Maximum radial load: 10% of the axial force, Maximum operating pressure depends on the maximum buckling load, The maximum buckling load can be found using the cylinder software, Interchangeable with other brands, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of the medium : ISO 4406 22/20/17 or NAS 9 |
| Pros | Fully assembled, ready to use, With mounts, Unique innovative construction with special piston locking, Simple assembly and disassembly |
| Rod diameter | 30 mm |
| Rod material | Steel 20MnV6 |
| Rod surface roughness | 0.2 µm |
| Rod surface treatment | Chromated |
| Type | Double acting |
| Unit | Each |
Logistics
| EAN | 8719493724998 |
|---|---|
| Unit of measure | EA |
| Weight | 4979 g |
| Dimensions | 430 × 77 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000115183
Kramp Blade holder Pöttinger 434133N
£12.82 excl.
£15.38 incl.
In stock
Expected to ship on Thursday 17 September
BPA000149519
Kramp Male 6" weld-on coupling 185mm 6130000Z
£23.02 excl.
£27.62 incl.
In stock
Expected to ship on Thursday 17 September
BPA000248302

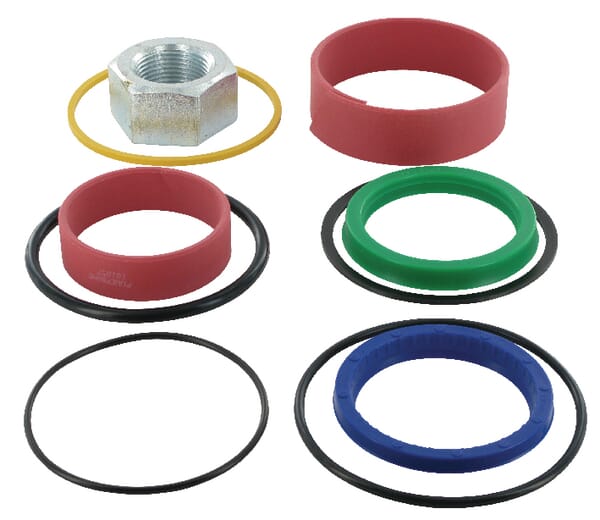

Kramp Seal kit CSKJCB99100164
£93.40 excl.
£112.08 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000192264

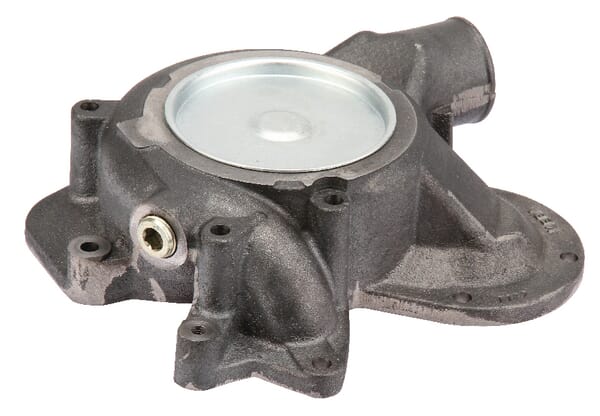

Kramp Water pump 894376863KR
£121.24 excl.
£145.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000142151
Kramp Rotary tine suitable for Kuhn 57502000KR
£8.13 excl.
£9.76 incl.
In stock
Expected to ship on Thursday 17 September
BPA000329944

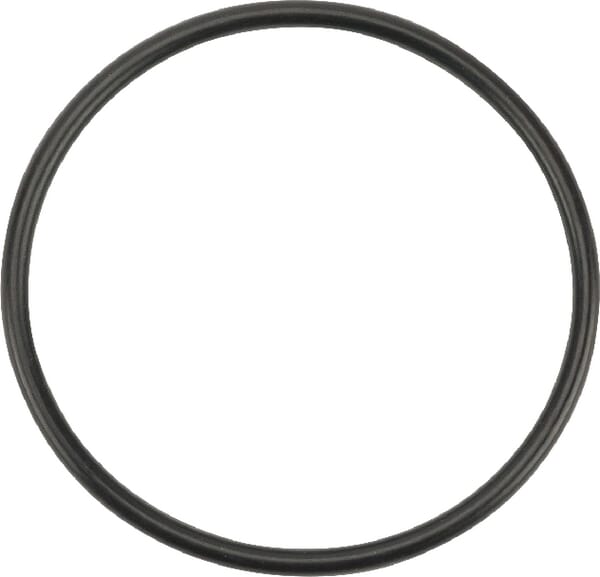

Kramp O-ring 48.9x2.62 90 shore 10x OR489026290P010
