£251.03
excl. VAT
£301.24 incl. VAT
£301.24
incl. VAT
£251.03 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

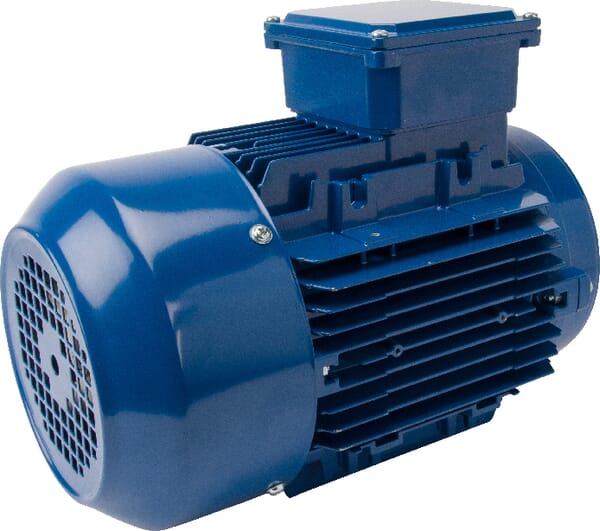

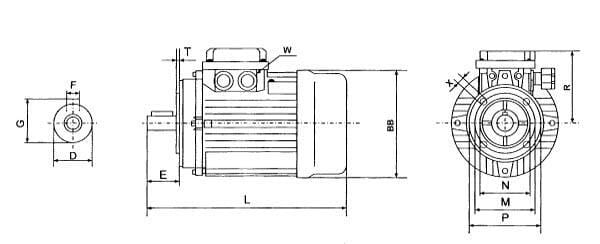

Product details
| BB | 176 mm |
|---|---|
| Frame size | 90 mm |
| In | 4.4 A |
| Key width | 8 mm |
| Length of centring | 3 mm |
| LTotal length | 350 mm |
| Moments of inertia (kgm²) | 0.0026 kg·m² |
| MPitch circle diameter | 115 mm |
| N1 | 2910 r/min |
| NDiameter of centring | 95 mm |
| Noise level | 72 dB(A) |
| PDiameter lead in edge | 140 mm |
| Phase ~ | 3 |
| PN | 2.2 kW |
| Power factor cos phi 100% | 0.84 |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Torque Tmax/Tn | 3.7 N·m |
| Torque Ts/Tn | 3.3 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 16.3 kg |
| XDiameter mounting holes | M8 mm |
Logistics
| EAN | 8716106886074 |
|---|---|
| Unit of measure | EA |
| Weight | 16749 g |
| Dimensions | 370 × 240 × 375 mm |
| Dangerous goods | No |
You might also like
BPA000329504

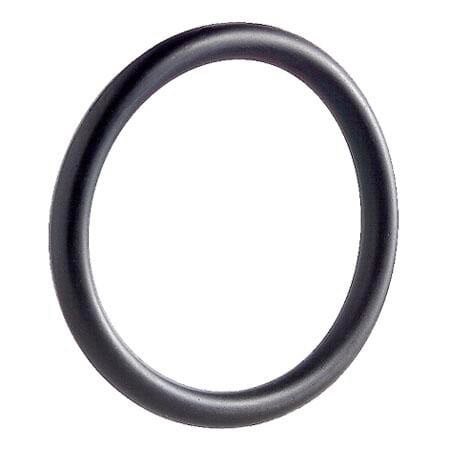

Kramp O-ring 208.92x5.33mm 70 shore OR20892533P001
£2.60 excl.
£3.12 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000363924

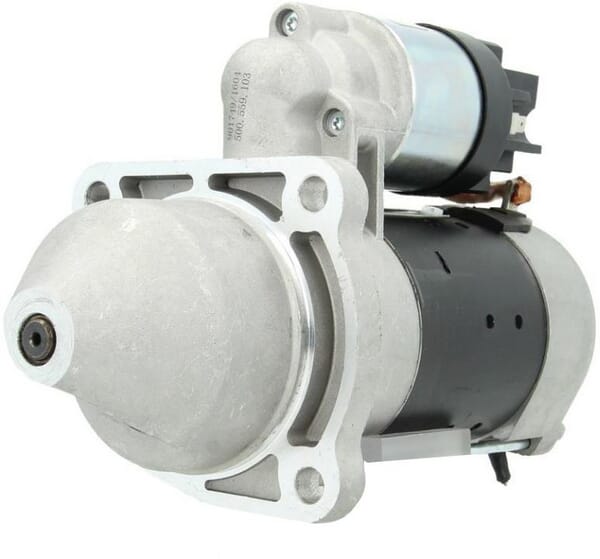

Kramp Starter 12V 2.6kW STA2167262
£194.15 excl.
£232.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000292127

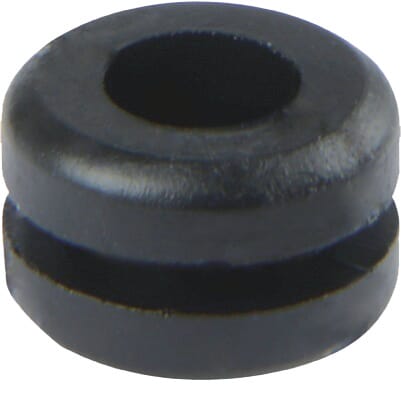

Kramp Cable grommet, 4.5x6x1mm 2 sides open KB2204
£2.31 excl.
£2.77 incl.
In stock
Expected to ship on Friday 18 September
BPA000275187

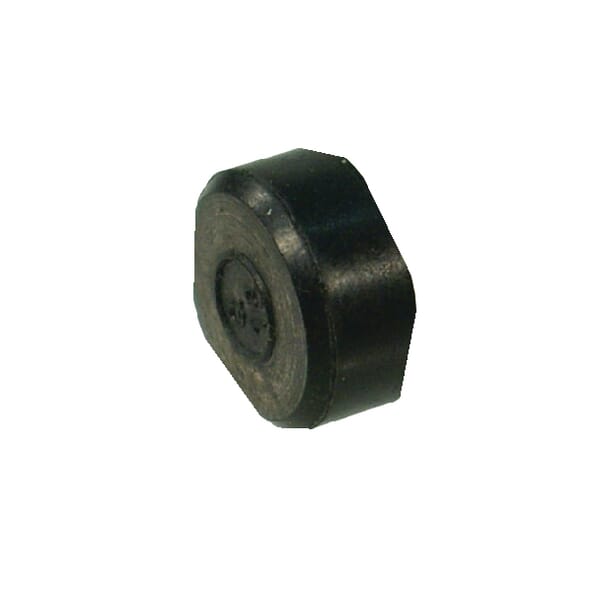

Kramp Vitonvalve 1/2X3/8 G114
£5.75 excl.
£6.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000270176

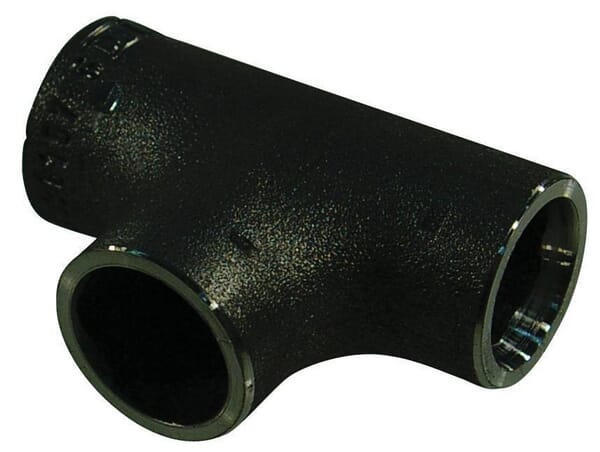

Kramp Welding T piece black 1" FG1311B
£26.66 excl.
£31.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000292123

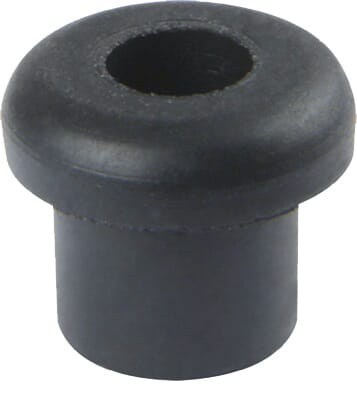

Kramp Cable grommet, 6x10x8mm 1 side open KB2106
