£770.04
excl. VAT
£924.05 incl. VAT
£924.05
incl. VAT
£770.04 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

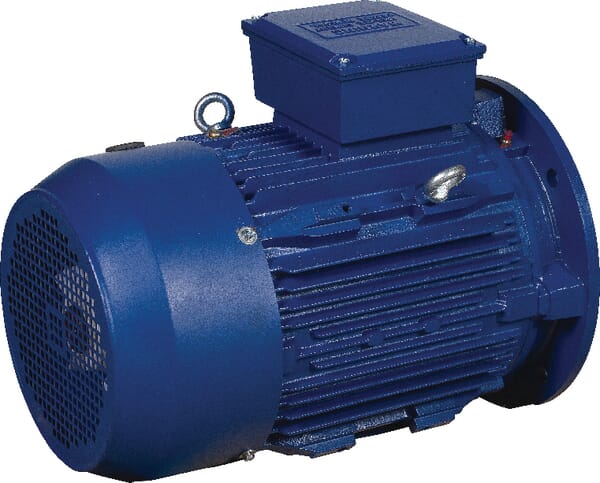

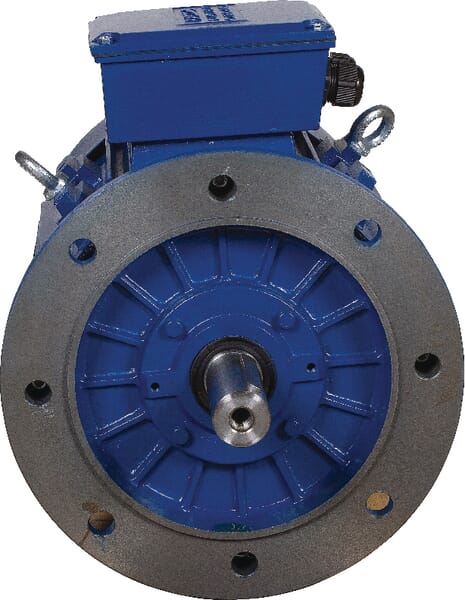

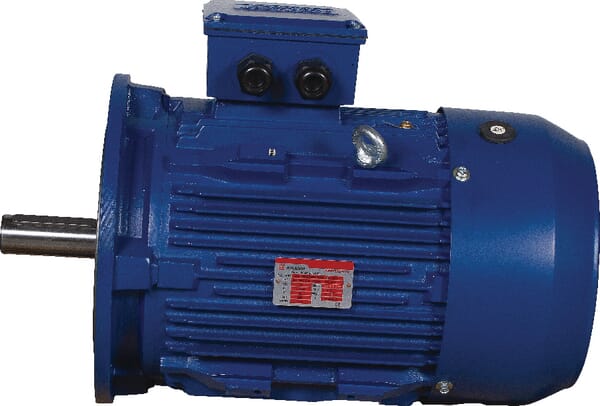

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

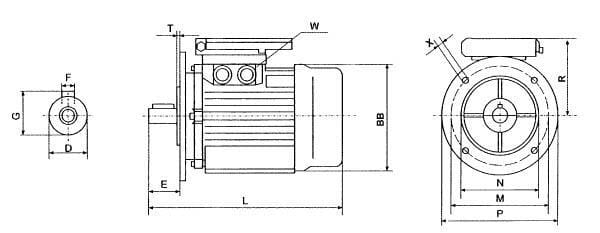

| BBDiameter fan cover | 259 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.89 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| GHeight shaft with key | 33 mm |
| In | 10 A |
| Key width | 10 mm |
| Length of centring | 4 mm |
| LTotal length | 467 mm |
| M (Nm) | 18.08 N·m |
| Moments of inertia (kgm²) | 0.0152 kg·m² |
| MPitch circle diameter | 265 mm |
| N1 | 2905 r/min |
| NDiameter of centring | 230 mm |
| Noise level | 80 dB(A) |
| Phase ~ | 3 |
| PN | 5.5 kW |
| POutside diameter flange | 300 mm |
| Power factor cos phi 100% | 0.89 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 200 mm |
| Shaft length | 80 mm |
| Swivel | M25 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 4 mm |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 43.4 kg |
| XDiameter mounting holes | 15 mm |
Logistics
| EAN | 8716106888320 |
|---|---|
| Unit of measure | EA |
| Weight | 46500 g |
| Dimensions | 510 × 370 × 320 mm |
| Dangerous goods | No |
You might also like
BPA000334366
Kramp O-ring 122x3mm 70 shore 10x OR1223P010
£8.92 excl.
£10.70 incl.
In stock
Expected to ship on Thursday 17 September
BPA000270910

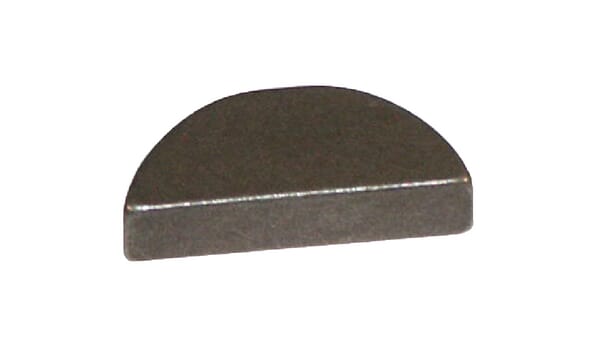

Kramp Woodruff key 3/32" x 5/8" FGP011593
£0.83 excl.
£1.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000249982
Kramp Cylinder head DS25 D63-28 Seal DS2906313028VM
£31.64 excl.
£37.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000305760

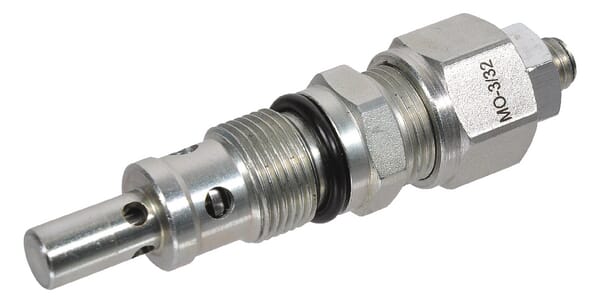

Kramp Cartridge P 100-320 bar KRMRF903C04
£58.93 excl.
£70.72 incl.
In stock
Expected to ship on Thursday 17 September
BPA000085306

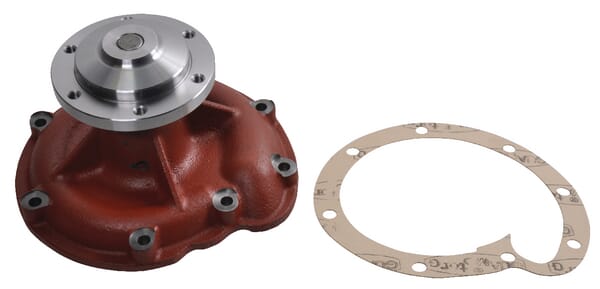

Kramp Water pump suitable for CI 3132741R93KR
£60.88 excl.
£73.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000330152

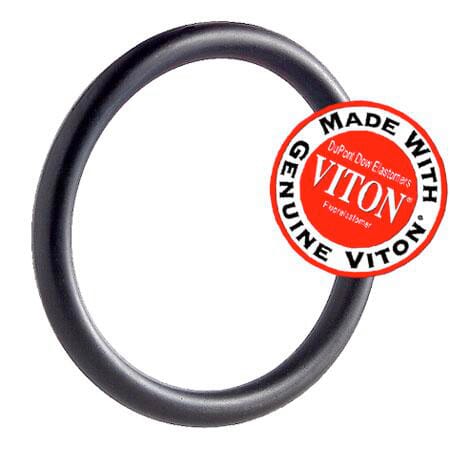

Kramp O-ring 54x5mm 75 shore Viton OR545VP001
