About this product

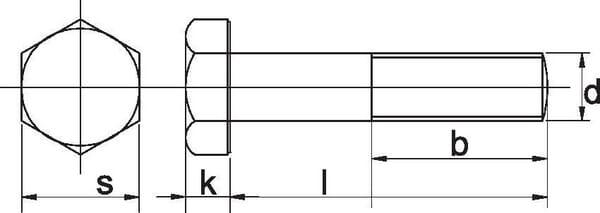

A DIN 931 / ISO 4014 hexagon head bolt in M8 × 100 mm, manufactured from grade 10.9 steel with zinc-plated surface treatment. The bolt is partially threaded with 22 mm of thread and a 1.25 mm pitch. The hexagon head measures 13.0 mm across flats and stands 5.3 mm high. Supplied as a pack of 25 pieces. Each individual bolt weighs approximately 44 g; a pack of 100 weighs 4.37 kg. The product carries EAN 5700038147047 for inventory matching.
Product details
| bThread length | 22 mm |
|---|---|
| Content in sale unit | 25 pcs |
| DIN standard | 931 |
| Head shape | Hexagon |
| ISO standard | 4014 |
| kHead height | 5.3 mm |
| lLength | 100 mm |
| Long description | Hexagon shoulder bolt, partially threaded, length is measured below the head. ISO 4014 supersedes DIN 931: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Steel |
| Qty. Rounding | 25 |
| Quality | 10.9 (steel) |
| Surface treatment | Zinc-plated |
| Thread diameter | M8 |
| Thread pitch | 1.25 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 4.37 kg |
| Wrench/spanner size | 13.0 mm |
Logistics
| EAN | 5700038147047 |
|---|---|
| Unit of measure | EA |
| Weight | 44 g |
| Dimensions | 109 × 16 × 16 mm |
| Dangerous goods | No |
You might also like
BPA000304855
Kramp Trousers 35-39"/L32", olive Kramp 4 Way Stretch KW202545002098
£73.09 excl.
£87.71 incl.
In stock
Expected to ship on Friday 18 September
BPA000269151
Kramp Elbow 45° galv. 2xF 1" FG411
£3.77 excl.
£4.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000006257
Kramp Ignition module 00004001300KR
£27.97 excl.
£33.56 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000231227

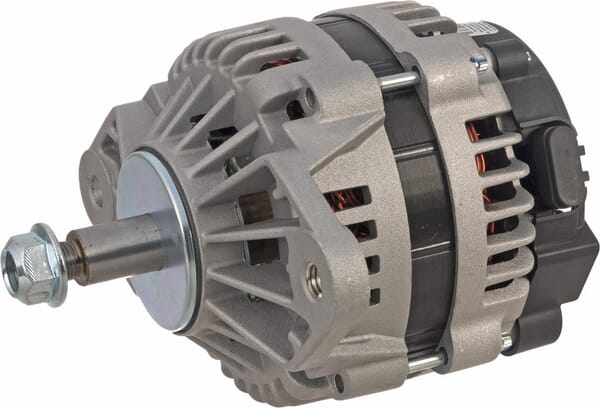

Kramp Alternator 28V 70A ALT2625107
£193.17 excl.
£231.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000334032
Kramp O-ring 10.5x2.7mm 90 shore 10x OR105027090P010
£2.16 excl.
£2.59 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000013456

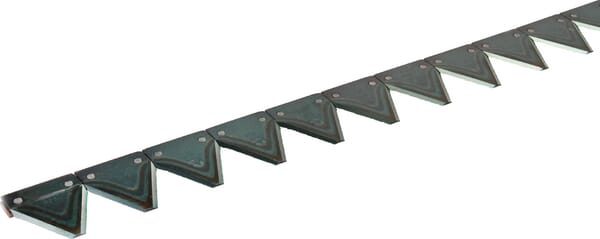

Kramp Cutterbar, 24 fingers Grib/Sa 017182KR
