£172.78
excl. VAT
£207.34 incl. VAT
£207.34
incl. VAT
£172.78 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September

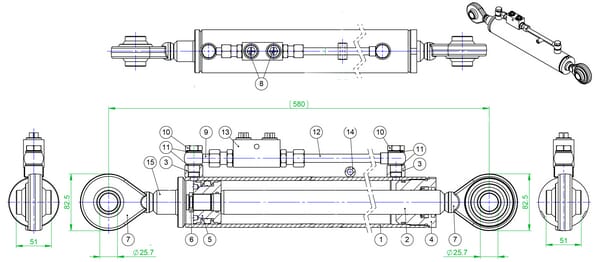

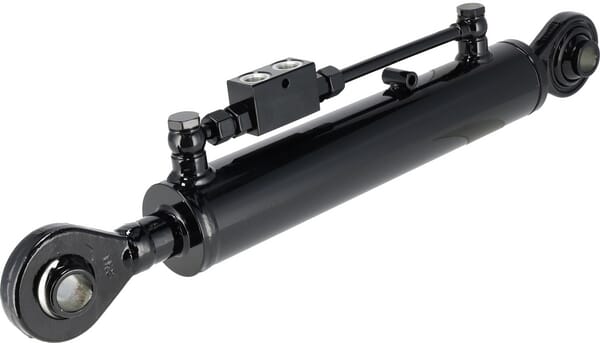

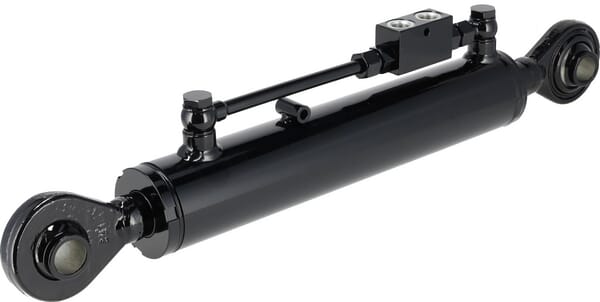

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 63 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve |
| Max. length | 862 mm |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 4.4 t |
| Max. push capacity at 200 bar | 6.3 t |
| Max. working pressure | 250 BAR |
| Min. length | 580 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.7 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| Nominal pressure | 200 BAR |
| Oil connections distance | 321.5 mm |
| Outside diameter | 73 mm |
| Product details | Category 2 three-point connection, Type TENNN is without controlled check valve, Type TENNNE is without controlled check valve, with an extended rod end on the tractor side, Type TEVNN is with controlled check valve, Type TEVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TEVNNE top link with an extended rod end |
| Pros | Easy reading of the setting, Top link cylinder maintains its position, Extended rod end |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 282 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719493237597 |
|---|---|
| Unit of measure | EA |
| Weight | 11808 g |
| Dimensions | 809 × 180 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000137816
Kramp Broom, bassine, 45cm with handle 150cm 5304561HKR
£26.84 excl.
£32.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000321916
Kramp Bearing NWB09266
£56.77 excl.
£68.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000281618

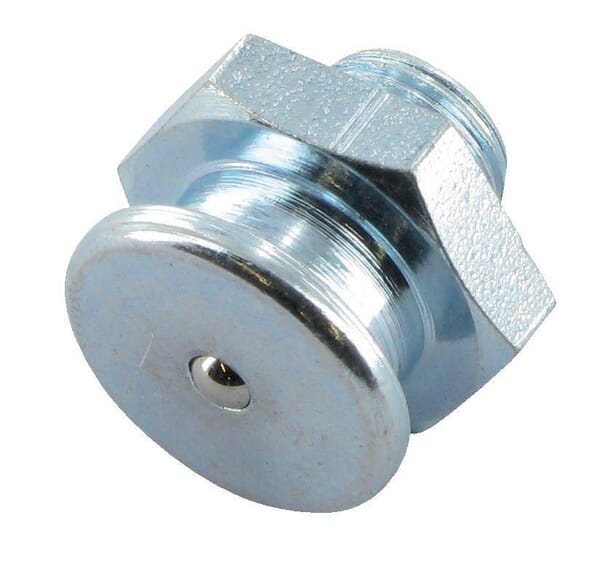

Kramp Grease nipple M10x1Short16mm GNF10118016
