£110.67
excl. VAT
£132.80 incl. VAT
£132.80
incl. VAT
£110.67 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

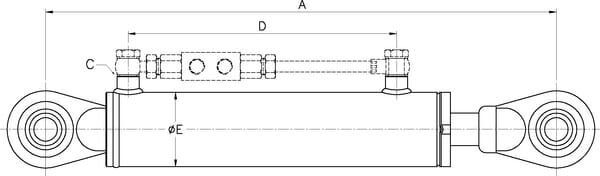

| AMax. length | 440 mm |
|---|---|
| CMounting thread diameter - cylinder connection | 3/8 Inch |
| Colour | Black |
| Cylinder bore diameter | 50 mm |
| Cylinder material | Steel ST52 |
| DRod diameter | 30 mm |
| EOutside diameter | 60 mm |
| Includes | Cylinder |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 2.6 t |
| Max. push capacity at 200 bar | 4 t |
| Max. working pressure | 250 BAR |
| Min. length | 340 mm |
| Mounting hole diameter - cylinder connection | 19.4 mm |
| Mounting hole diameter - rod connection | 19.4 mm |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Bearing |
| Nominal pressure | 200 BAR |
| Oil connections distance | 137 mm |
| Product details | Category 1 and 2 three-point connection, Type TENNN is without controlled check valve, Type TENNNE is without controlled check valve, with an extended rod end on the tractor side, Type TEVNN is with controlled check valve, Type TEVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TEVNNE top link with an extended rod end |
| Pros | Easy reading of the setting |
| RAL colour code | 9005 |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 100 mm |
| Top link category - cylinder connection | 1 |
| Top link category - rod connection | 1 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
DC253050000

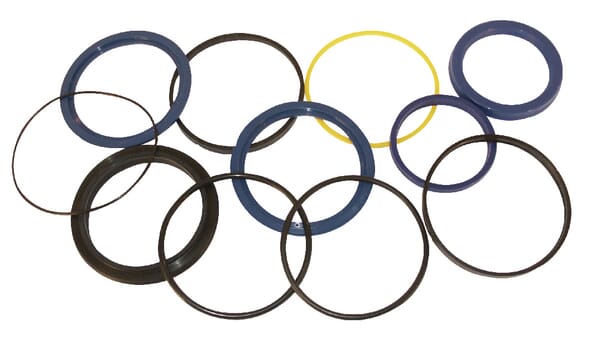

Kramp Seal kit 250 D 30-50 upto 05/2009 DC253050000
£23.05 excl.
£27.66 incl.
DS253050000
Kramp Seal kit Cronus-25 D30 - 50 DS253050000
£20.49 excl.
£24.59 incl.
TOP9H0900
Kramp Hose toplink L=900+SKPM12C08 TOP9H0900
£30.72 excl.
£36.87 incl.
VRDECIL02

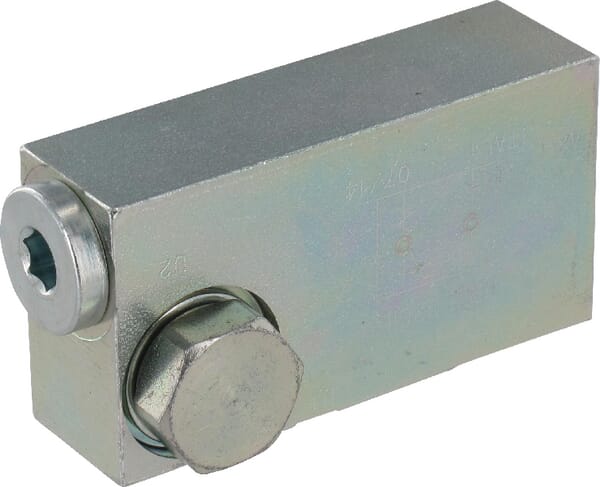

MTC Regular check valve VRDE CIL 0 VRDECIL02
£39.08 excl.
£46.90 incl.
Logistics
| EAN | 8719607232913 |
|---|---|
| Unit of measure | EA |
| Weight | 4385 g |
| Dimensions | 547 × 96 × 93 mm |
| Dangerous goods | No |
You might also like
BPA000167065

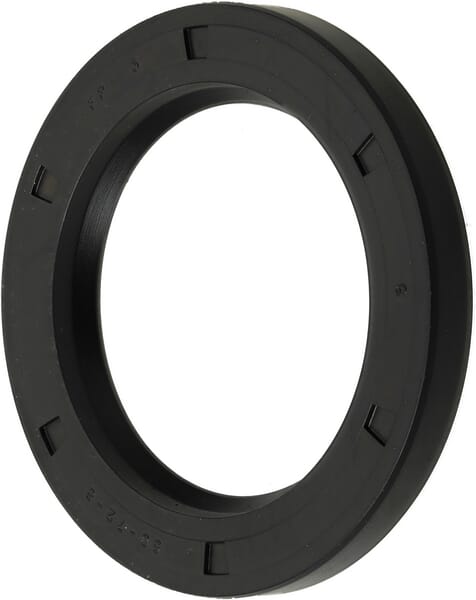

Kramp Oil seal 72x100x12mm type:CC DIN 3760 1x 7210012CCP001
£3.89 excl.
£4.67 incl.
In stock
Expected to ship on Friday 18 September
BPA000152118

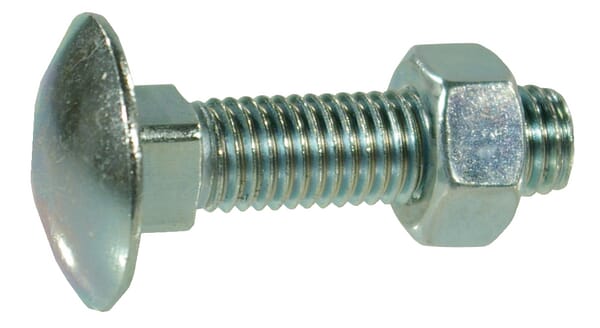

Kramp Coach bolt and nut DIN603 M10x60 steel zinc-plated 4.6 6031060
£0.30 excl.
£0.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000006976

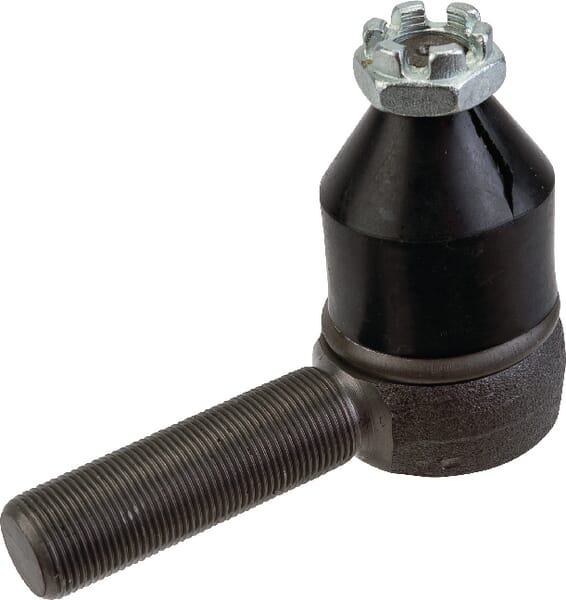

Kramp Ball Joint 0001770410KR
£58.43 excl.
£70.12 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000322140
Kramp Bearing NWB09519
£55.70 excl.
£66.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000398913

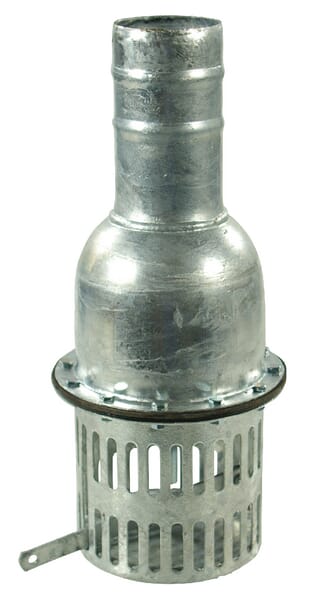

Kramp Draw filter+valve 5" WK1605
