£234.34
excl. VAT
£281.21 incl. VAT
£281.21
incl. VAT
£234.34 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September

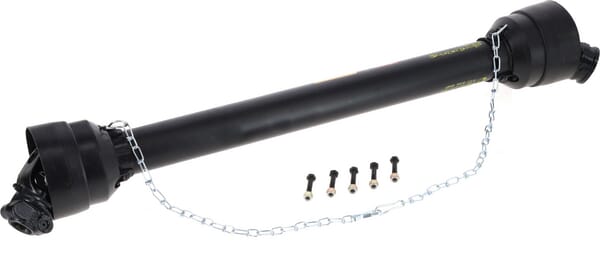

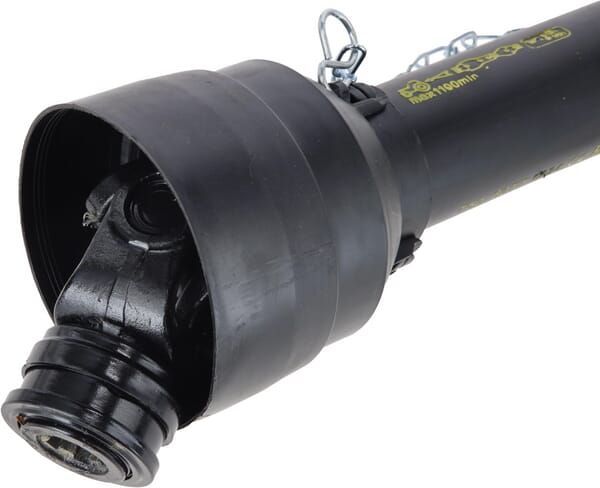

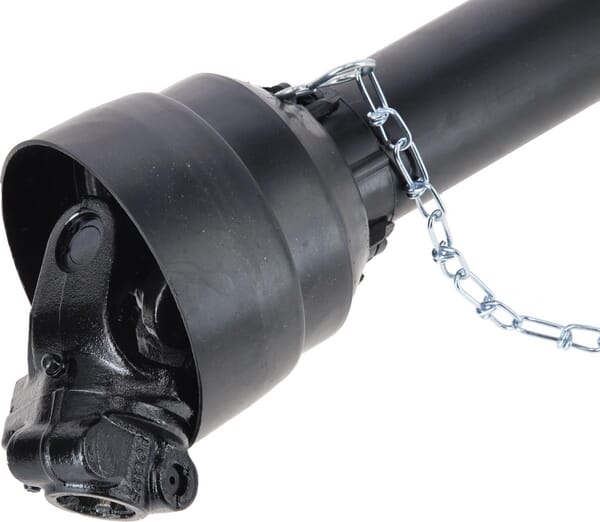

Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 80 mm |
| Cross joint length by tractor side | 80 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2100 N·m |
| Max dynamic torque | 1050 N·m |
| Outer tube large outside diameter | 51.6 mm |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 54 kW |
| Power 540 rpm | 35 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for log splitters, manure spreaders, mowers, harvesting machenery etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 35 kW - 620 Nm, Max. dynamic capacity 1000 rpm - 54 kW - 520 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T50 |
| Unit | Each |
Logistics
| EAN | 8719493249453 |
|---|---|
| Unit of measure | EA |
| Weight | 17000 g |
| Dimensions | 1260 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000152697
Kramp Bushing Stoll 608010N
£6.77 excl.
£8.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151809

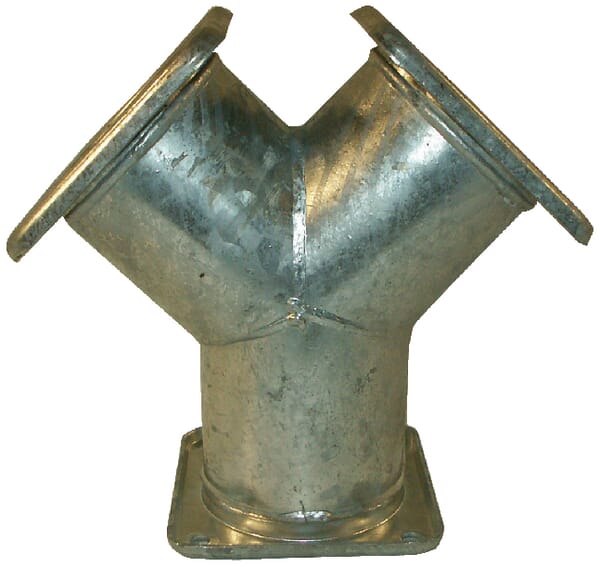

Kramp Y piece 6"-6"-6" 6370000Z
£119.52 excl.
£143.42 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000341469

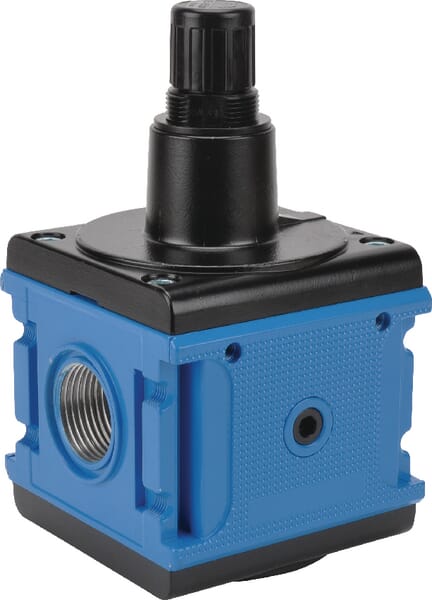

Kramp Regulator 1" 0,5-16 bar PR5K10516
£232.74 excl.
£279.29 incl.
In stock
Expected to ship on Thursday 17 September
BPA000381213

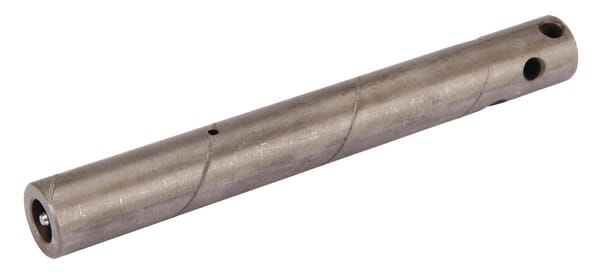

Kramp Pin 40x200mm UNSGGS40200CR
£99.53 excl.
£119.44 incl.
In stock
Expected to ship on Thursday 17 September
BPA000323388
Kramp Bearing NWB08697
£44.11 excl.
£52.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000004986

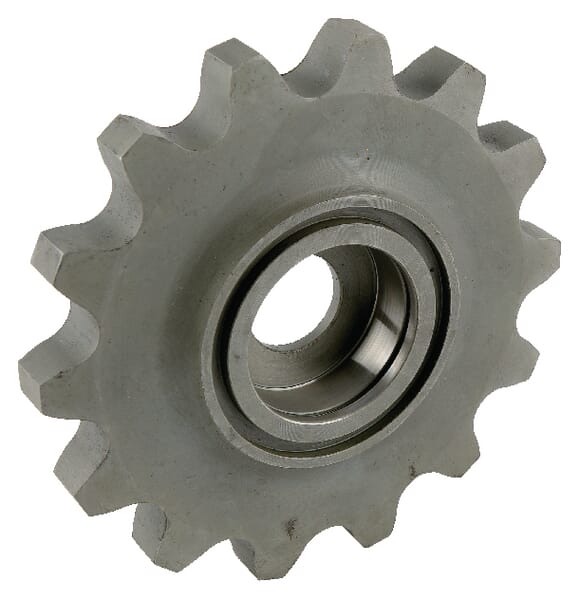

Kramp Gear 0004963221N
