£4.69
excl. VAT
£5.63 incl. VAT
£5.63
incl. VAT
£4.69 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

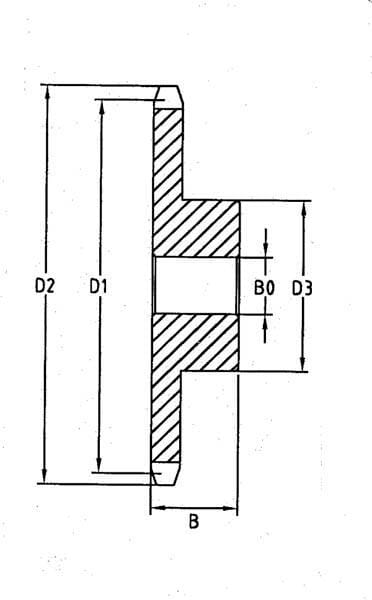

| B0Bore diameter | 12 mm |
|---|---|
| Benefits | Longer service life of chain and sprocket |
| Bore | Yes |
| BWidth | 28 mm |
| Chain size code | 08 B-1 |
| D1Pitch diameter | 65.1 mm |
| D2Outside diameter | 69.9 mm |
| D3Hub diameter | 50 mm |
| Details | Induction-hardened teeth (HRc45-55) |
| Hub type | Hub one side |
| Material | Steel C45 |
| Number of teeth | 16 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended maximum bore: D3 x 0.6, For chain type 08B1 |
| Teeth hardness range | HRC 45-55 |
| Teeth width | 7.2 mm |
| Type | Simplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 458 g |
| Dimensions | 70 × 70 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000260746
Kramp Broom handle 48"x15/16" ES11486Z
£2.64 excl.
£3.17 incl.
In stock
Expected to ship on Thursday 17 September
BPA000297428
Kramp Power harrow tine RH, length 300mm, suitable for Falc, KE0392
£19.60 excl.
£23.52 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000258587

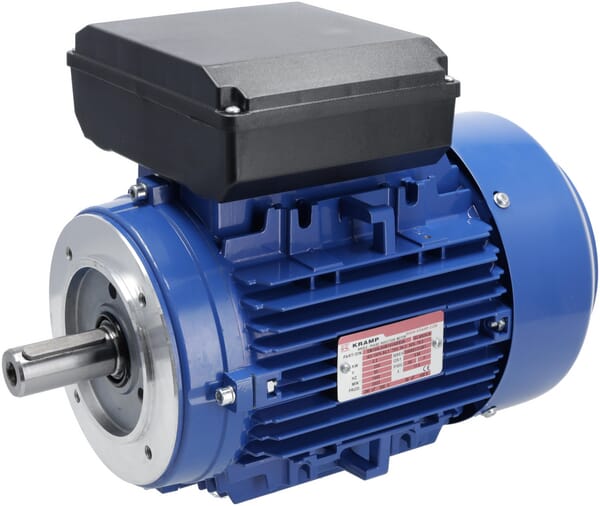

Kramp Electric motor 2.2 kW EM100LA4B141A0IE2A
£393.01 excl.
£471.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000357923
Kramp Sprocket Simplex 13 teeth 3/4" chain 12 B-1 bore 30 mm SE341330
£25.12 excl.
£30.14 incl.
In stock
Expected to ship on Thursday 17 September
BPA000198816
Kramp Hexagon head bolt DIN931 M8x85 steel 8.8 931885B
£0.51 excl.
£0.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000142863

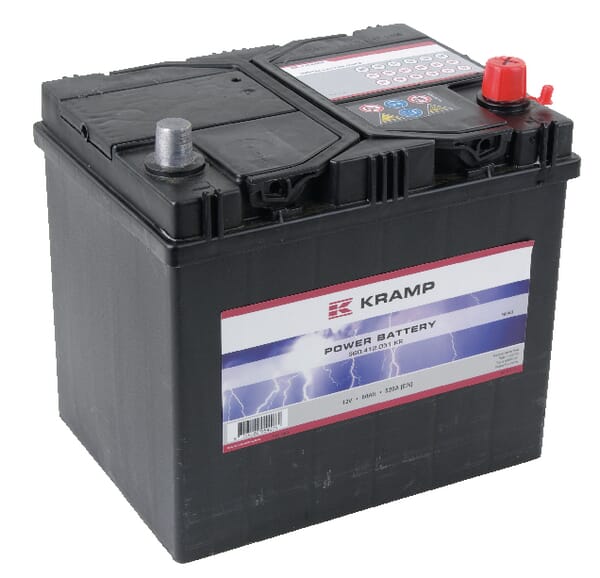

Kramp Battery 12V 60Ah 510A 560412051KR
