£40.88
excl. VAT
£49.06 incl. VAT
£49.06
incl. VAT
£40.88 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 25 mm |
| Hub diameter | 92 mm |
| Hub width | 20 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 165.5 mm |
| PPitch diameter | 160 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245523 |
|---|---|
| Unit of measure | EA |
| Weight | 1841 g |
| Dimensions | 165 × 165 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000338237

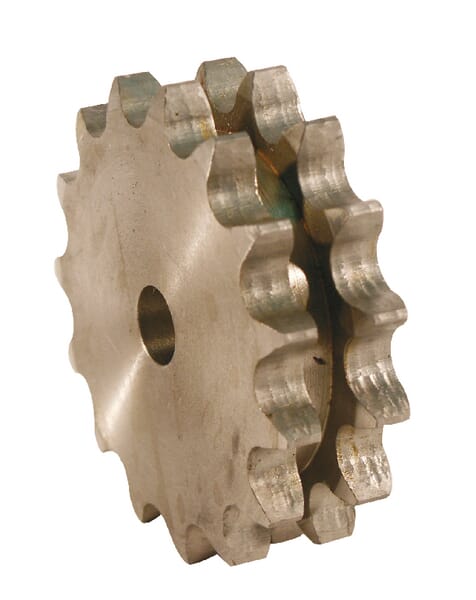

Kramp Platewheel Duplex 40 teeth 3/8" chain 06 B-2 PD3840
£11.05 excl.
£13.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000361040
Kramp Ball end SHP326KR
£34.05 excl.
£40.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000331038
Kramp O-ring 82.14x3.53mm 70 shore 10x OR8214353P010
£4.08 excl.
£4.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000177523

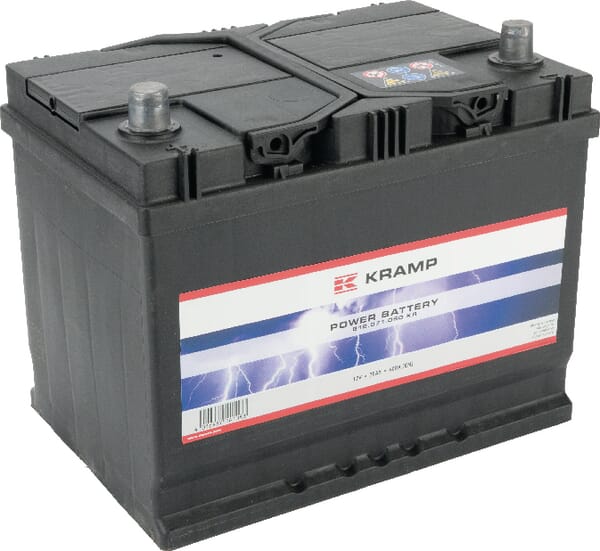

Kramp Leisure battery 12V 70Ah(C20)/60Ah(C5) 600A 812071000KR
