£52.59
excl. VAT
£63.11 incl. VAT
£63.11
incl. VAT
£52.59 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Bore diameter | 15 mm |
| BWorking width | 63 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| dMax. bore diameter | 32 mm |
| Hub diameter | 55 mm |
| LHub width | 67 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 103 mm |
| PPitch diameter | 95 mm |
| Pulley type | 2 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486233827 |
|---|---|
| Unit of measure | EA |
| Weight | 2469 g |
| Dimensions | 100 × 100 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000052019
Kramp Domed cap nut nylon M6 15876N
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Thursday 17 September
BPA000321922
Kramp Bearing NWB09275
£44.72 excl.
£53.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000376118

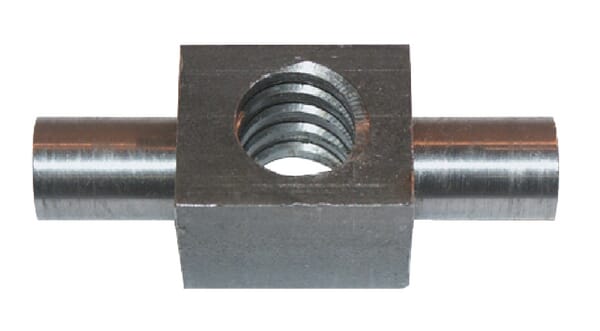

Kramp Threaded Square Trapez. Nut 22mm TS22221
£21.92 excl.
£26.30 incl.
In stock
Expected to ship on Thursday 17 September
BPA000308692
Kramp Beacon LED, 10-110V, bolt on LA20061
£19.00 excl.
£22.80 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000043685

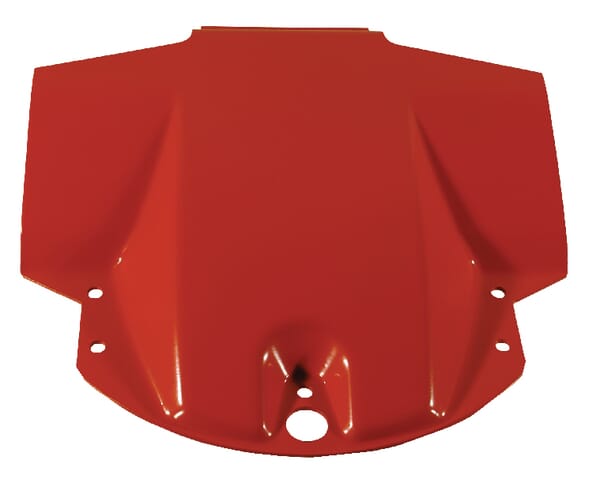

Kramp Glide Disc 135659N
